Torque Converter Clutch Solenoid: Testing and Inspection

INSPECTION
1. Disconnect the Torque Converter Clutch (TCC) solenoid connector.

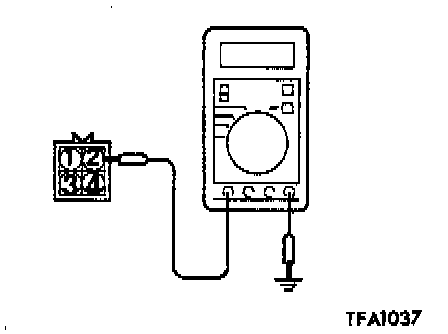

2. Measure the resistance between the TCC solenoid side connector terminal 2 and the body ground.
Standard value: approximately 13 ohms [at 20° C (68° F)]
3. If the resistance is outside the standard value, replace the solenoid valve assembly.
