Ignition Switch: Service and Repair

Ignition Switch - Removal And Installation:

CAUTION: SRS
Before removal of Air Bag Module and Clock Spring, refer to the following sections : SRS Service Precautions, Air Bag Module and Clock Spring.

Removal

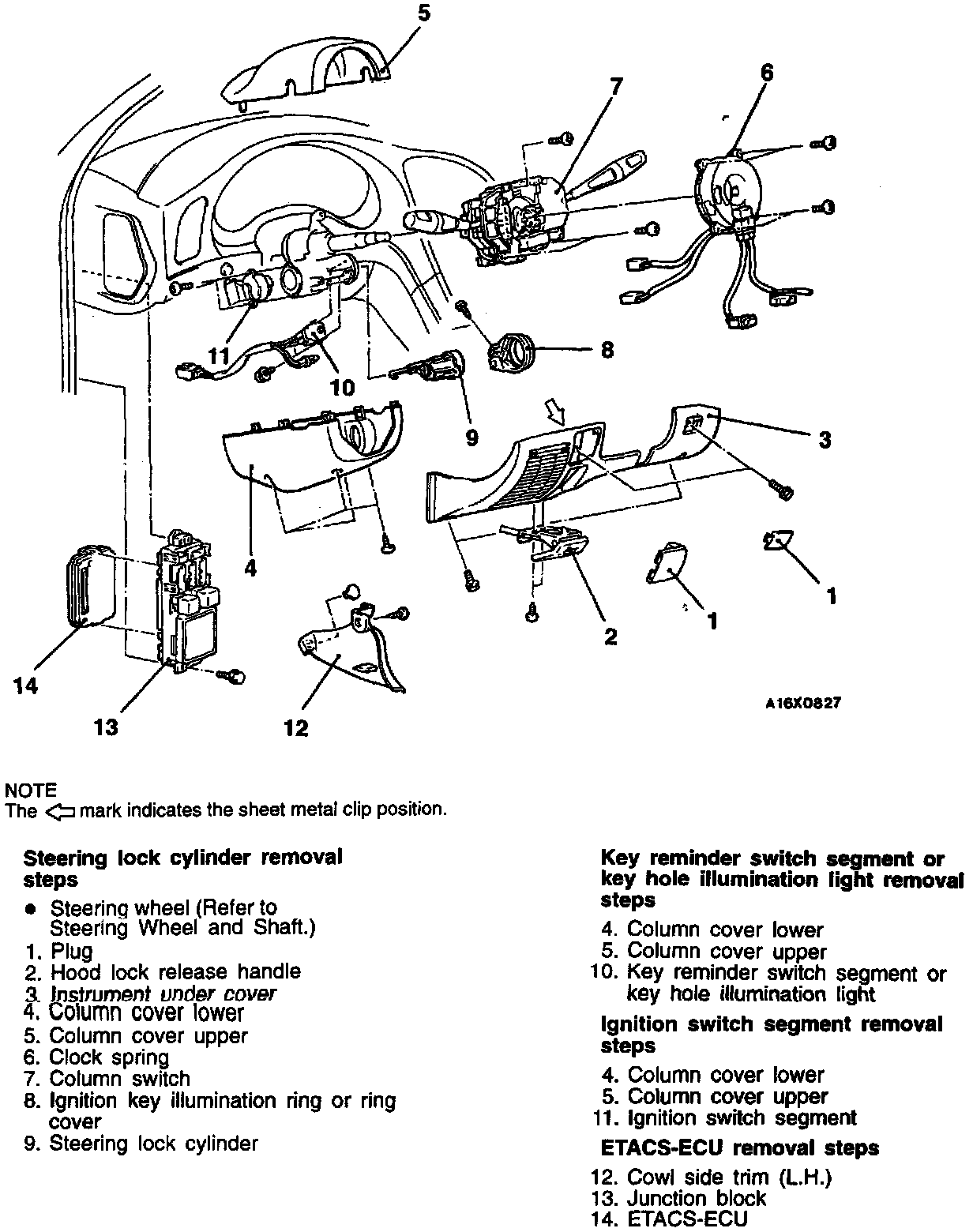

To remove follow the steps listed in the image and note the following:

Steering Lock Cylinder Removal:

Step 9: Steering Lock Cylinder Removal
1. Insert the key in the steering lock cylinder and turn it to the "ACC" position.
2. Using a cross-tip (+) screwdriver (small) or a similar tool, push the lock pin of the steering lock cylinder inward and then pull the steering lock cylinder towards you.

Installation
To install reverse the steps listed in the image.
