Camshaft Position Sensor: Service and Repair

Camshaft And Crankshaft Position Sensors - Removal And Installation:





Removal

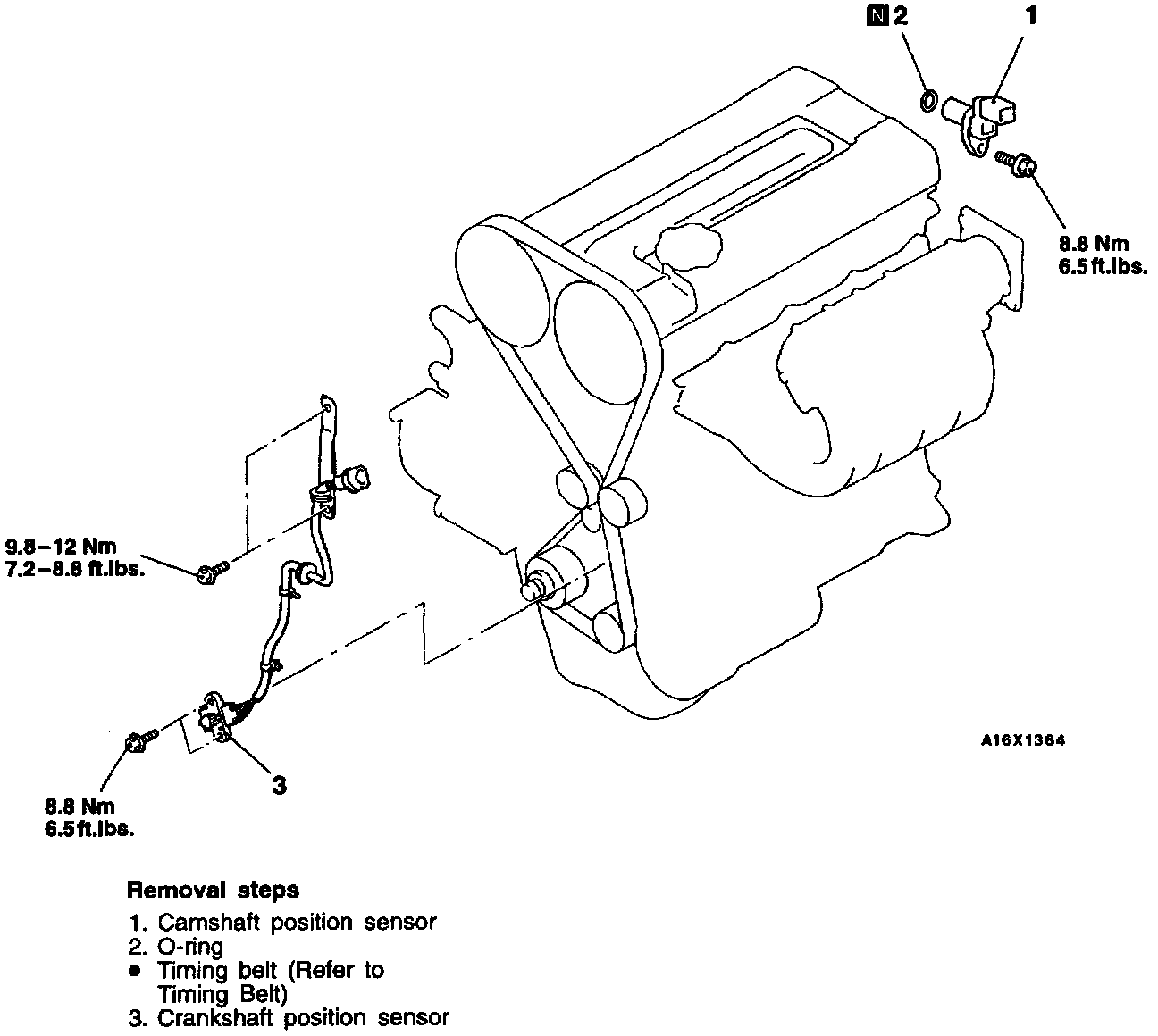

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image.
