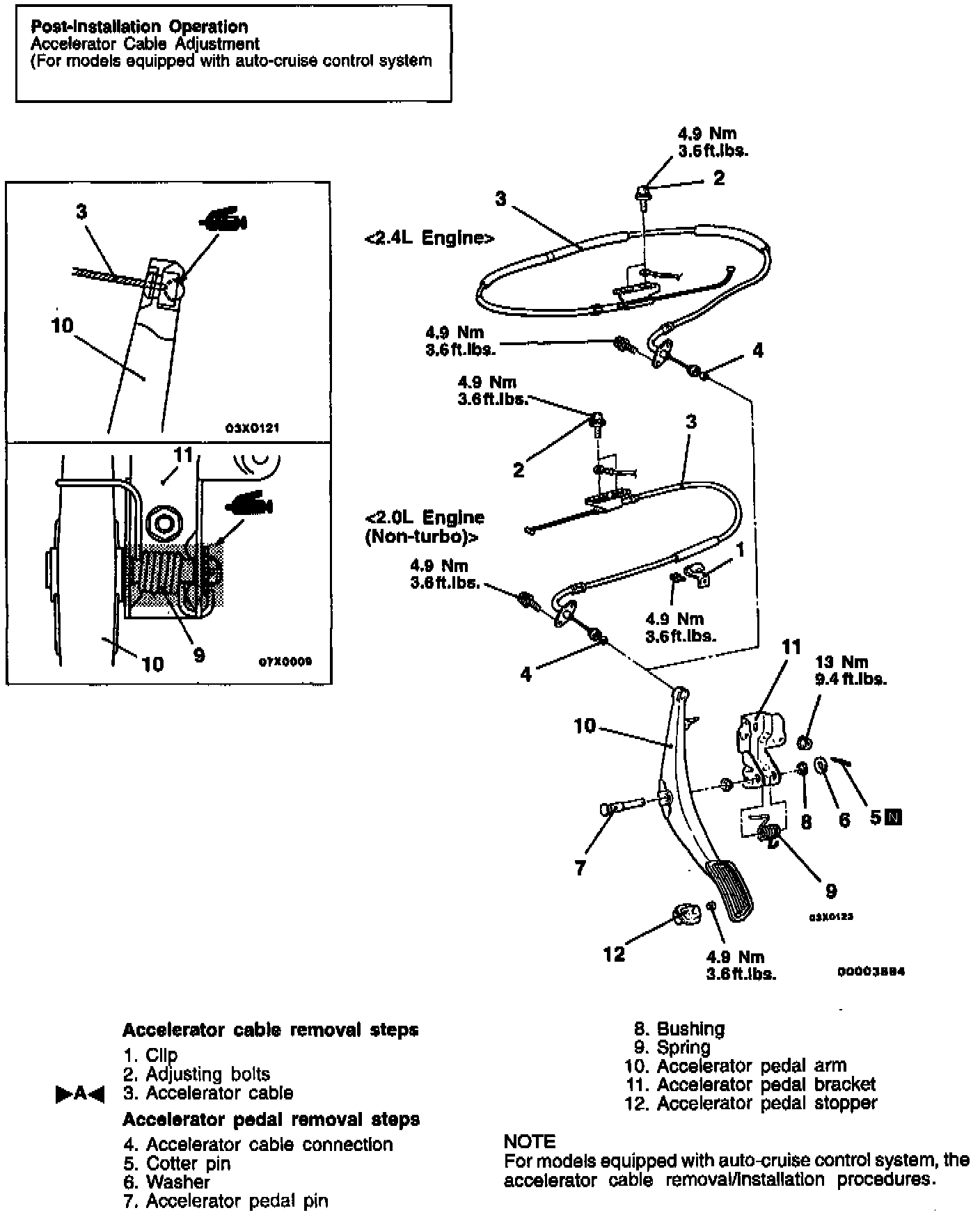

Throttle Cable/Linkage: Service and Repair




Removal And Installation

NOTE: For models equipped with auto-cruise control system, referred to Cruise Control.
