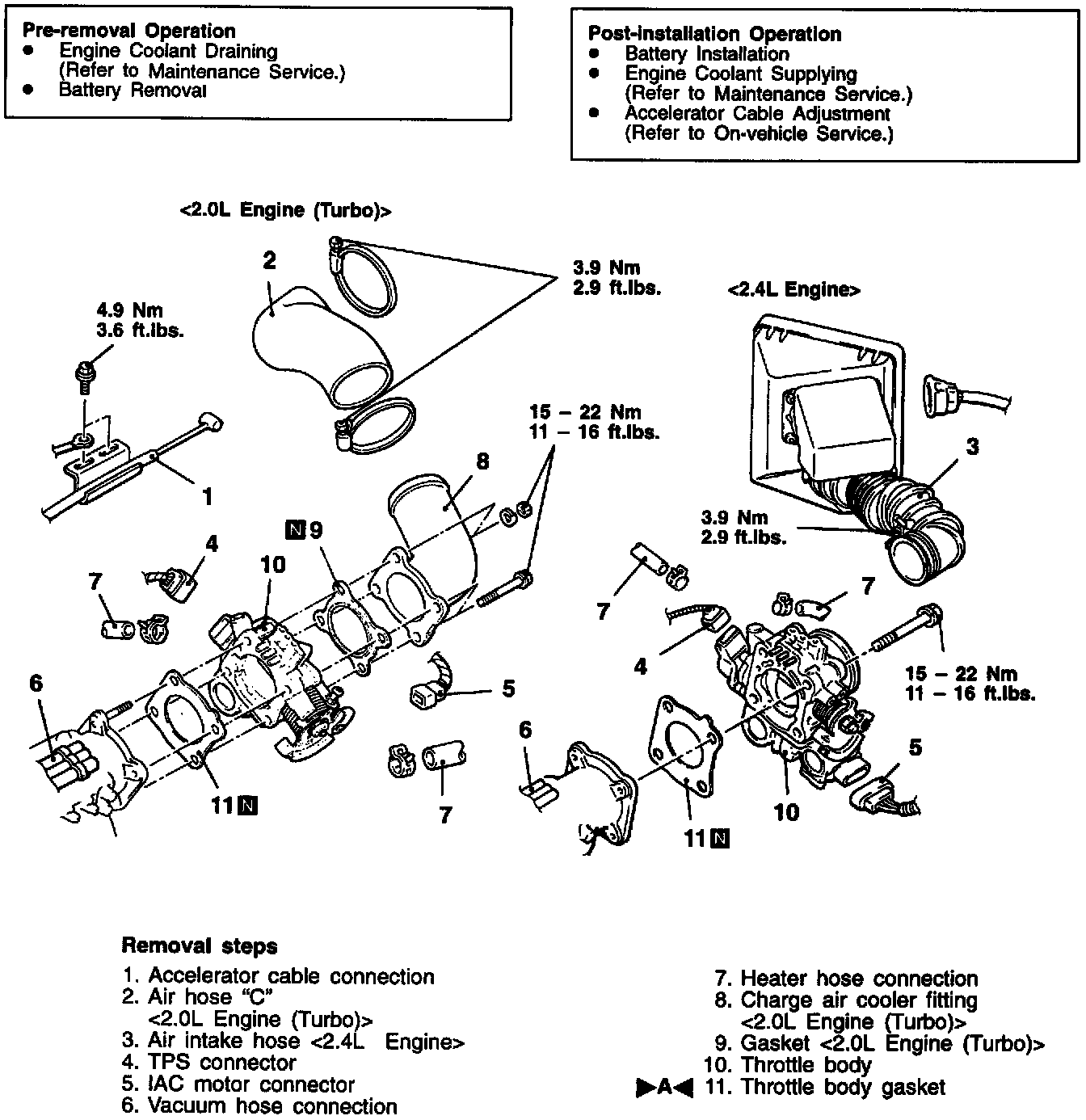

Removal and Installation

REMOVAL AND INSTALLATION




INSTALLATION SERVICE POINT

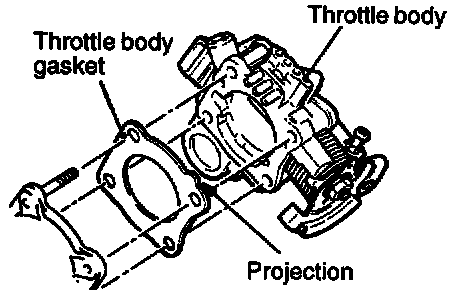

>A< THROTTLE BODY GASKET INSTALLATION install the throttle body gasket so that the projection is where shown in the illustration.

CAUTION: Poor idling etc. may result If the throttle body gasket is installed Incorrectly.




DISASSEMBLY AND REASSEMBLY

DISASSEMBLY SERVICE POINTS
THROTTLE POSITION SENSOR AND IDLE AIR CONTROL MOTOR REMOVAL
1. Do not disassemble the sensor and motor.
2. Do not immerse solvent to clean the sensor and motor.
Clean then with shop towel.

THROTTLE BODY REMOVAL
1. Do not remove the throttle valve.
2. Check if the vacuum port or passage is clogged. Use compressed air to clean the vacuum passage.

REASSEMBLY SERVICE POINT

>A< THROTTLE POSITION SENSOR INSTALLATION

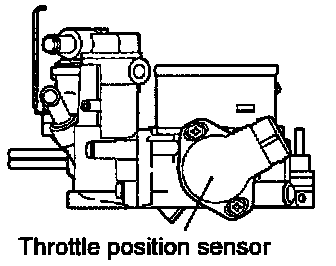

(1) Install the throttle position sensor to the throttle body as shown in the diagram.

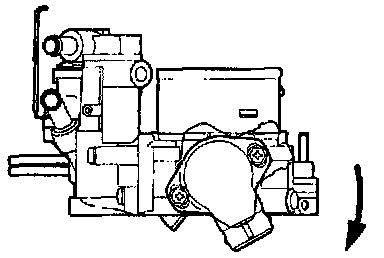

(2) Turn throttle position sensor 900 clockwise to set it, and tighten screws.

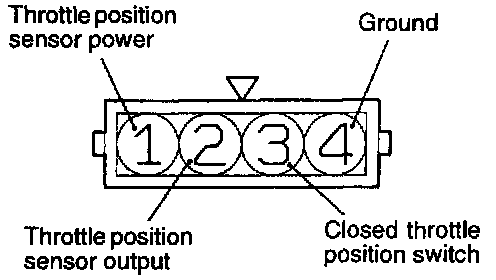

(3) Check for continuity between terminals No. 3 (closed throttle position switch) and No. 4 (ground).
If there is not continuity with the throttle valve fully closed, turn the throttle position sensor counterclockwise, and then check again.
