Fuel Filter: Service and Repair

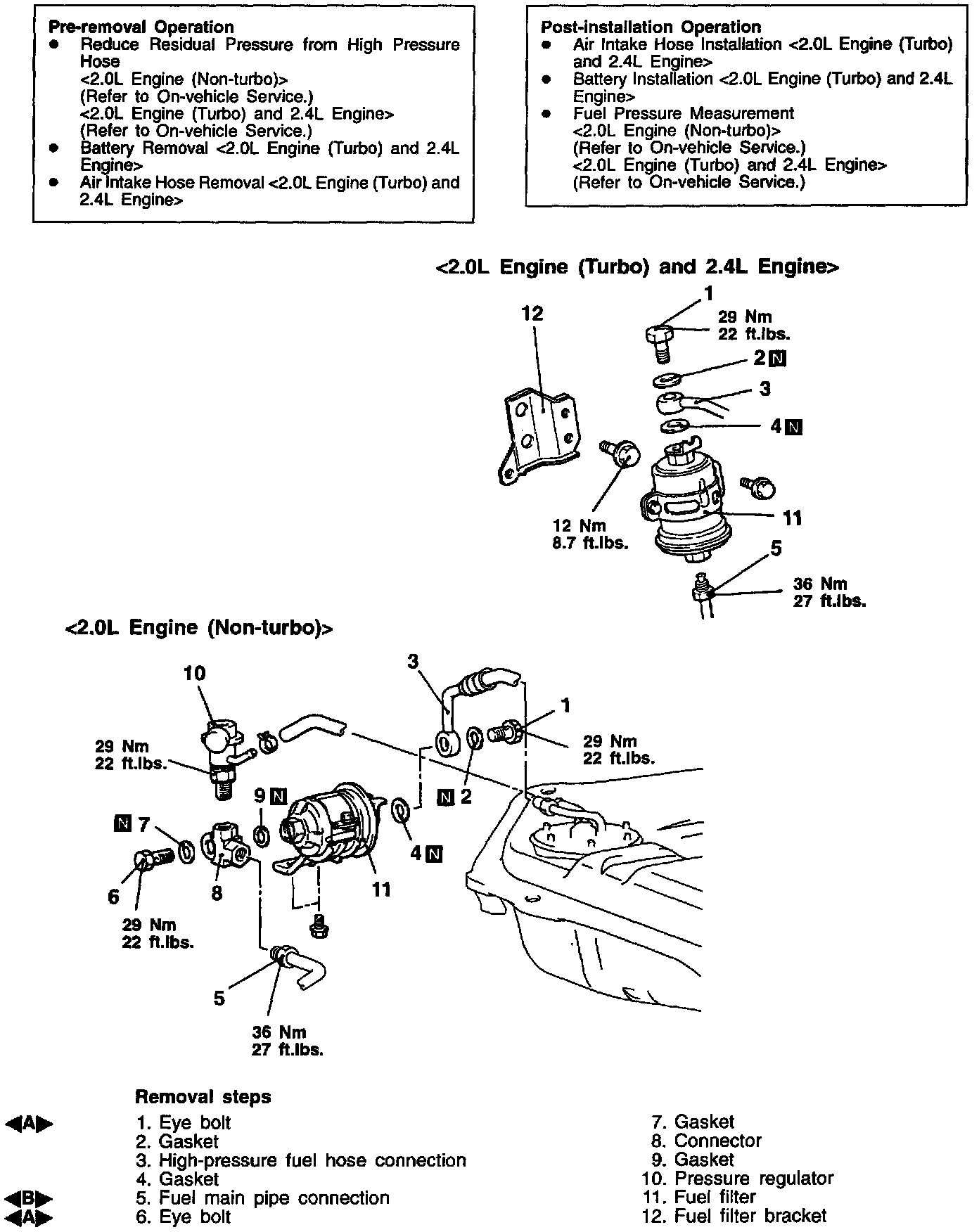

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS

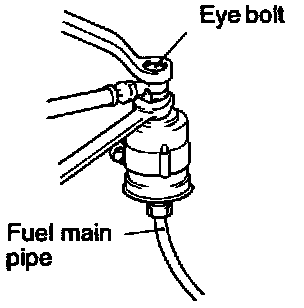

EYE BOLT REMOVAL
Hold the fuel filter with a spanner and remove the eye bolt.

CAUTION
As there will be some pressure remaining in the fuel pipe line, cover it with a shop towel to prevent fuel from spraying out.




FUEL MAIN PIPE DISCONNECTION
Hold the fuel filter with a spanner and loosen the flare nut. Then disconnect the fuel main pipe.
