Camshaft Position Sensor Cylinder - Procedure Revision

NO.: TSB-97-11-012
DATE: June, 1997
MODEL: 1997 Eclipse Turbo

SUBJECT:
CHANGED CAMSHAFT POSITION SENSING CYLINDER REMOVAL SEQUENCE - SERVICE MANUAL REVISION

[TSB Revision TSB-97-11-012]

PURPOSE
This bulletin changes the removal sequence for the camshaft position sensing cylinder for the 4G63 DOHC turbocharged engine as shown in the 1997 Eclipse & Eclipse Spyder Service Manual, Volume 1.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES

1997 Eclipse & Eclipse Spyder equipped with the 4G63 DOHC turbocharged engine

AFFECTED SERVICE MANUAL

1997 Eclipse & Eclipse Spyder Service Manual, Volume 1, Pages 11B-11 & 11B-12

SERVICE MANUAL REVISION

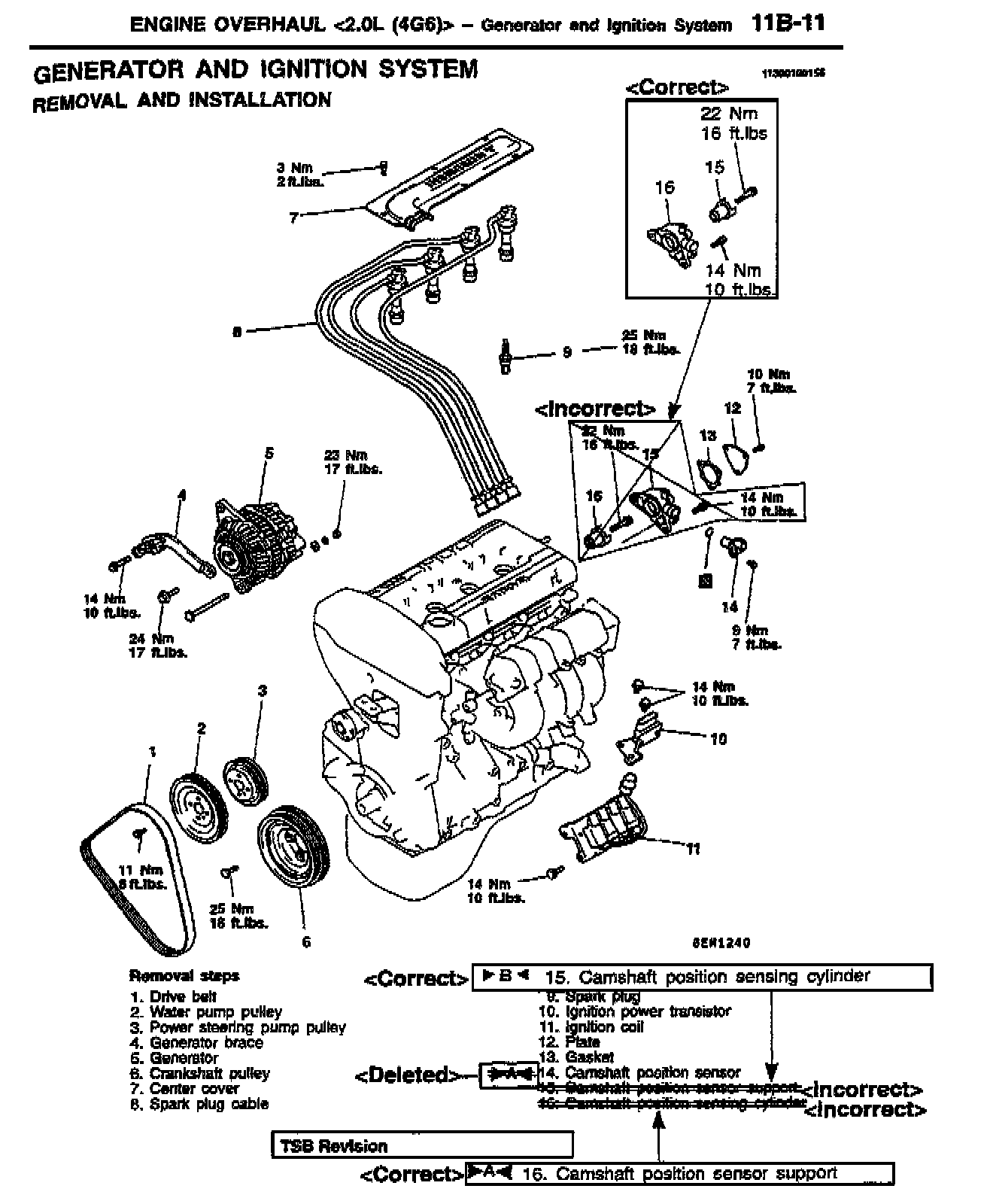

1997 Eclipse & Eclipse Spyder Service Manual, Volume 1, Page 11B-11
Correct the Generator and Ignition System removal steps list and illustration as shown.

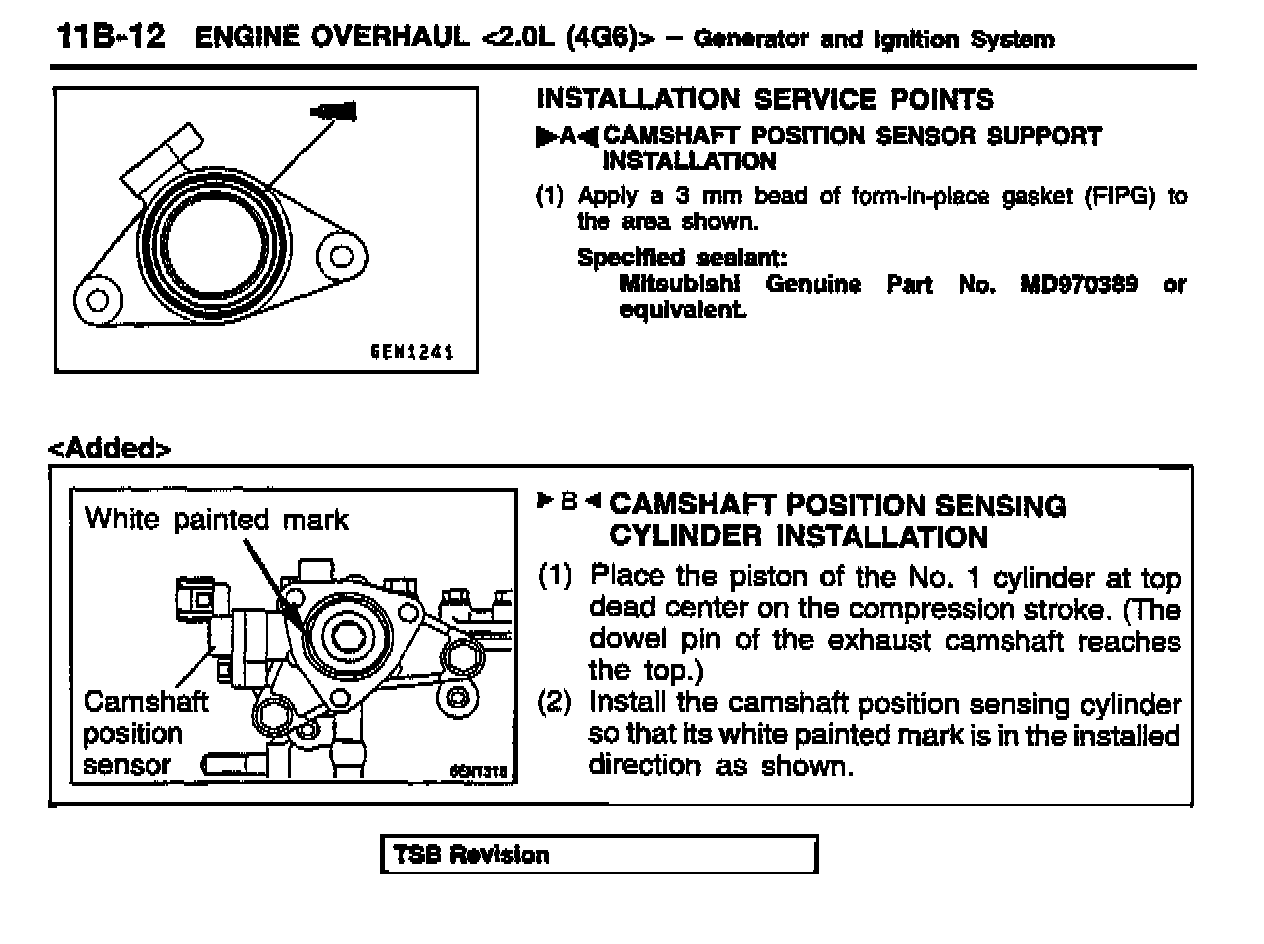

1997 Eclipse & Eclipse Spyder Service Manual Volume 1 Page 11B-12
Add the Camshaft Position Sensing Cylinder Installation procedure as shown.
