Knock Sensor: Service and Repair

Knock Sensor - Removal And Installation:

Pre-Removal and Post-Installation Operation
- Under Cover Removal and Installation
(Refer to - Under Cover)

CAUTION: Do not subject the knock sensor to any shocks.

Removal

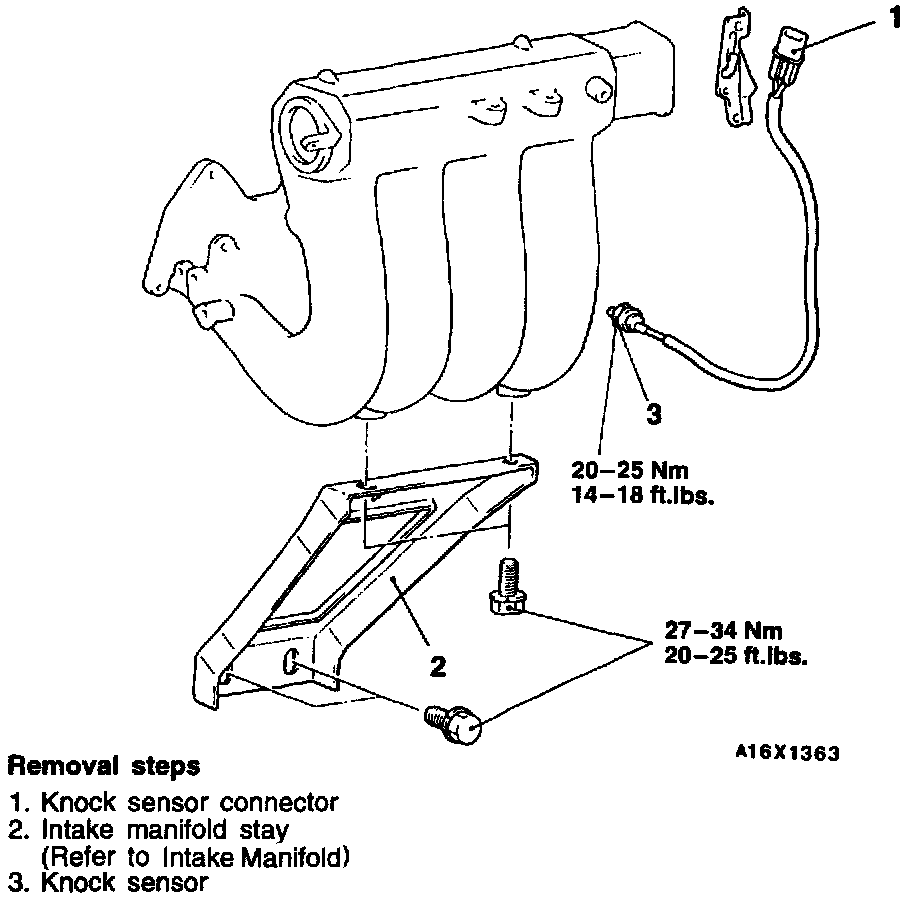

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image.
