Misc Fuses, Fusible Links and IOD or Storage Connector

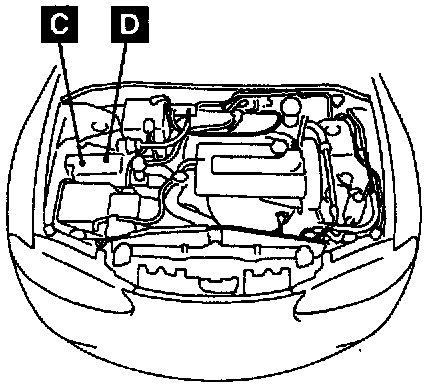

Fusible Link And Fuse Location Overallview:

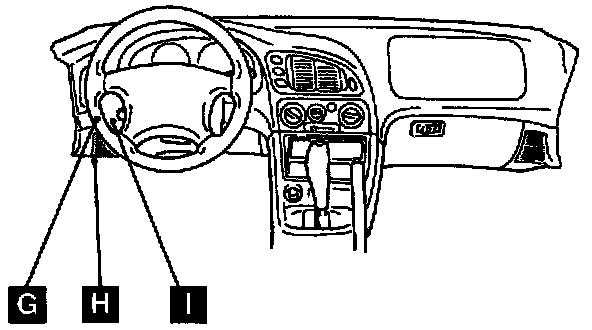

Fusible Link And Fuse Location Overallview:

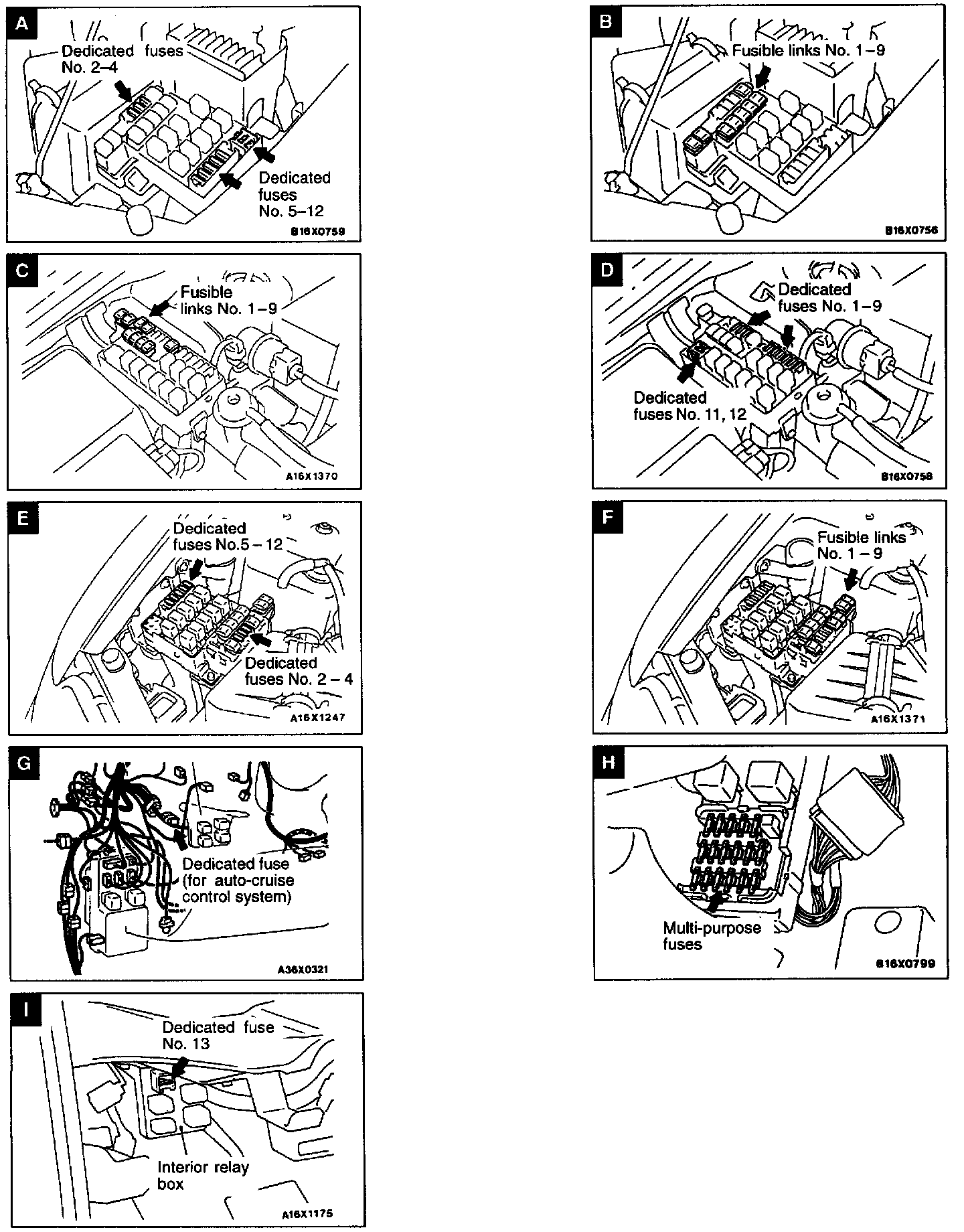

Fusible Link And Fuse Locations View A - I:

Name Symbol
Dedicated Fuses No. 1 - 12 D
Dedicated Fuses No 13 I
Dedicated Fuses G
(for Auto-cruise Control system)
Fusible Links 1-9 C
Multi-Purpose Fuses H
