A Connectors - Engine Compartment Harness

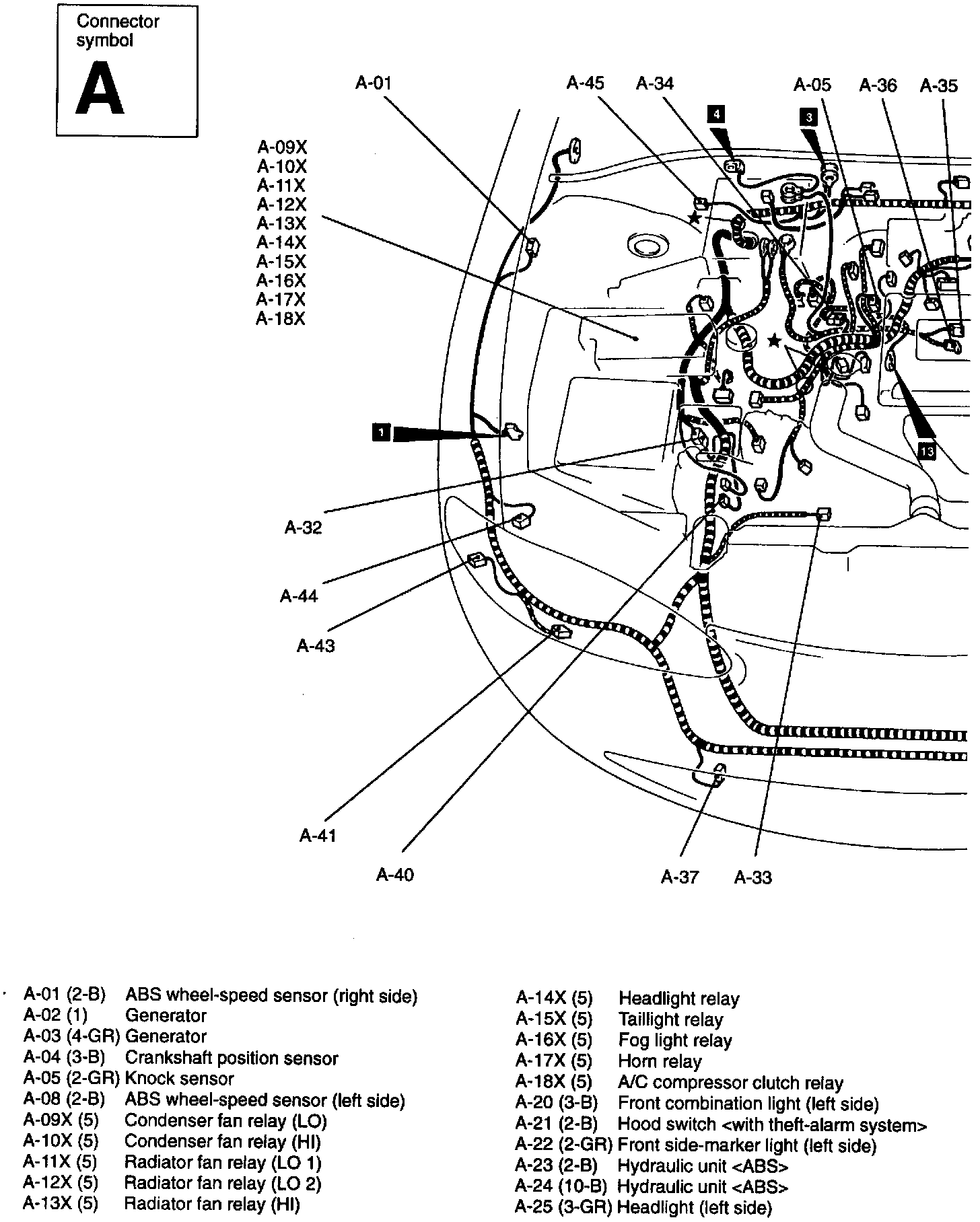

Engine Compartment - Connector A (01 Thru 25):

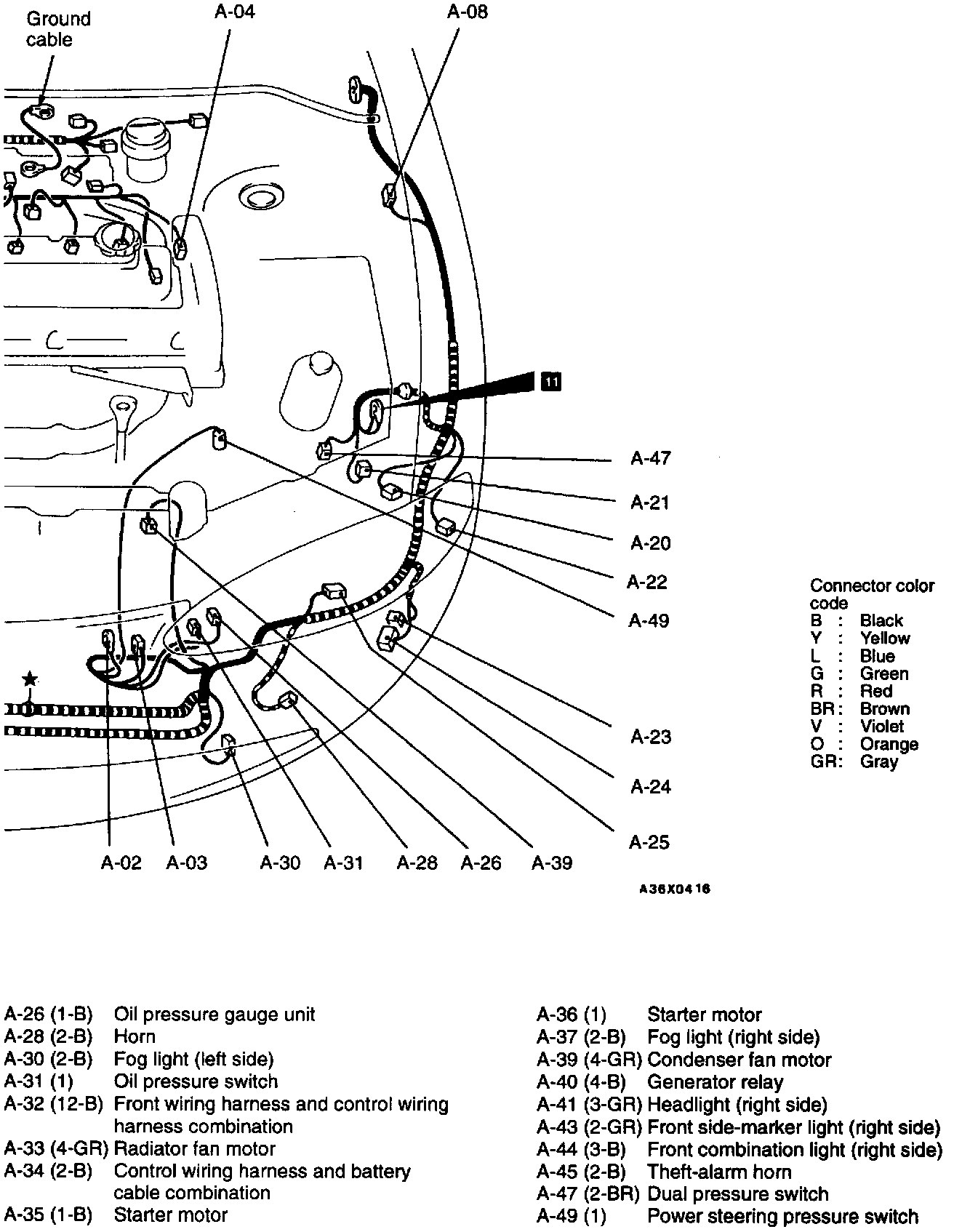

Engine Compartment - Connector A (26 Thru 49):

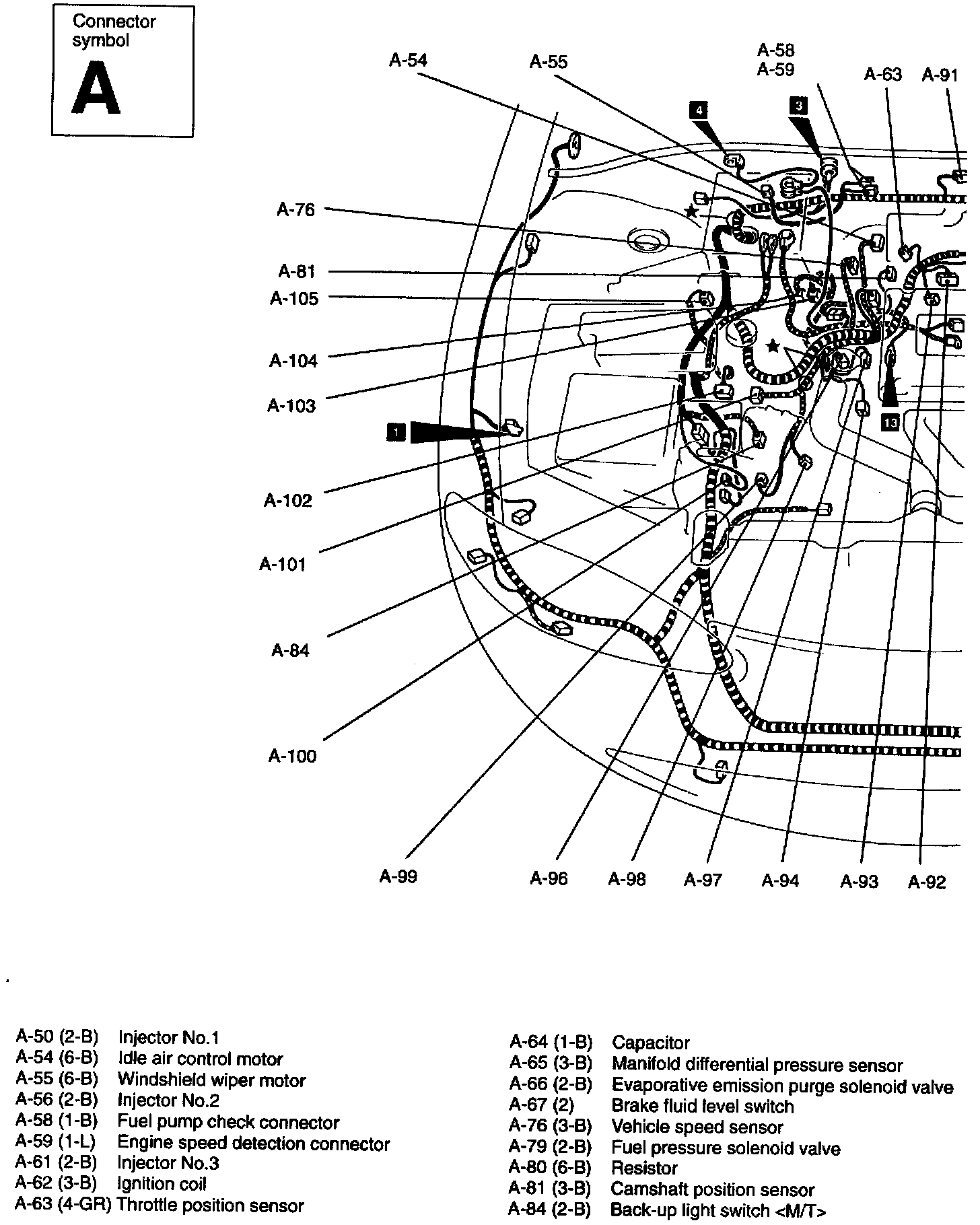

Engine Compartment - Connector A (50 Thru 84):




Engine Compartment - Connector A (91 Thru 105):
