Headlamp: Service and Repair

Headlight, Front Turn-signal Light And Position Light Assembly - Removal And Installation:

CAUTION: SRS
Before, removal of air bag module, and clock spring, refer to, SRS Service Precautions, Air Bag Module and Clock spring.

Pre-removal and Post-installation Operation
Removal and Installation of Air Cleaner Assembly and Radiator Reserve Tank. (When removing the right headlight for turbo vehicles)

Removal

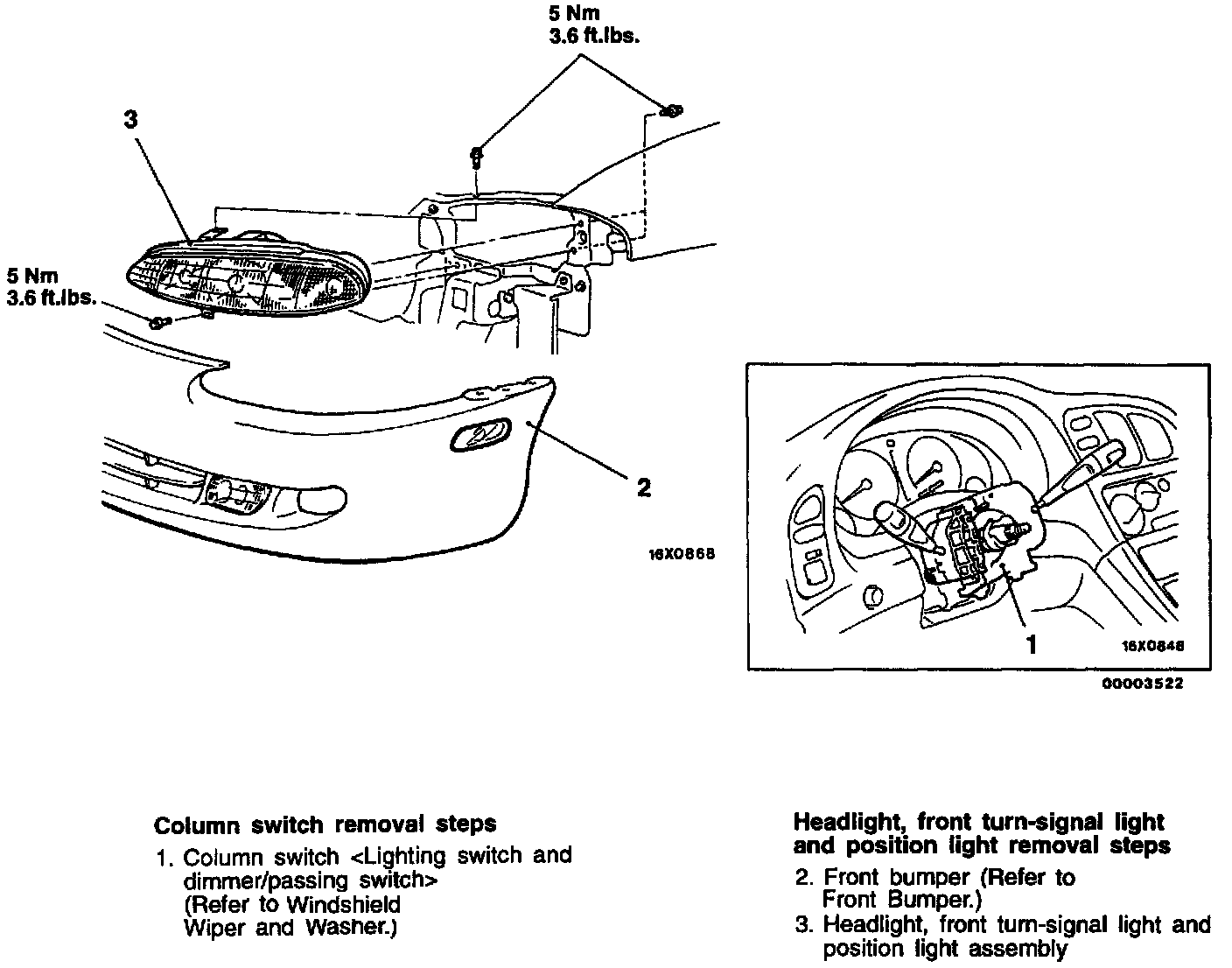

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image.
