Home >> Mitsubishi >> 1997 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Relay >> Testing and Inspection

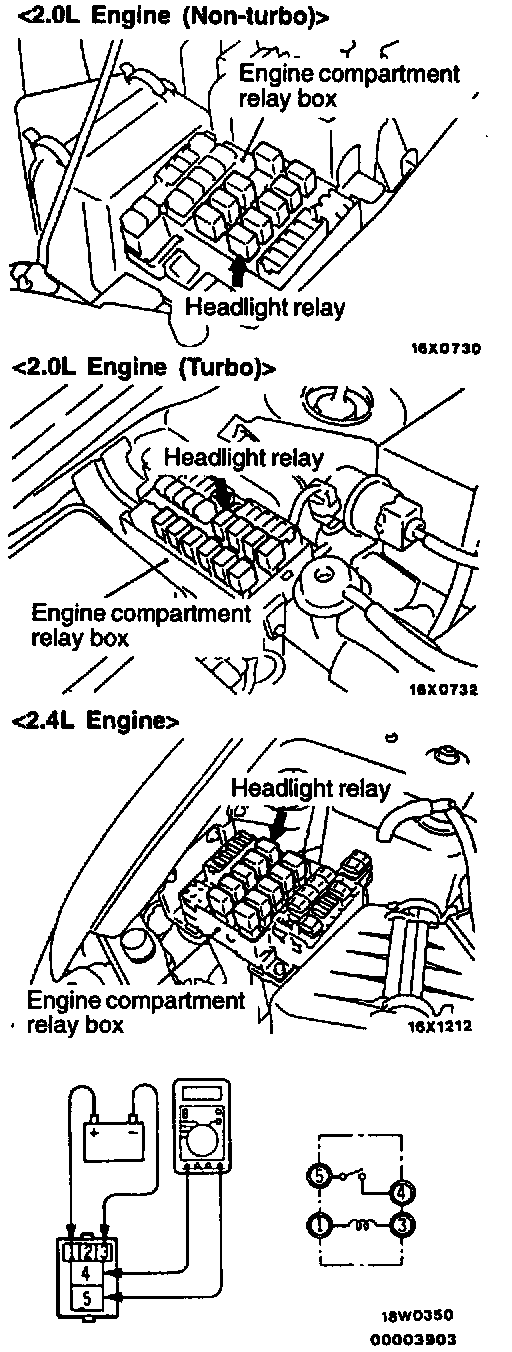

Headlamp Relay: Testing and Inspection

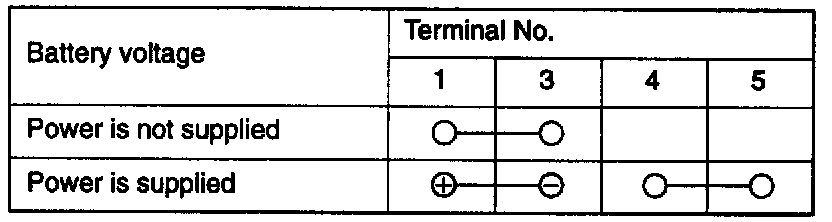

Headlight Relay Continuity Check:



Headlight Relay Continuity Check:
