Turbo Boost Gauge: Testing and Inspection

Oil Pressure Gauge Check:

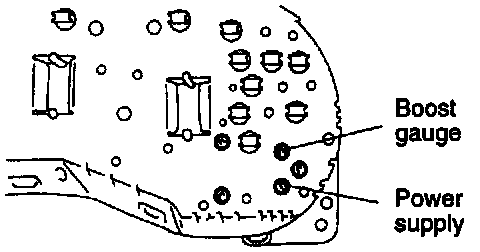

Use an ohmmeter to measure resistance between terminals.
Standard value: 75.8 +/- 7.6 Ohm
