Fuel Gauge Resistance Check

Fuel Gauge Check:

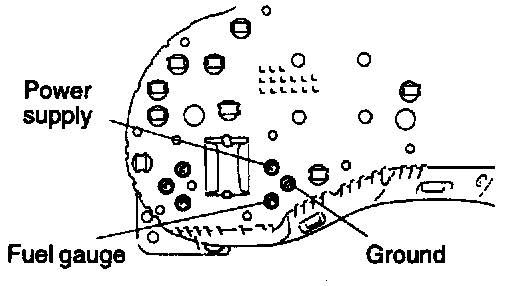

1. Remove the power supply tightening screw.
2. Use an ohmmeter to measure the resistance value between the terminals.
Standard value:
Power supply-Ground: 249 +/- 30 Ohm
Power supply-Fuel gauge: 127 +/- 25 Ohm
Fuel gauge-Ground: 122 +/- 10 Ohm
