Cigarette Lighter: Service and Repair

Cigarette Lighter - Removal And Installation:

CAUTION: SRS
When removing and installing the floor console assembly, do not let it bump against the SRS-ECU.

Removal

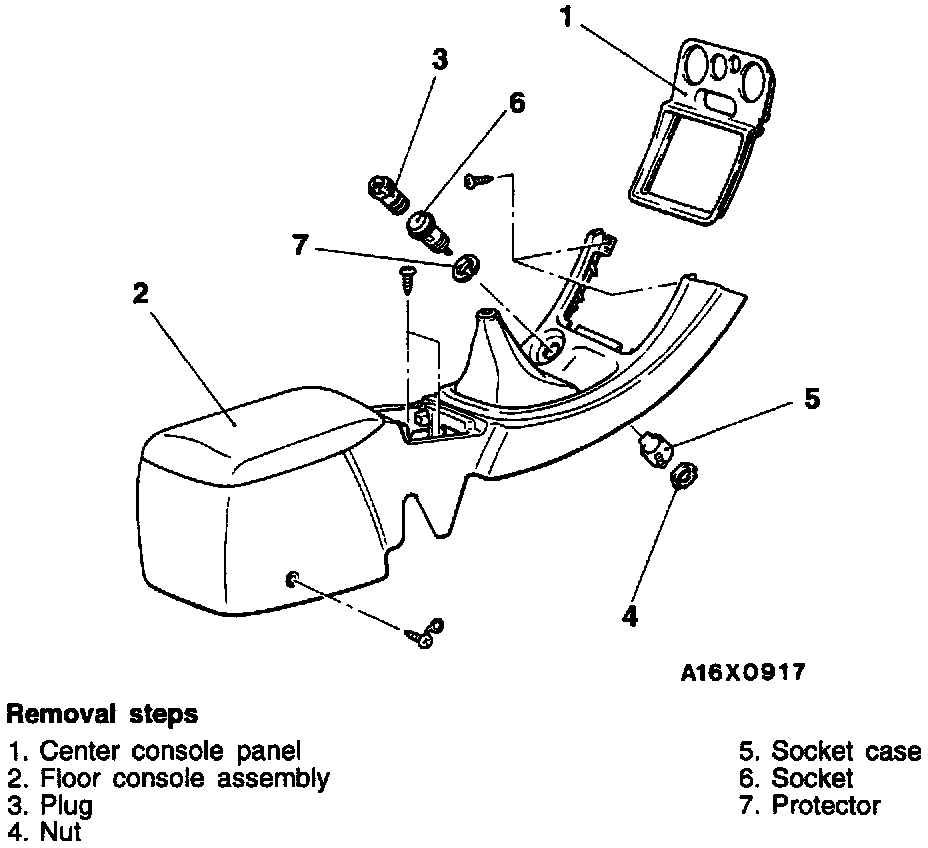

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image.
