Hose/Line HVAC: Service and Repair

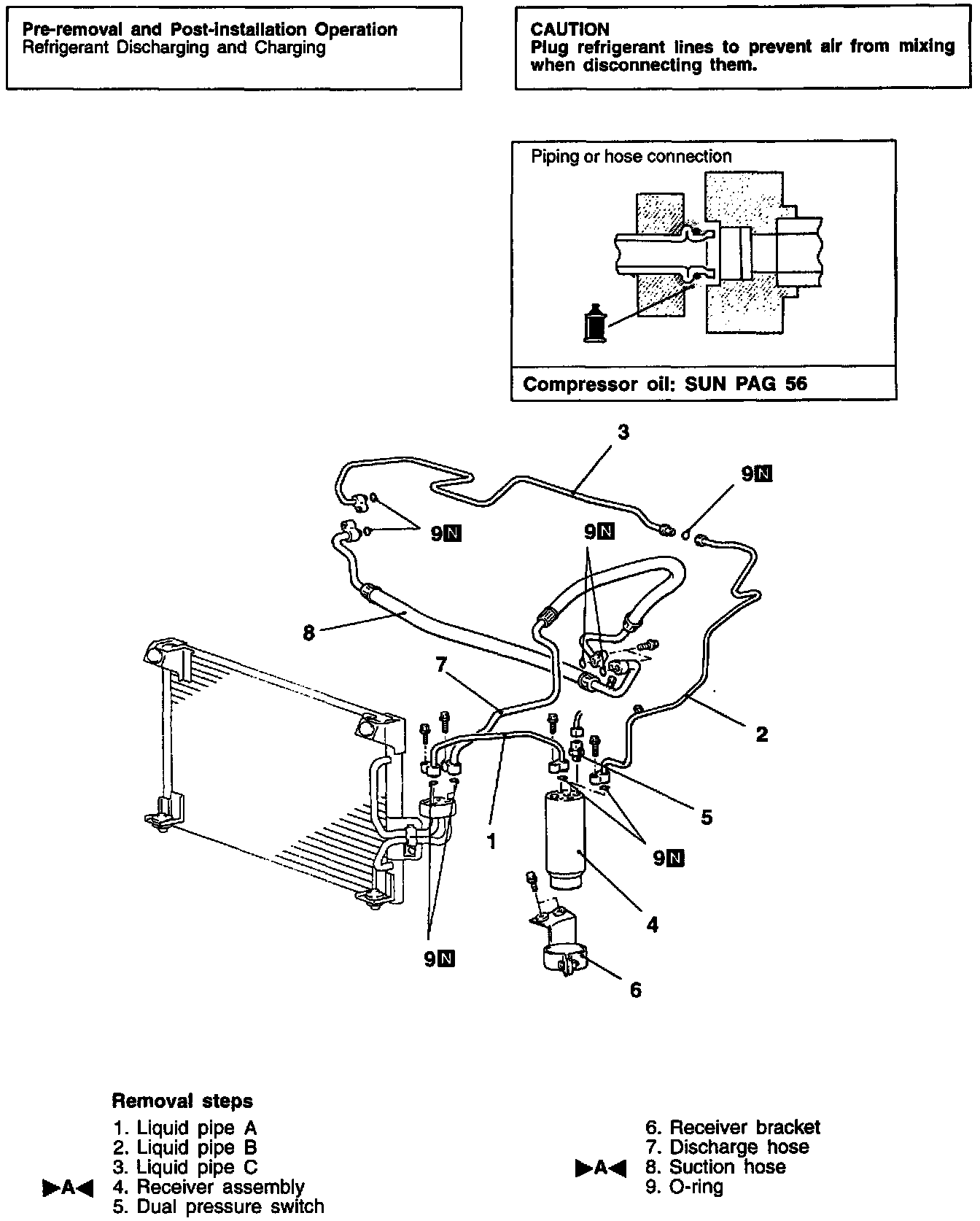

REMOVAL AND INSTALLATION





INSTALLATION SERVICE POINT
>A< SUCTION HOSE, RECEIVER ASSEMBLY INSTALLATION
When replacing the suction hose or the receiver assembly, refill them with a specified amount of compressor oil.

Compressor oil:
SUN PAG 56

Quantity:
Suction hose: 10 cubic cm (0.34 fl.oz)
Receiver: 10 cubic cm (0.34 fl.oz.)
