A/C Clutch - Air Gap Specification Revised
No.: TSB-98-55-001DATE: February, 1998
MODEL: See Below
SUBJECT:
REVISED A/C CLUTCH AIR GAP - SERVICE MANUAL REVISION
[TSB Revision TSB-98-55-001]
PURPOSE
This bulletin has revised air conditioner compressor clutch air gap clearance standard values and specifications for the listed affected vehicles' service manuals.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1997 3000GT
1997 Eclipse/Eclipse Spyder
1997 Galant
1997 Mirage
1997 Montero Sport
AFFECTED SERVICE MANUALS
1997 3000GT Service Manual, Volume 1, Pages 55-4, 55-39
1997 Eclipse/Eclipse Spyder Service Manual, Volume 1, Pages 55-5, 55-36
1997 Galant Service Manual, Volume 1, Pages 55-5, 55-35
1997 Mirage Service Manual, Volume 1, Pages 55-4, 55-28
1997 Montero Sport Service Manual, Volume 1, Pages 55-31, 55-38
AFFECTED SERVICE MANUALS

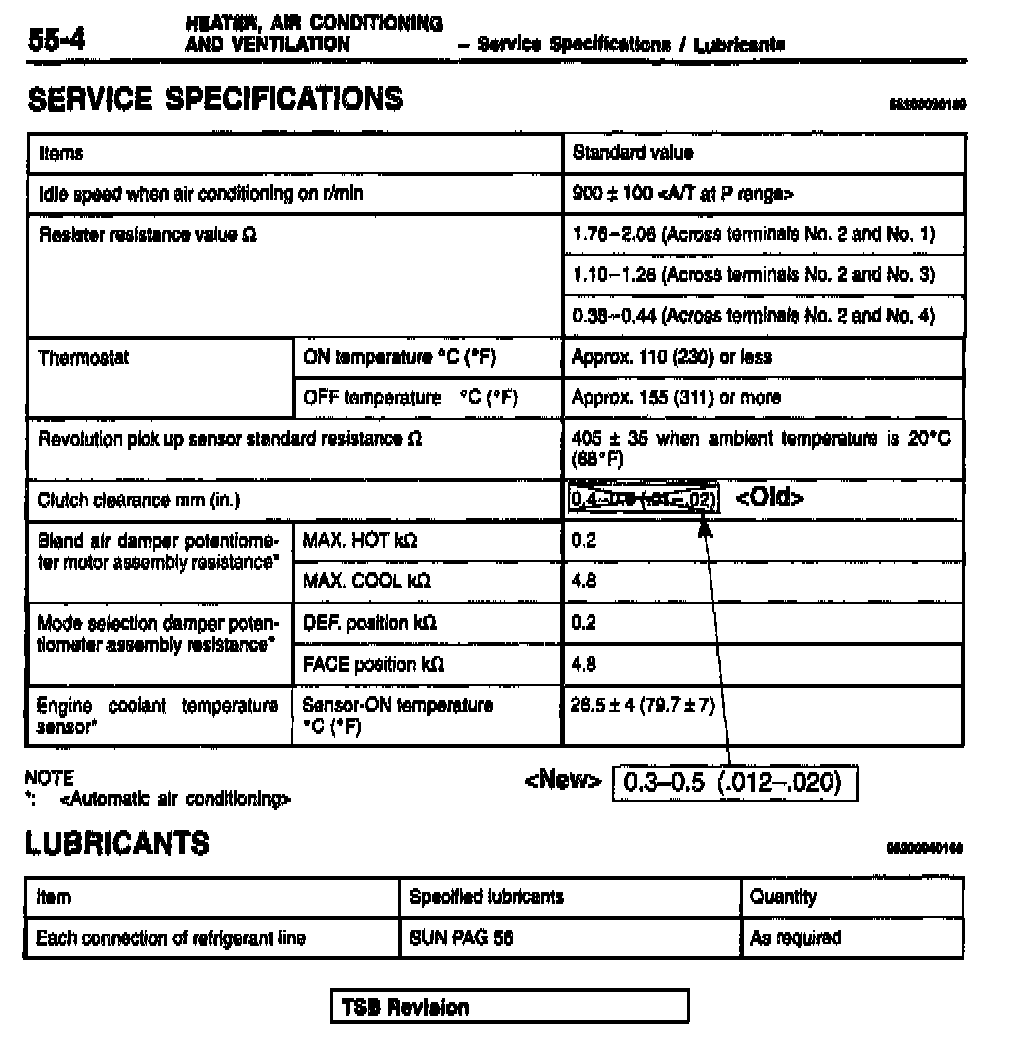

1997 3000GT Service Manual, Volume 1, Pages 55-4
Revise the clutch clearance specification as shown.

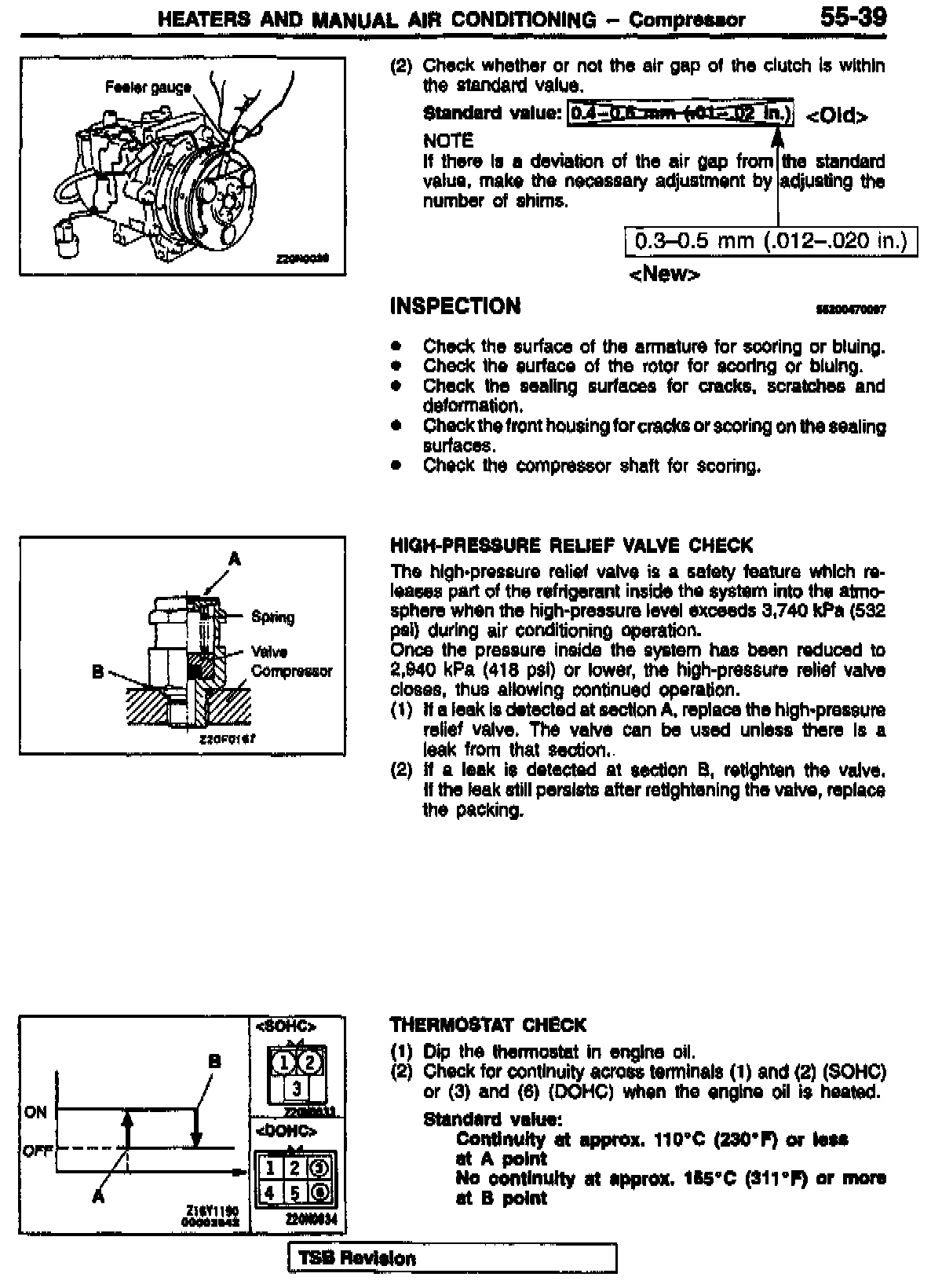

1997 3000GT Service Manual, Volume 1, Pages 55-39
Revise the clutch air gap standard value as shown.

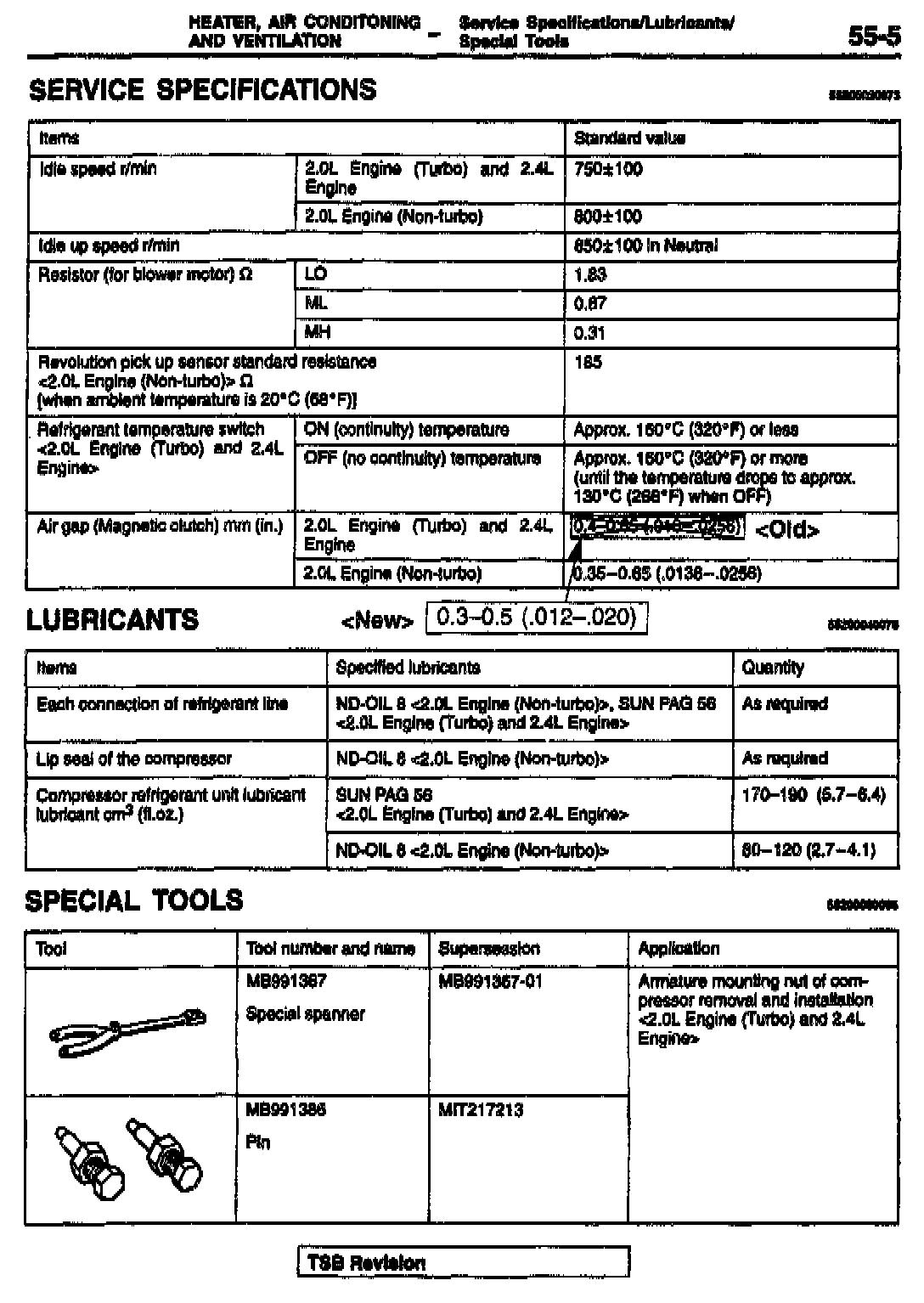

1997 Eclipse/Eclipse Spyder Service Manual, Volume 1, Pages 55-5
Revise the clutch air gap specification as shown.

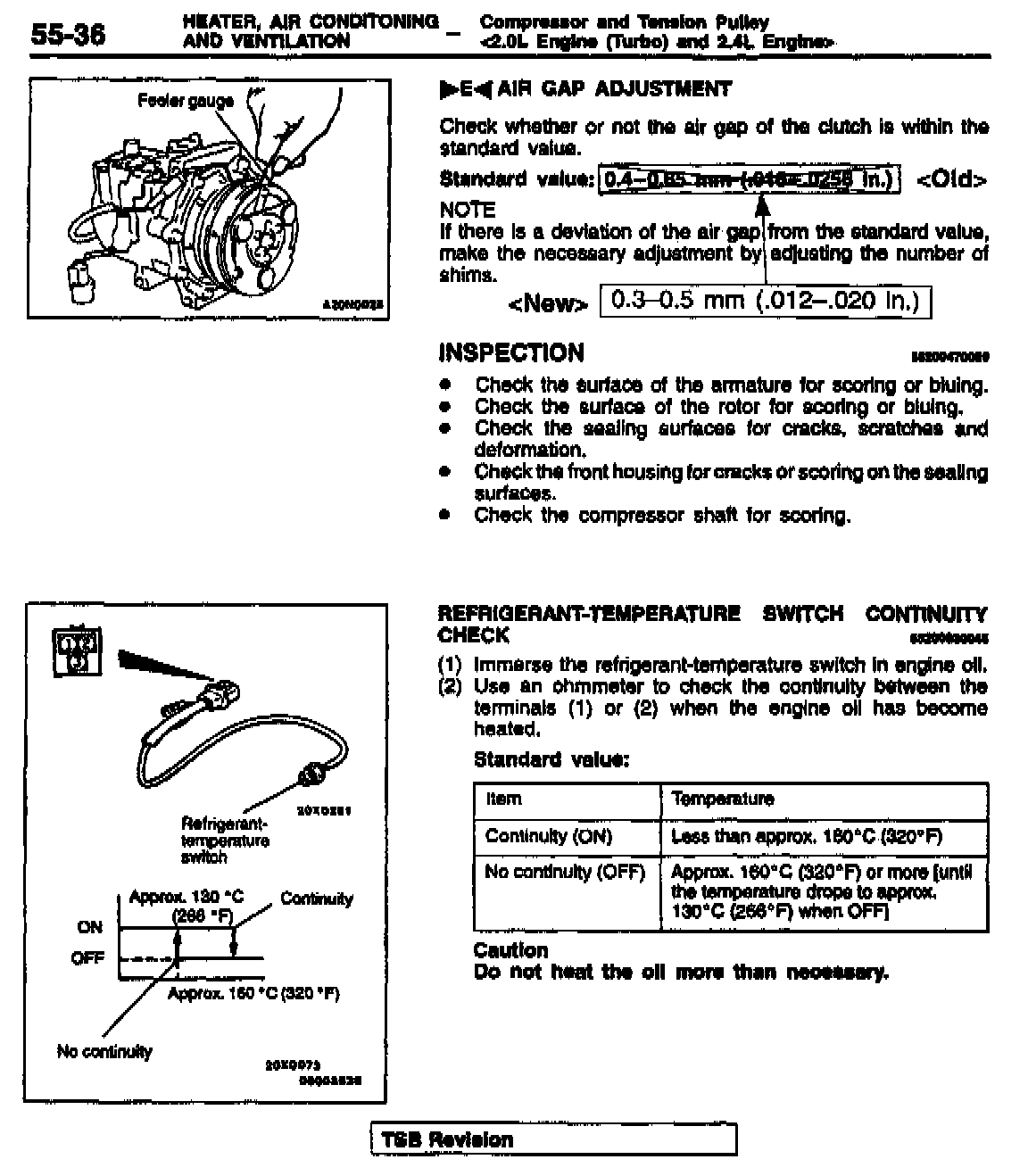

1997 Eclipse/Eclipse Spyder Service Manual, Volume 1, Pages 55-36
Revise the clutch air gap standard value as shown.

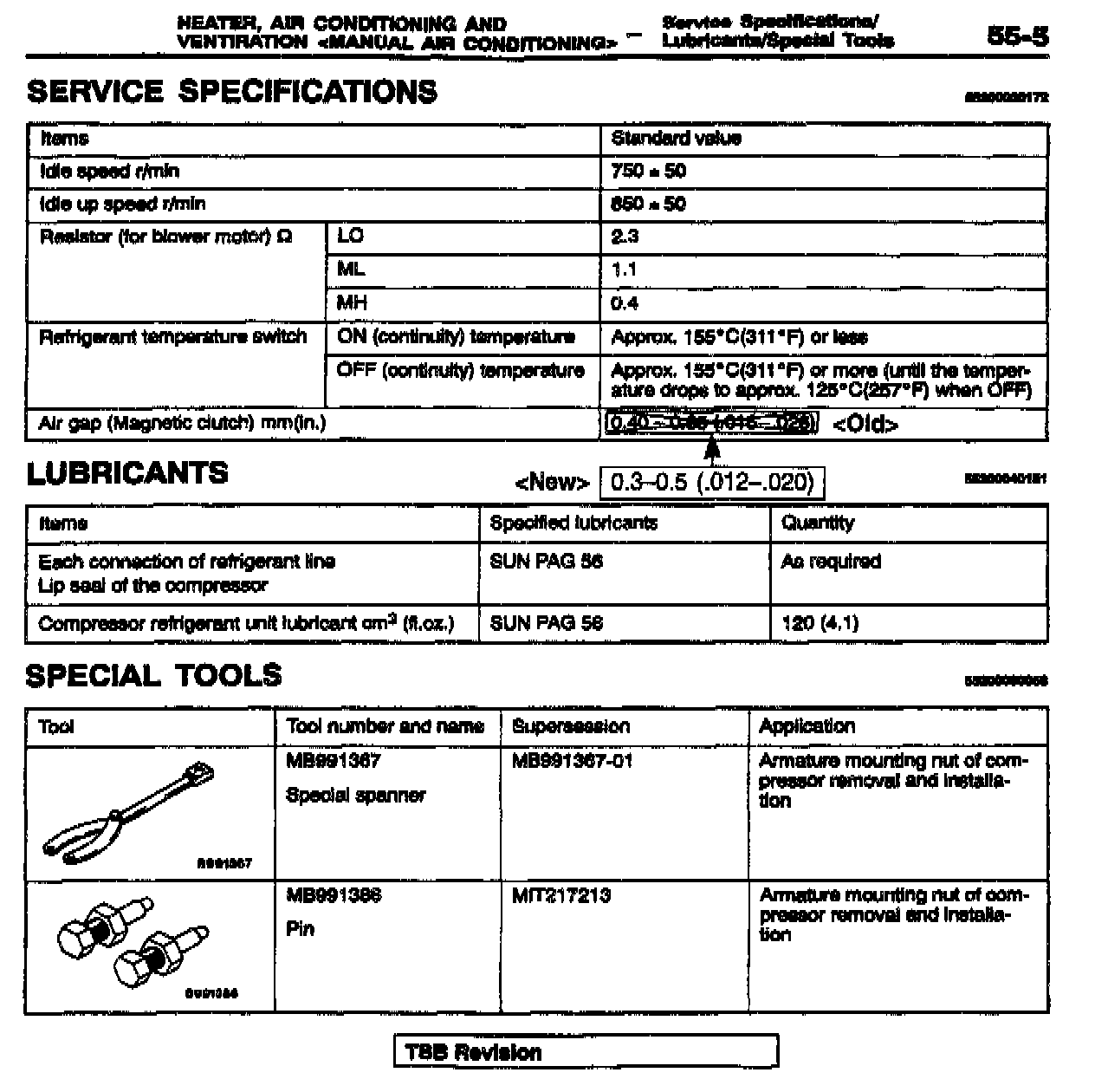

1997 Galant Service Manual, Volume 1, Pages 55-5
Revise the clutch air gap specification as shown.

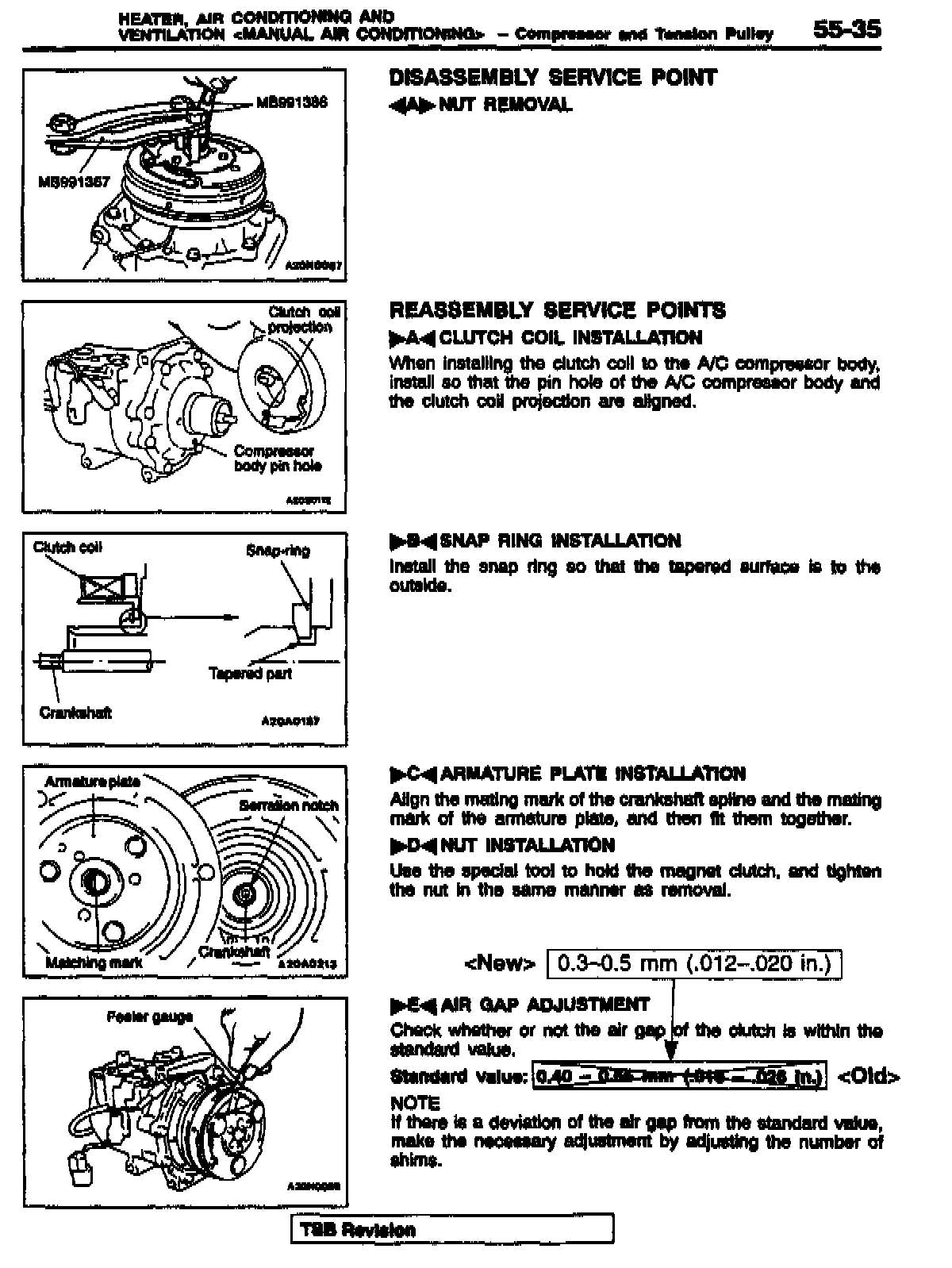

1997 Galant Service Manual, Volume 1, Pages 55-35
Revise the clutch air gap standard value as shown.
1997 Mirage Service Manual, Volume 1, Pages 55-4
Revise the clutch air gap specification as shown.

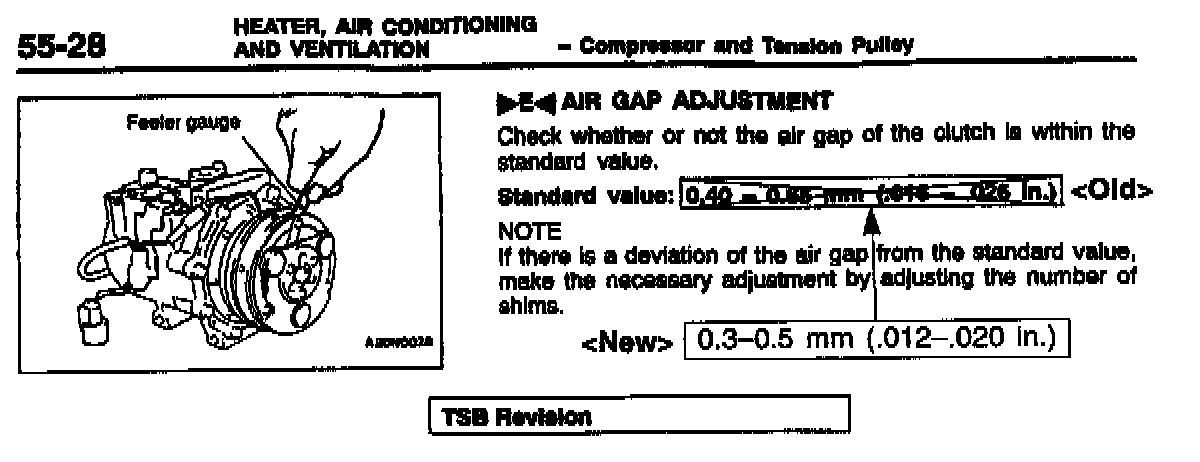

1997 Mirage Service Manual, Volume 1, Pages 55-28
Revise the clutch air gap standard value as shown.

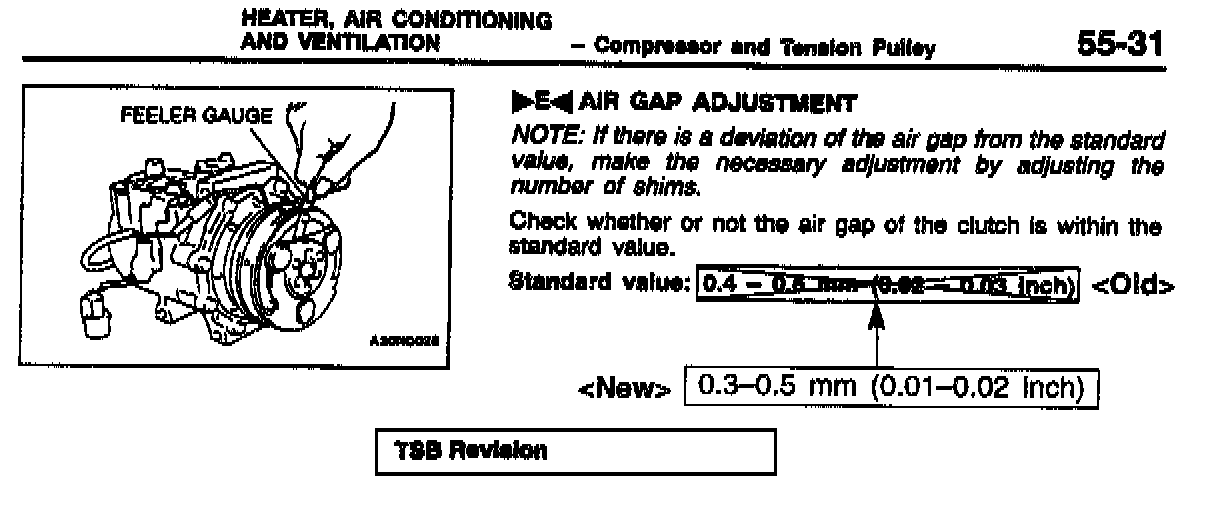

1997 Montero Sport Service Manual, Volume 1, Pages 55-31
Revise the clutch air gap standard value as shown.

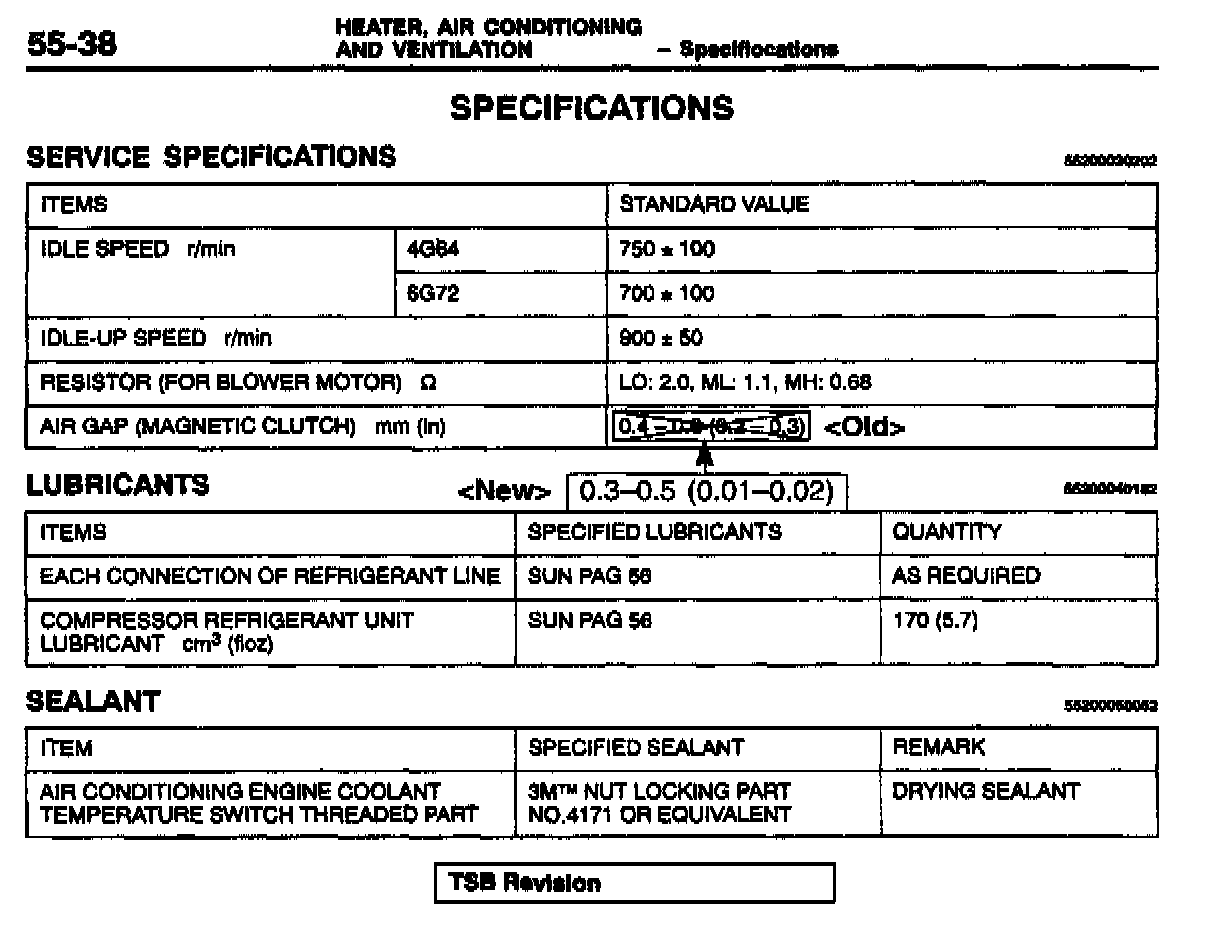

1997 Montero Sport Service Manual, Volume 1, Pages 55-38
Revise the clutch air gap specification as shown.
