Oil Pressure Gauge Check

Engine Coolant Temperature Gauge Check:

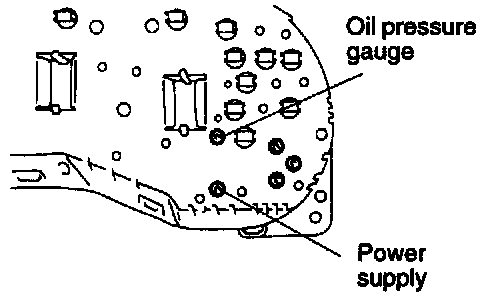

Use an ohmmeter to measure resistance between terminals.
Standard value: 42 +/- 2 Ohm
