Crankshaft Bearing - Selection Chart & Procedure
NO.: TSB-97-11-004DATE: May, 1997
MODEL: See below
SUBJECT:
CRANKSHAFT BEARING SELECTION PROCEDURE - SERVICE MANUAL REVISION
[TSB Revision TSB-97-11-004]
PURPOSE

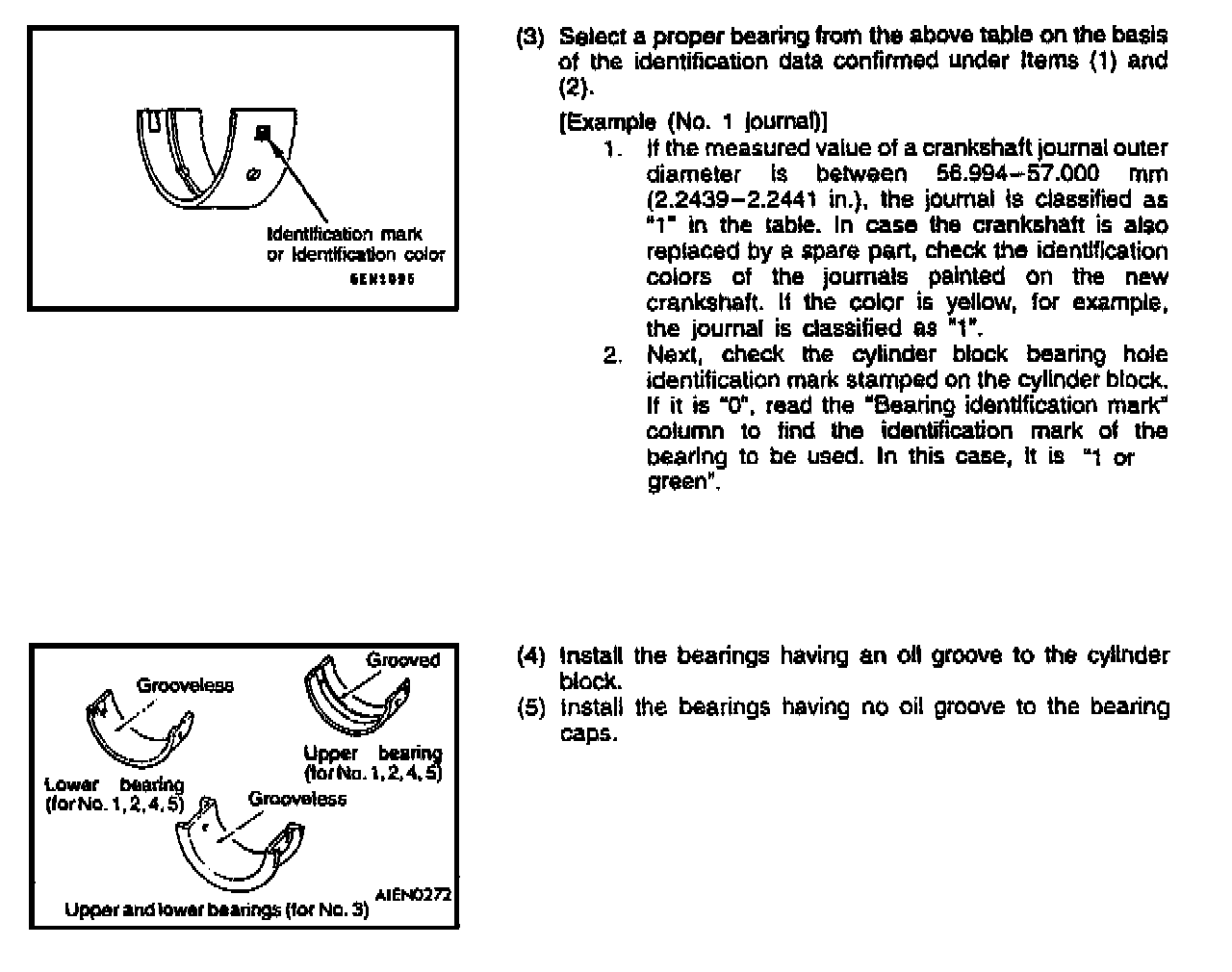

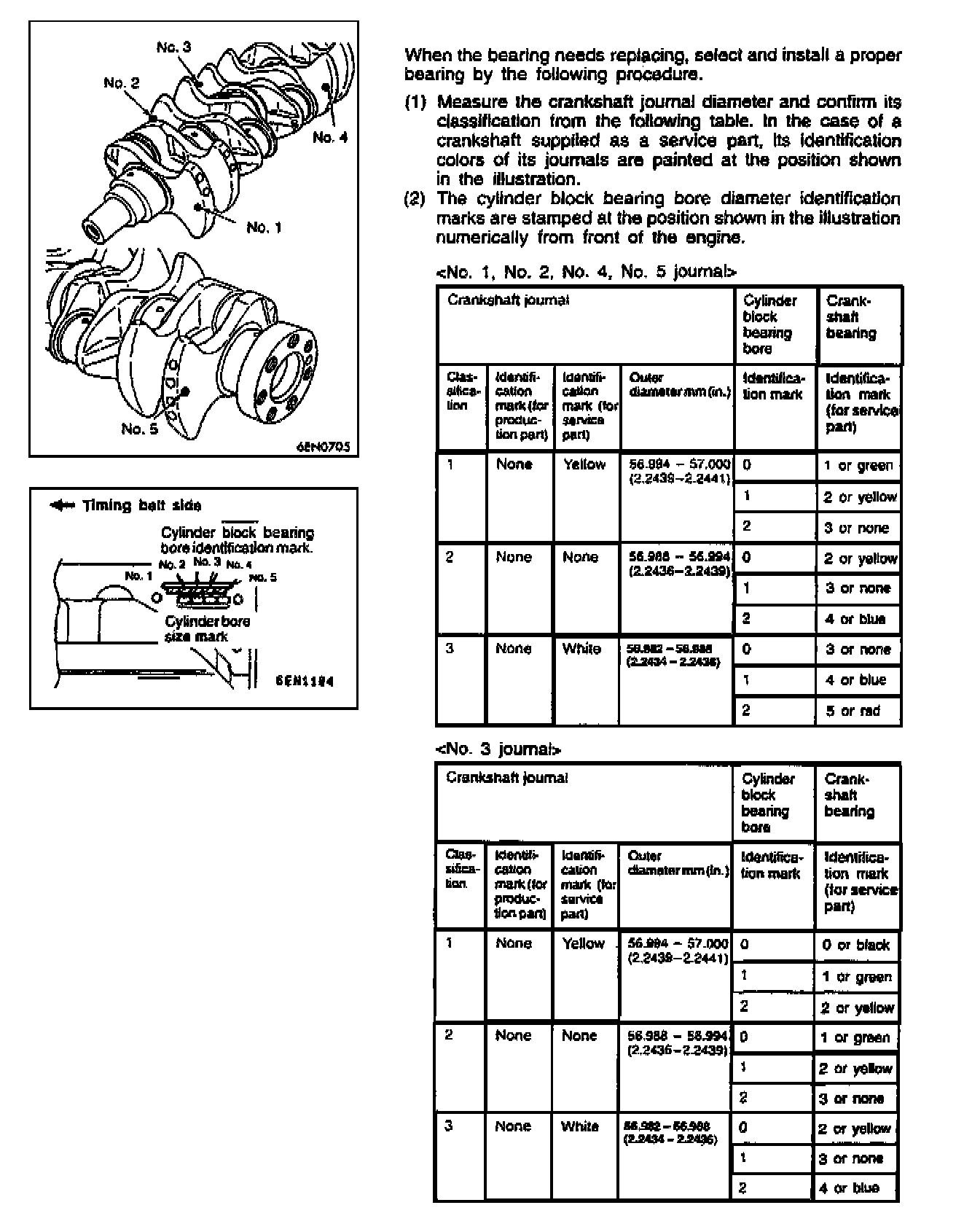

Due to changes in the crankshaft center bearing, the crankshaft bearing selection procedure for affected vehicles has been changed. This bulletin contains new crankshaft bearing selection procedures.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.
AFFECTED VEHICLES
^ 1996-97 Galant
^ 1996-97 Eclipse and Eclipse Spyder equipped with 2.0L turbocharged engine
^ 1997 Montero Sport
AFFECTED SERVICE MANUALS
^ 1996 Galant, Volume 1, pages 11B-54, 11F-54
^ 1997 Galant, Volume 1, page 11B-54
^ 1996 Eclipse, Volume 1, pages 11B-69, 11B-60, 11F-54
^ 1997 Eclipse/Eclipse Spyder, Volume 1, pages 11B-60, 11B-61
^ 1997 Montero Sport, Volume 1, page 11B-48
