Interior Harness - E Connectors

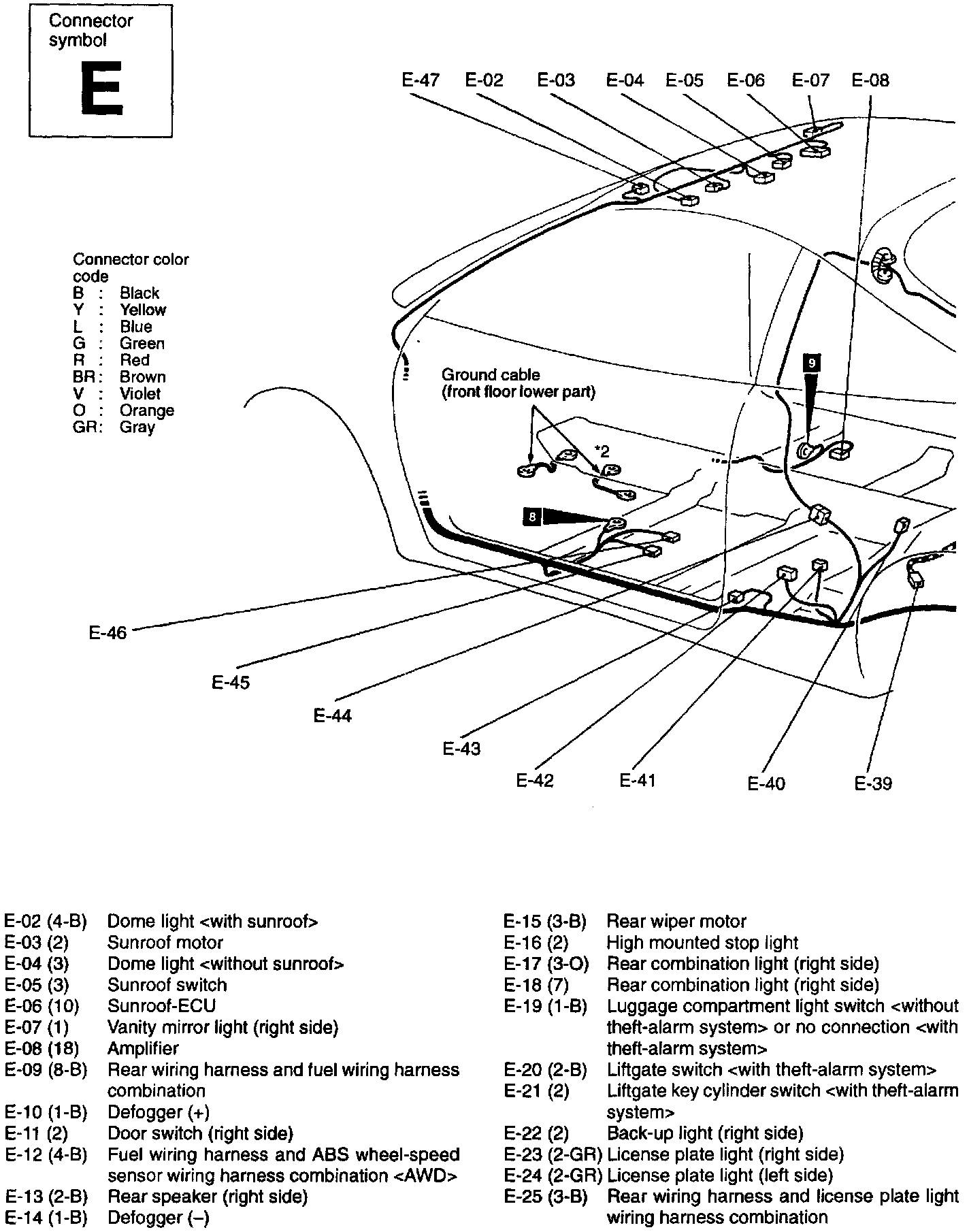

Interior - Connector E (02 Thru 25):

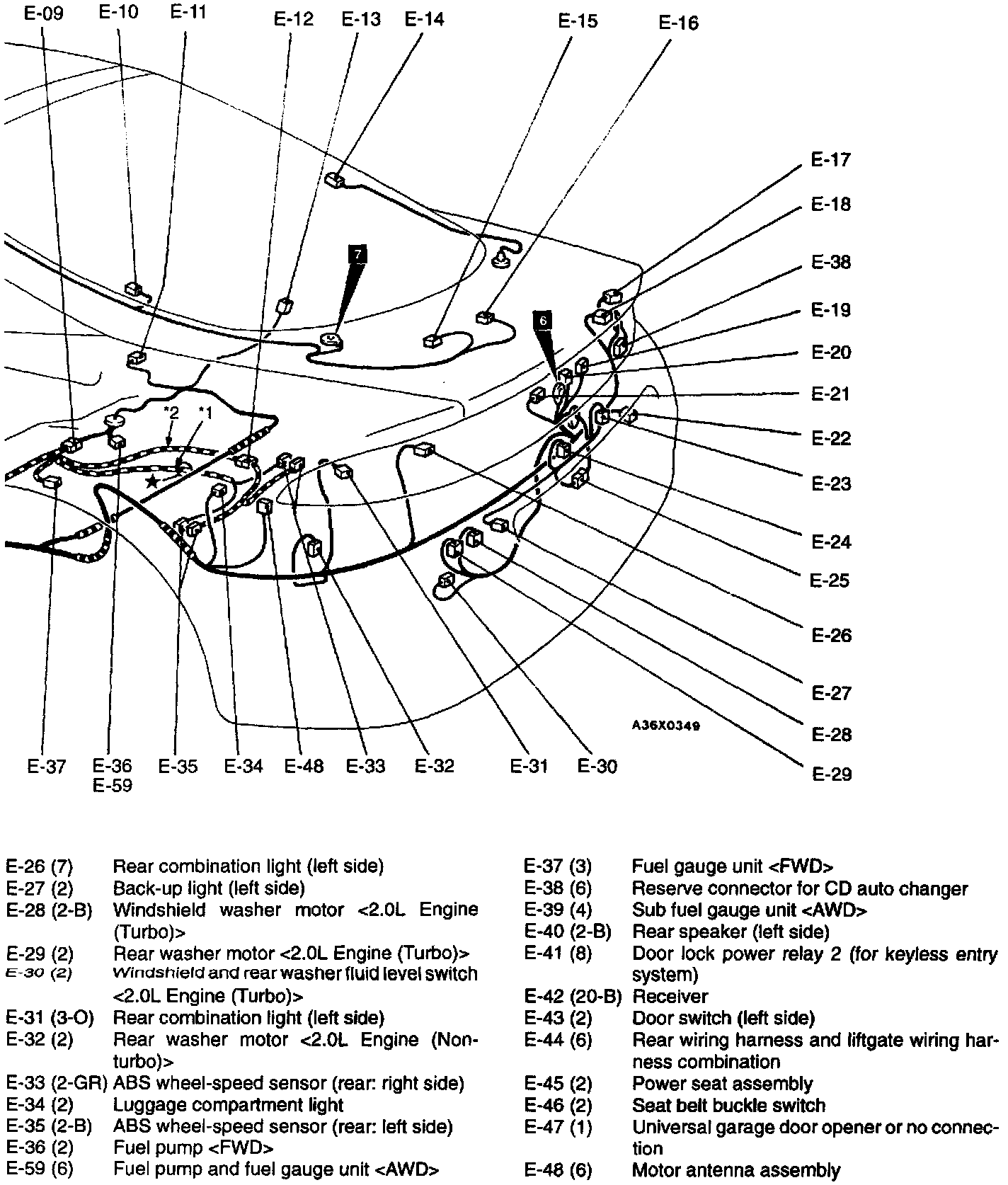

Interior - Connector E (26 Thru 48):
