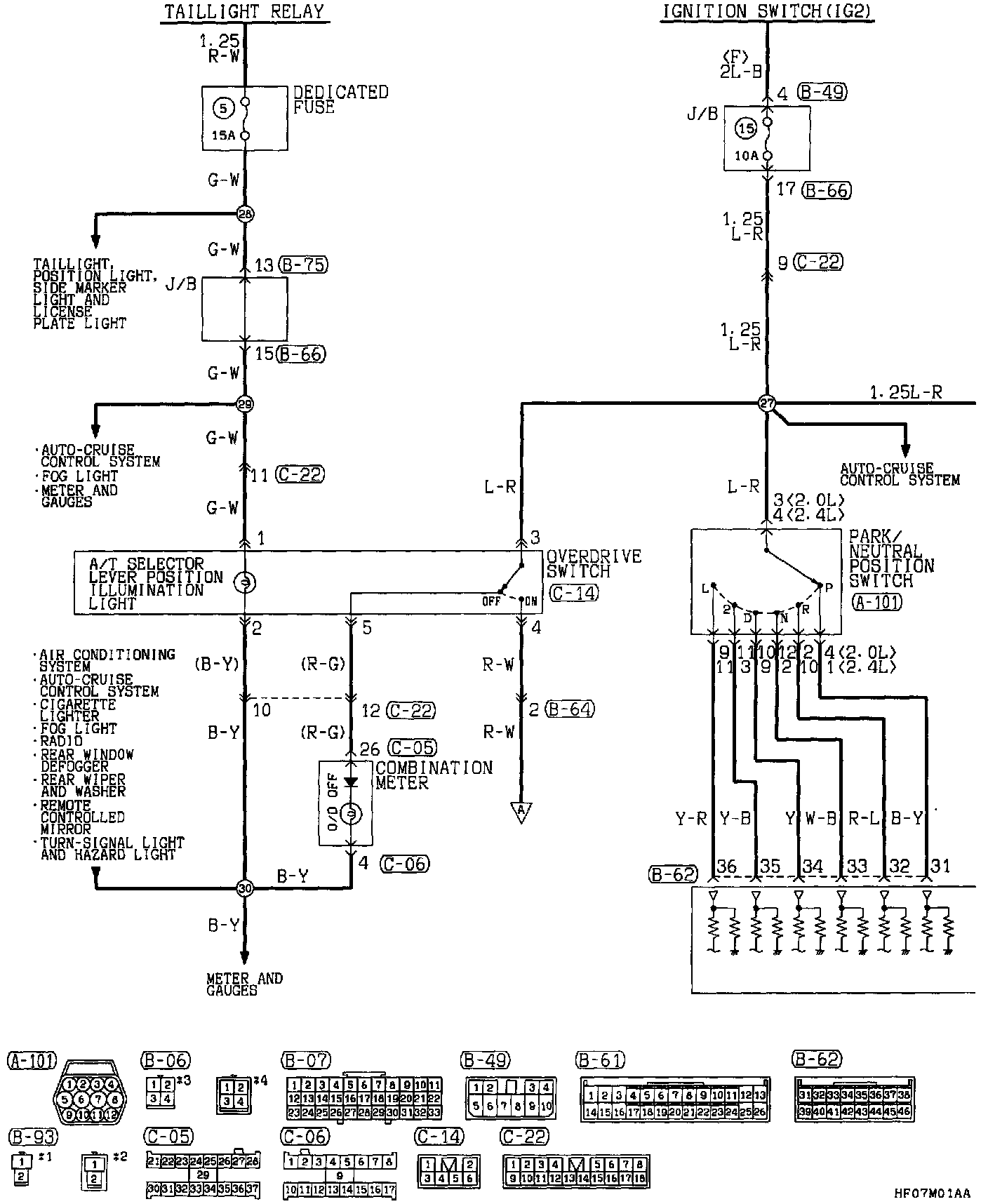

Transmission Control Systems

ELC 4-Speed Automatic Transaxle (Part 1 Of 6):

Dedicated Fuse
ELC 4-Speed Automatic Transaxle Control Module
J/B
Overdrive Switch
Park/Neutral Position Switch

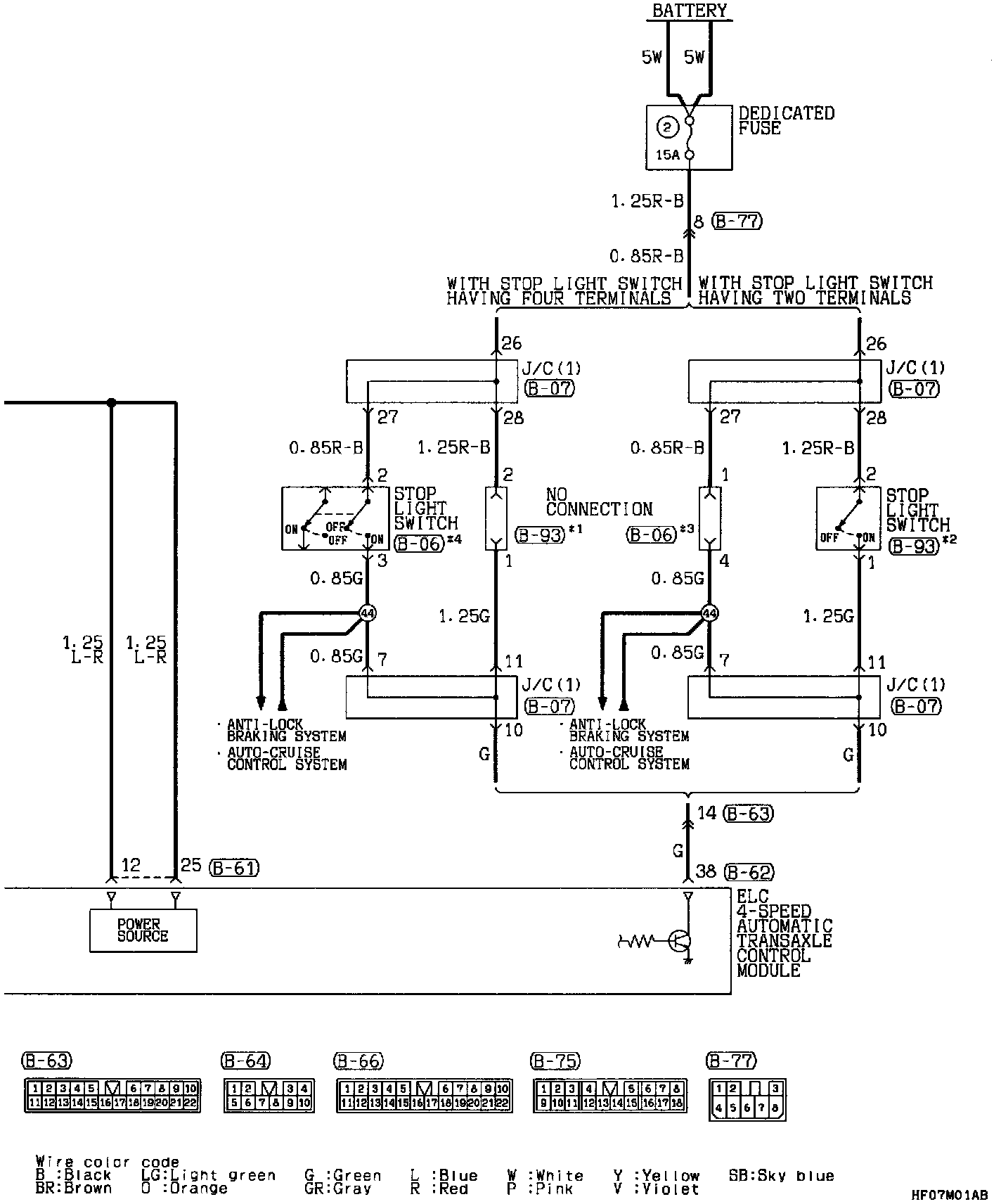

ELC 4-Speed Automatic Transaxle (Part 2 Of 6):

Dedicated Fuse
ELC 4-Speed Automatic Transaxle Control Module
- Power Source
J/C (1)
Stop Light Switch

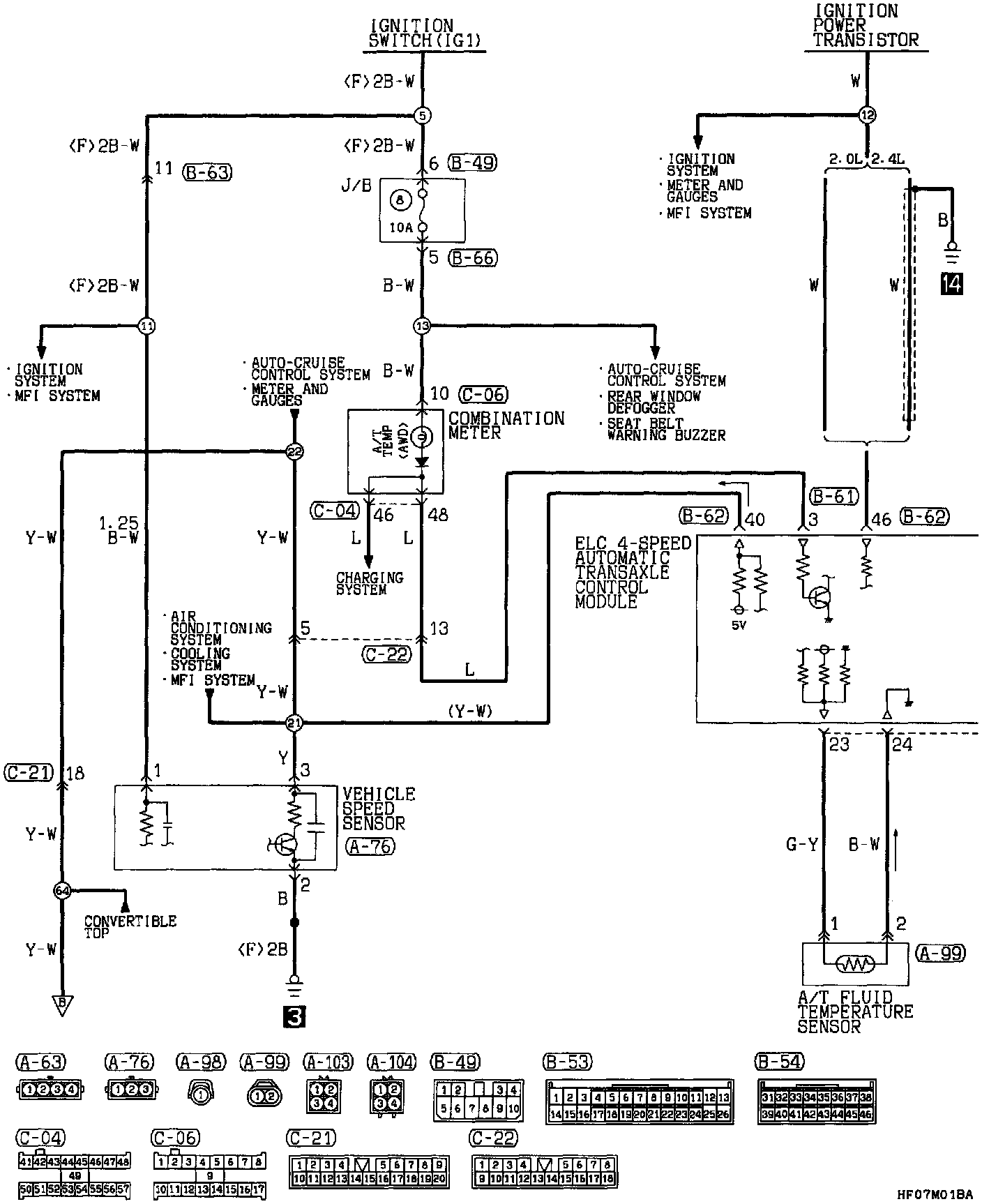

ELC 4-Speed Automatic Transaxle (Part 3 Of 6):

A/T Fluid Temperature Sensor
Combination Meter
ELC 4-Speed Automatic Transaxle Control Module
J/B
Vehicle Speed Sensor

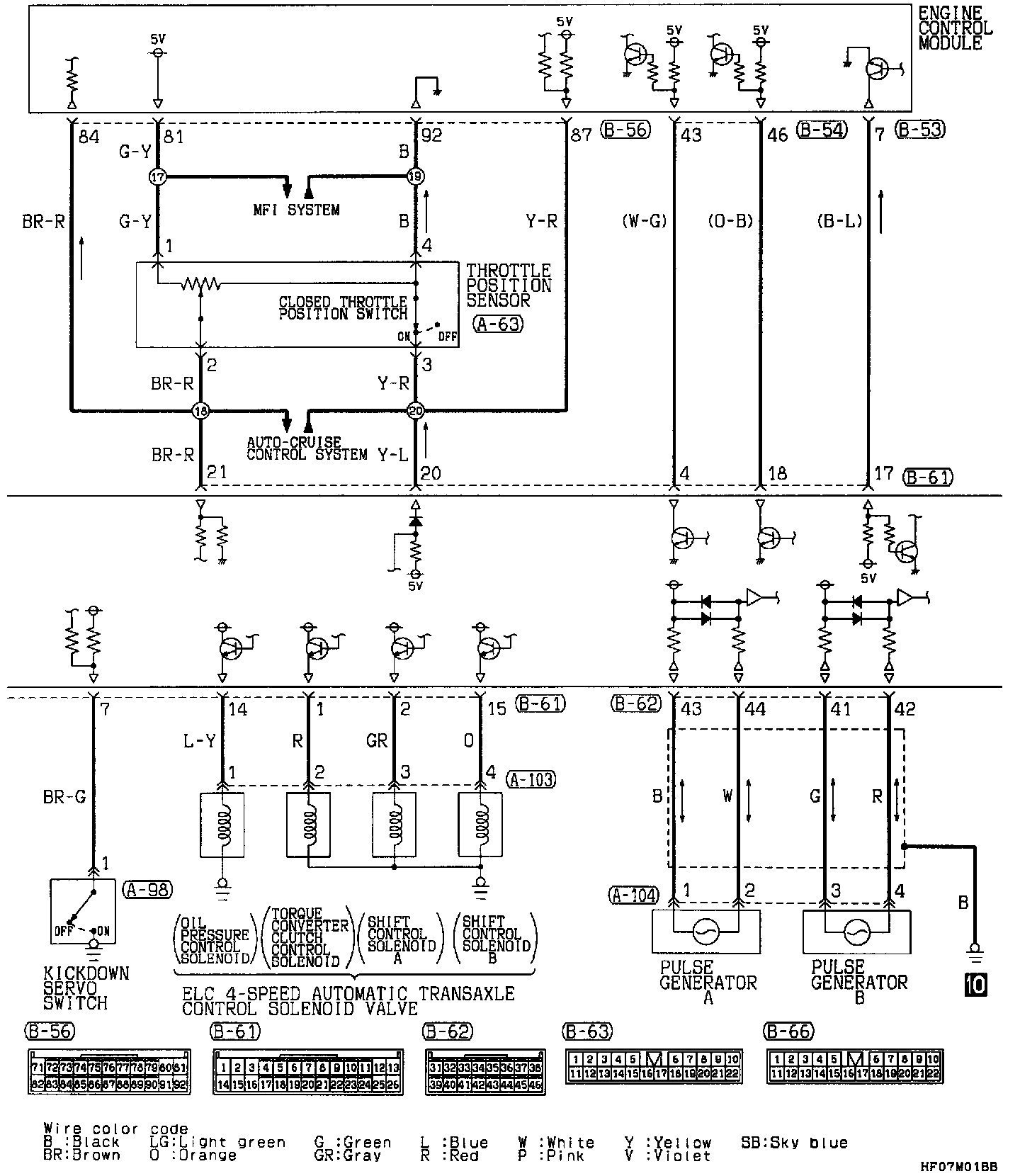

ELC 4-Speed Automatic Transaxle (Part 4 Of 6):

Dedicated Fuse
ELC 4-Speed Automatic Transaxle Control Module
- Oil Pressure Control Solenoid
- Shift Control Solenoid A & B
- Torque Converter Clutch Control Solenoid
- Engine Control Module
Kickdown Servo Switch
Pulse Generator A & B
Throttle Position Sensor

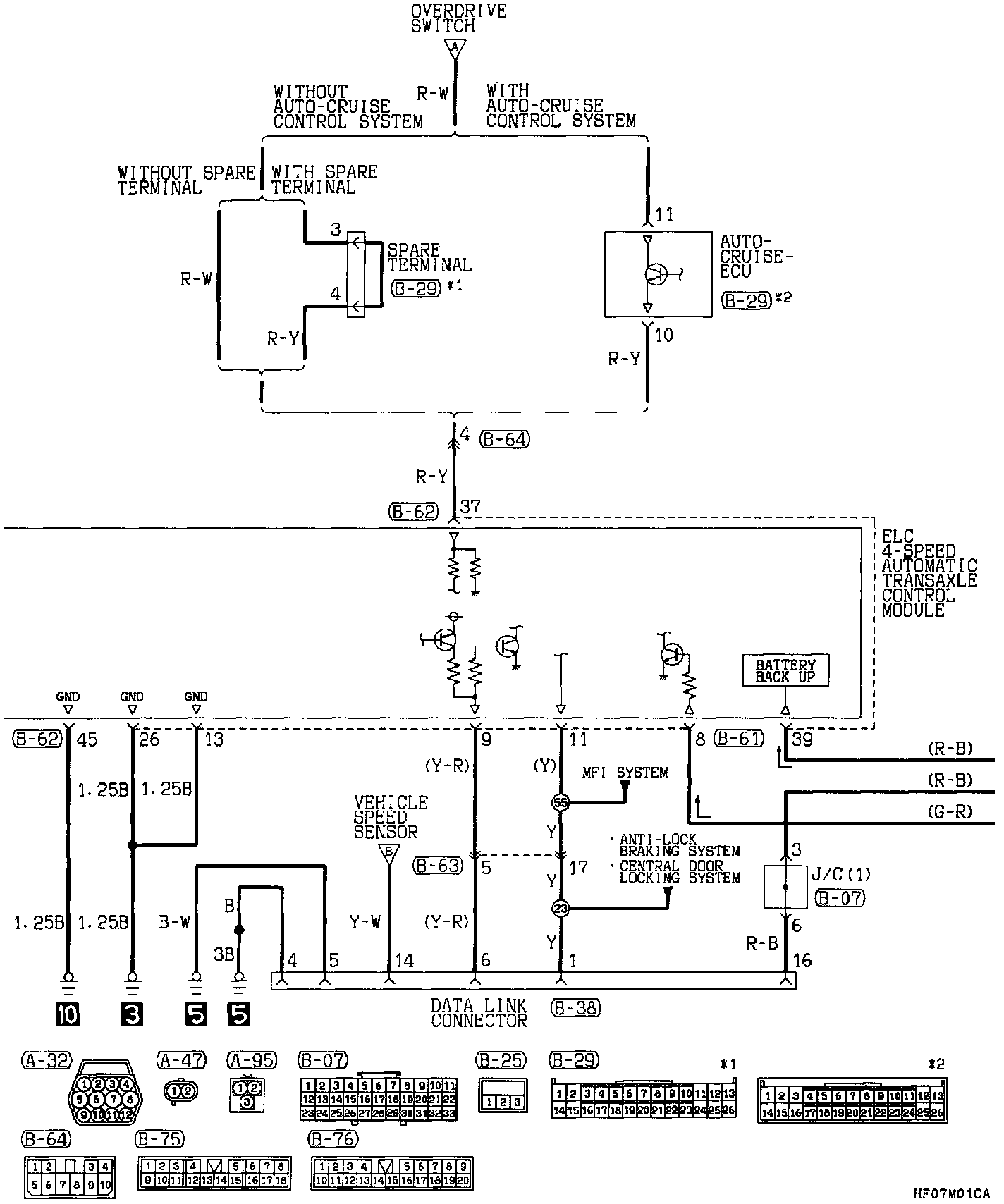

ELC 4-Speed Automatic Transaxle (Part 5 Of 6):

Auto Cruise ECU
Data Link Connector
ELC 4-Speed Automatic Transaxle Control Module
- Battery Back Up
J/C (1)
Spare Terminal

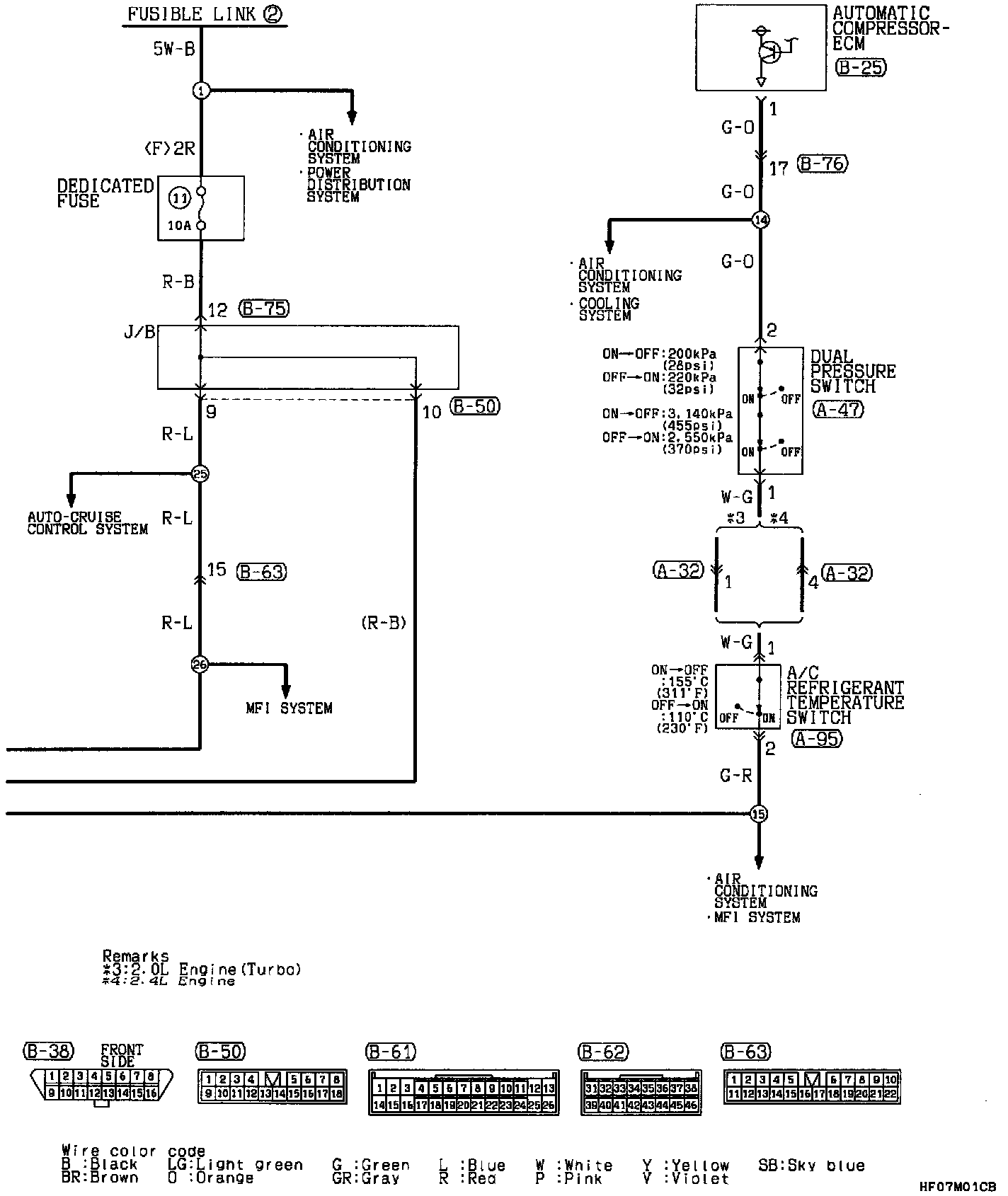

ELC 4-Speed Automatic Transaxle (Part 6 Of 6):

Automatic Compressor ECM
A/C Refrigerant Temperature Switch
Dedicated Fuse
Dual Pressure Switch
J/B
