Home >> Mitsubishi >> 1997 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Radio With Tape Player >> Without Amplifier

Without Amplifier

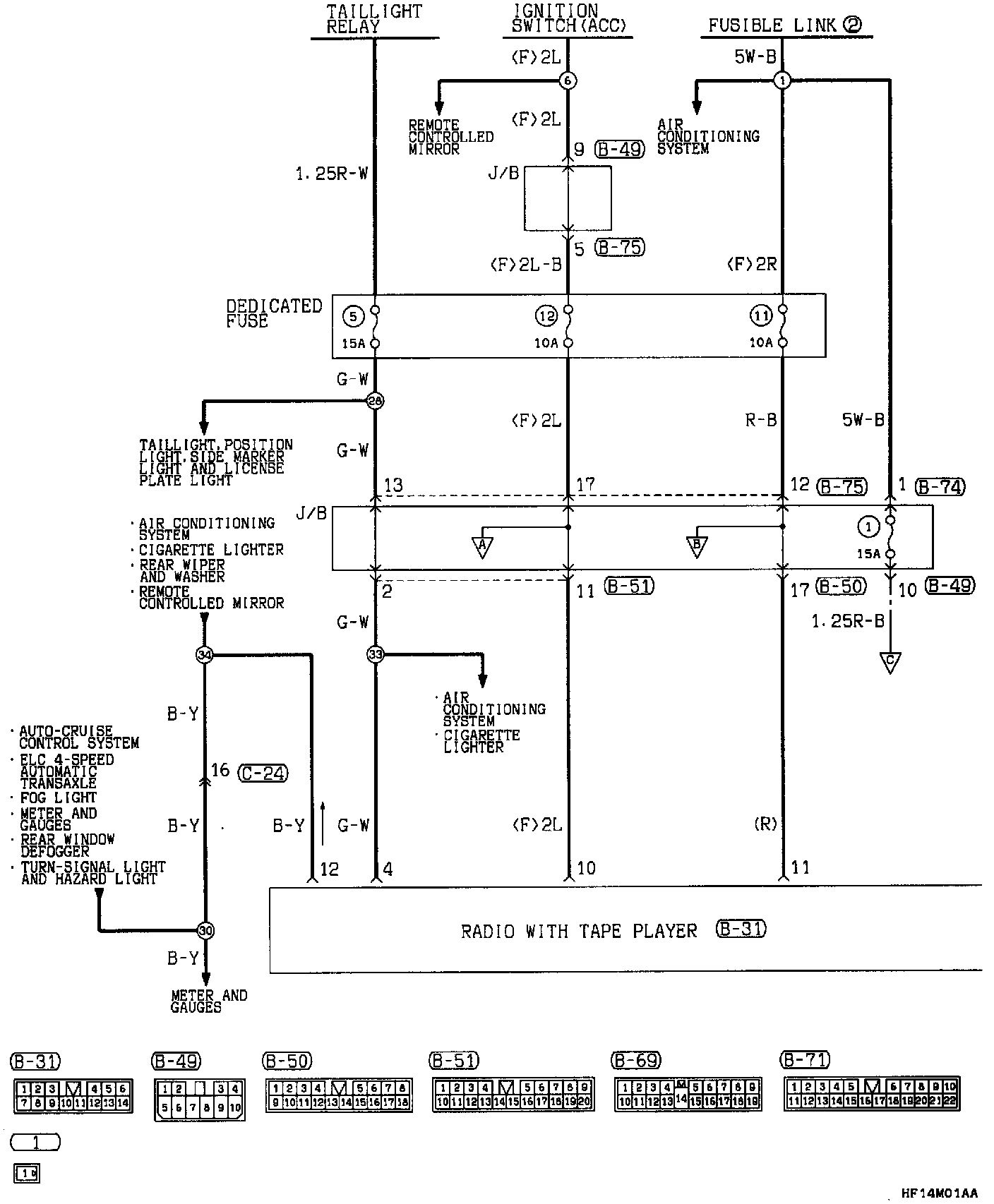

Radio And Tape Player Circuit (Part 1 Of 3):




Dedicated Fuse
J/B
Radio With Tape Player

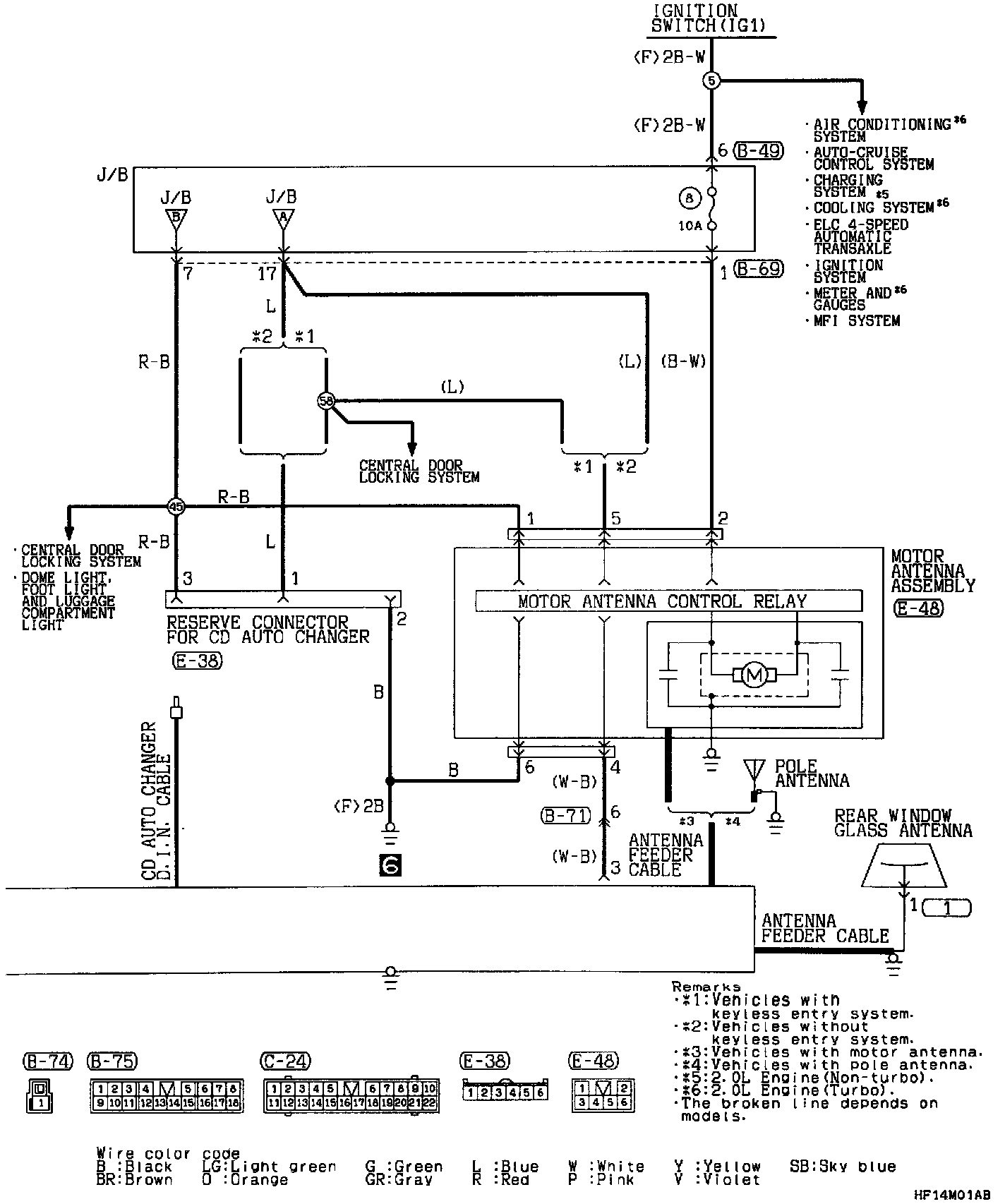

Radio And Tape Player Circuit (Part 2 Of 3):




J/B
Motor Antenna Assembly
- Motor Antenna Control Relay
Radio With Tape Player
Reserve Connector For CD Auto Changer

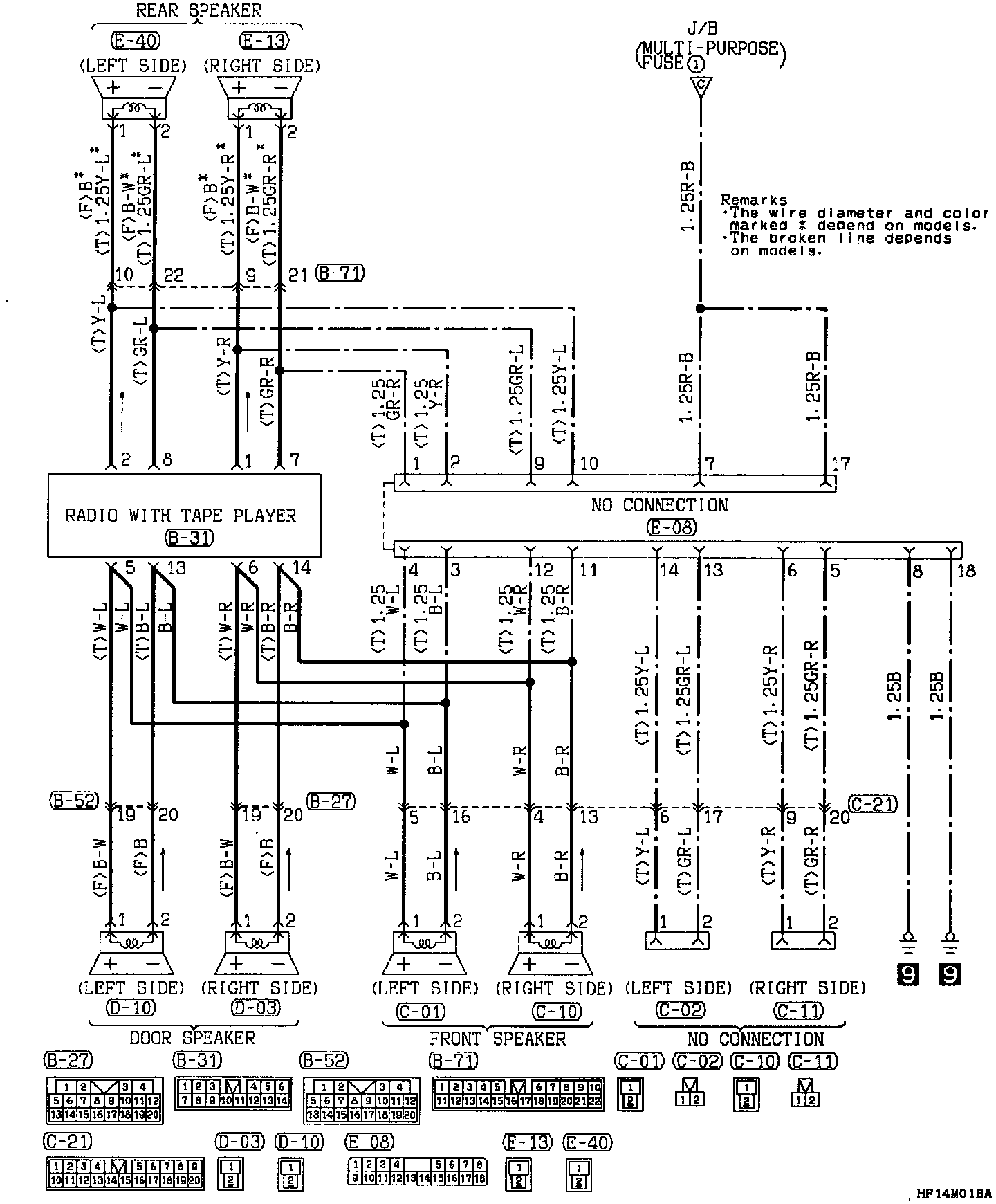

Radio And Tape Player Circuit (Part 3 Of 3):




Radio With Tape Player
