Vehicles With Keyless Entry System

Central Door Locking System (Part 1 Of 6):

Door Lock Power Relay 1, 2
Door Lock Switch (Left & Right Side)
J/B
J/C (2)

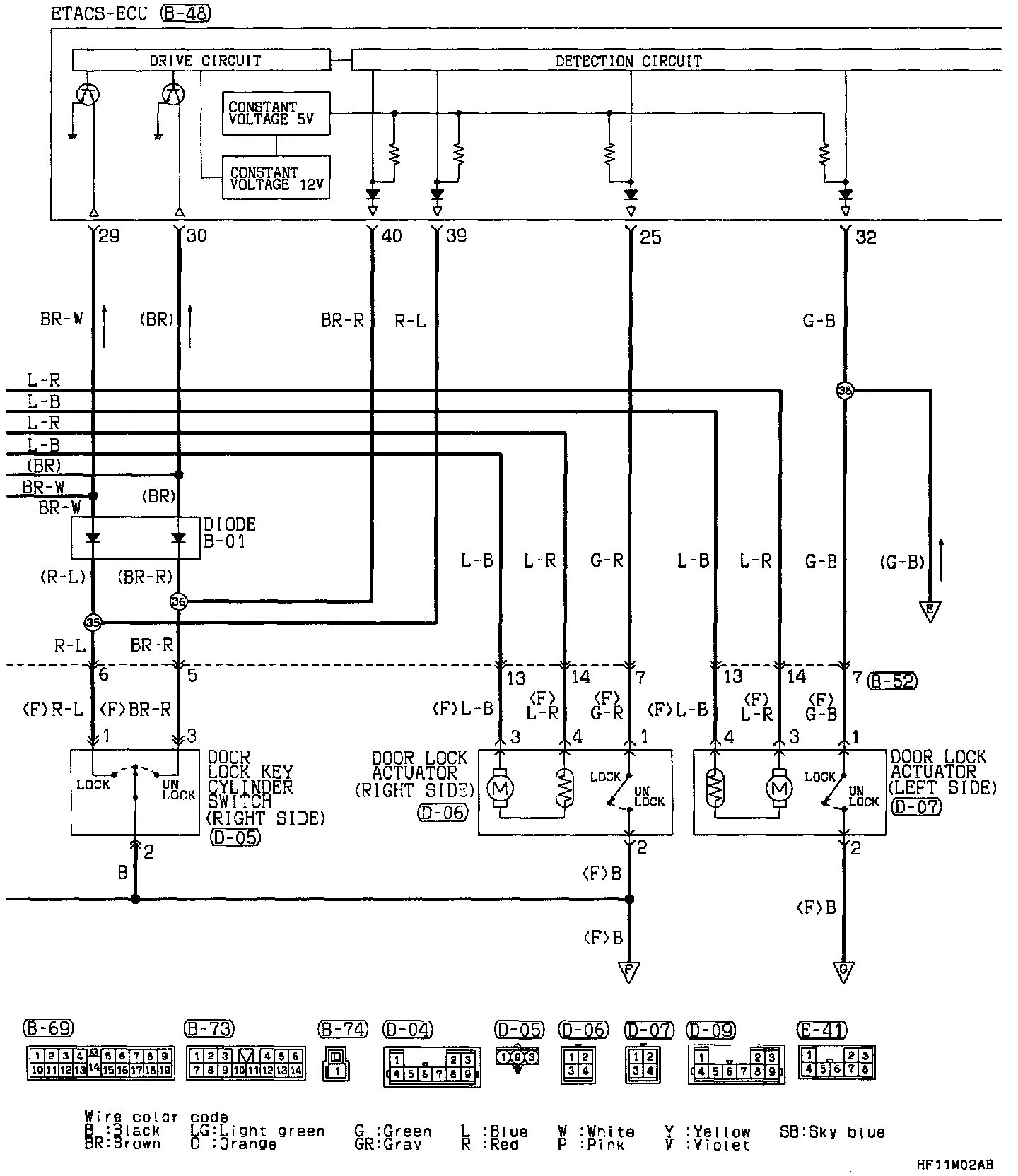

Central Door Locking System (Part 2 Of 6):

Diode
Door Lock Actuator(Left & Right Side)
Door Lock Key Cylinder Switch (Right Side)
ETACS-ECU

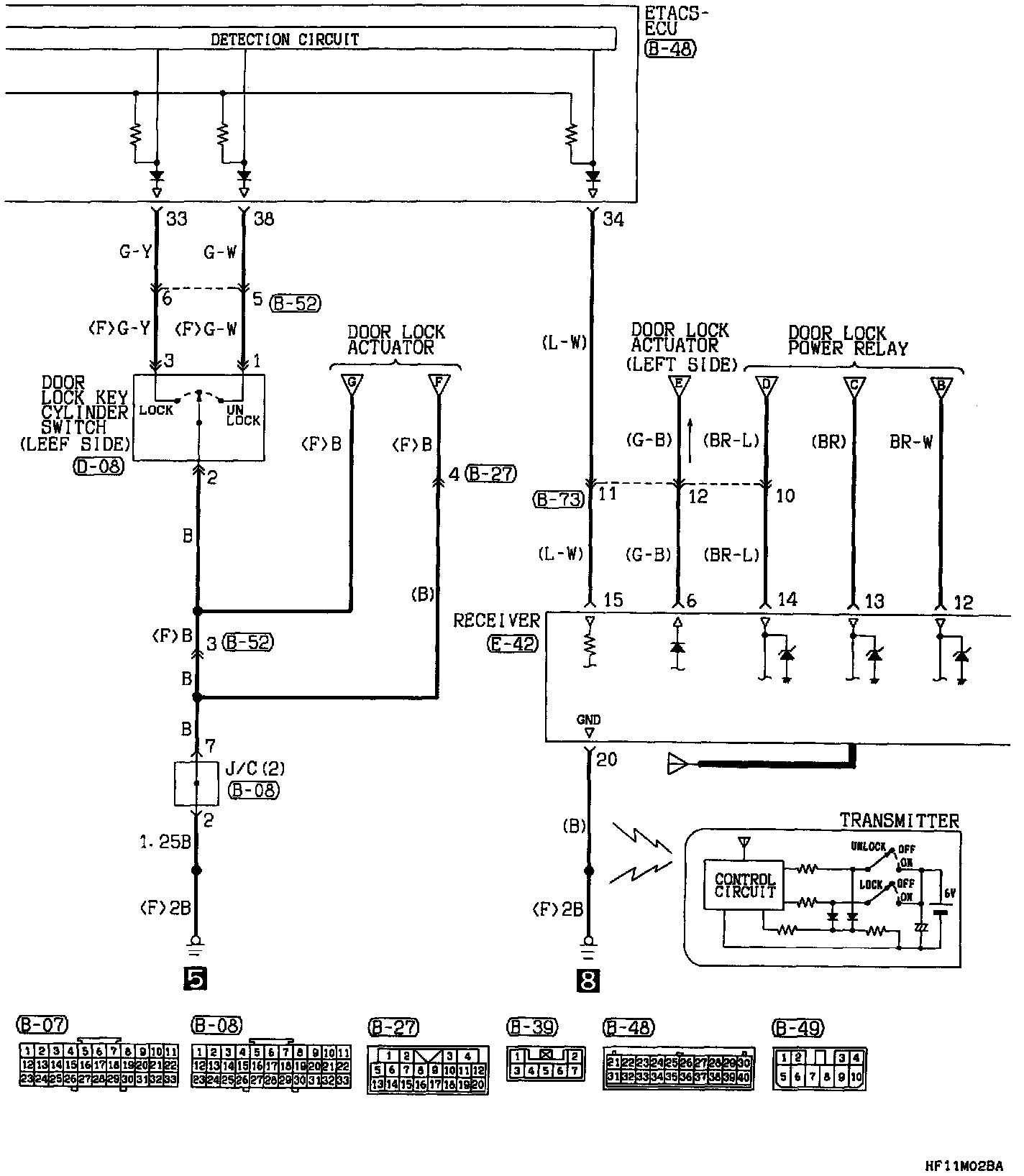

Central Door Locking System (Part 3 Of 6):

Door Lock Key Cylinder Switch (Left Side)
ETACS-ECU
J/C (2)
Receiver
Transmitter

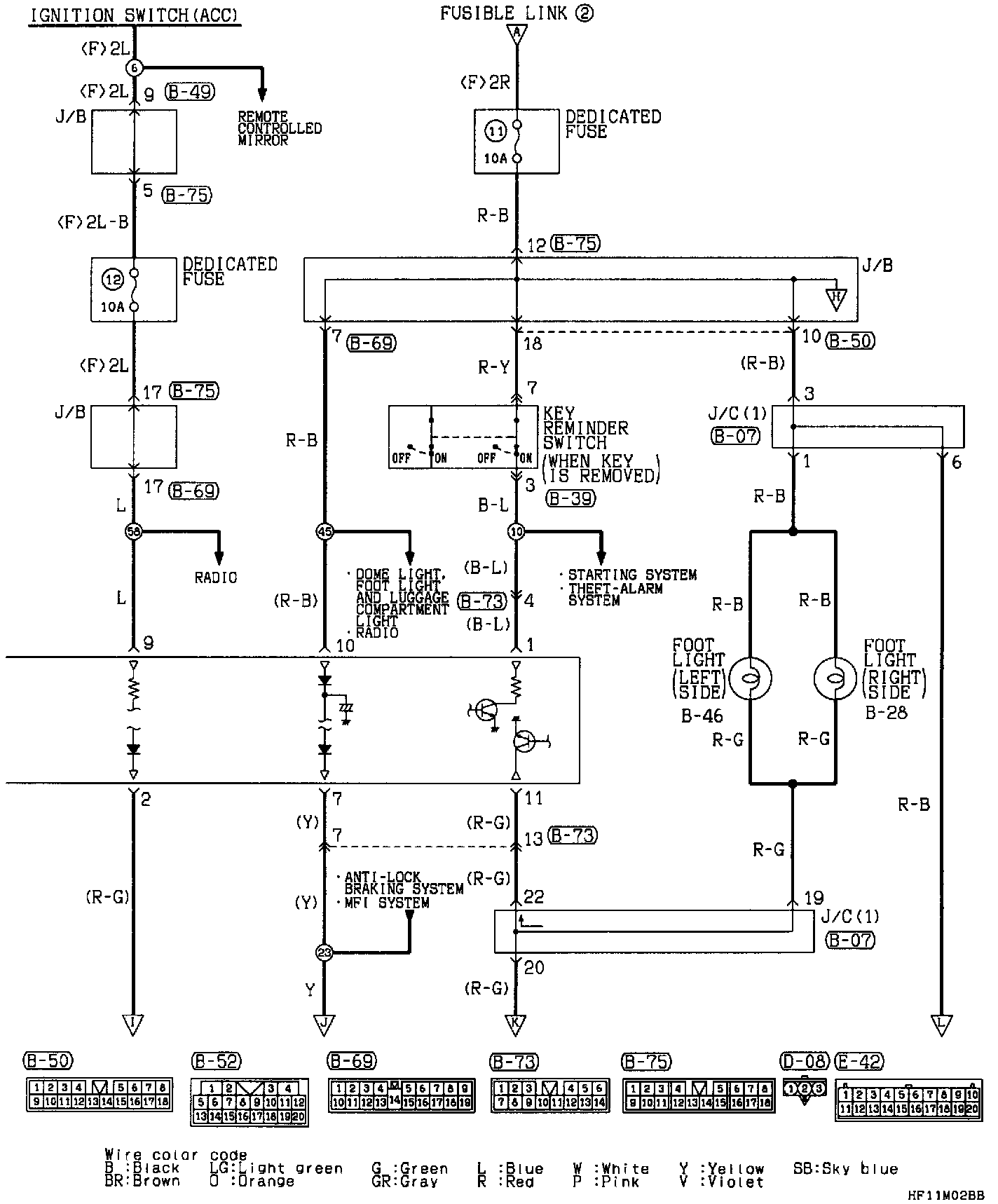

Central Door Locking System (Part 4 Of 6):

Dedicated Fuse
Foot Light (Left & Right Side)
J/B
J/C (1)
Key Reminder Switch (When Key Is Removed)
Receiver

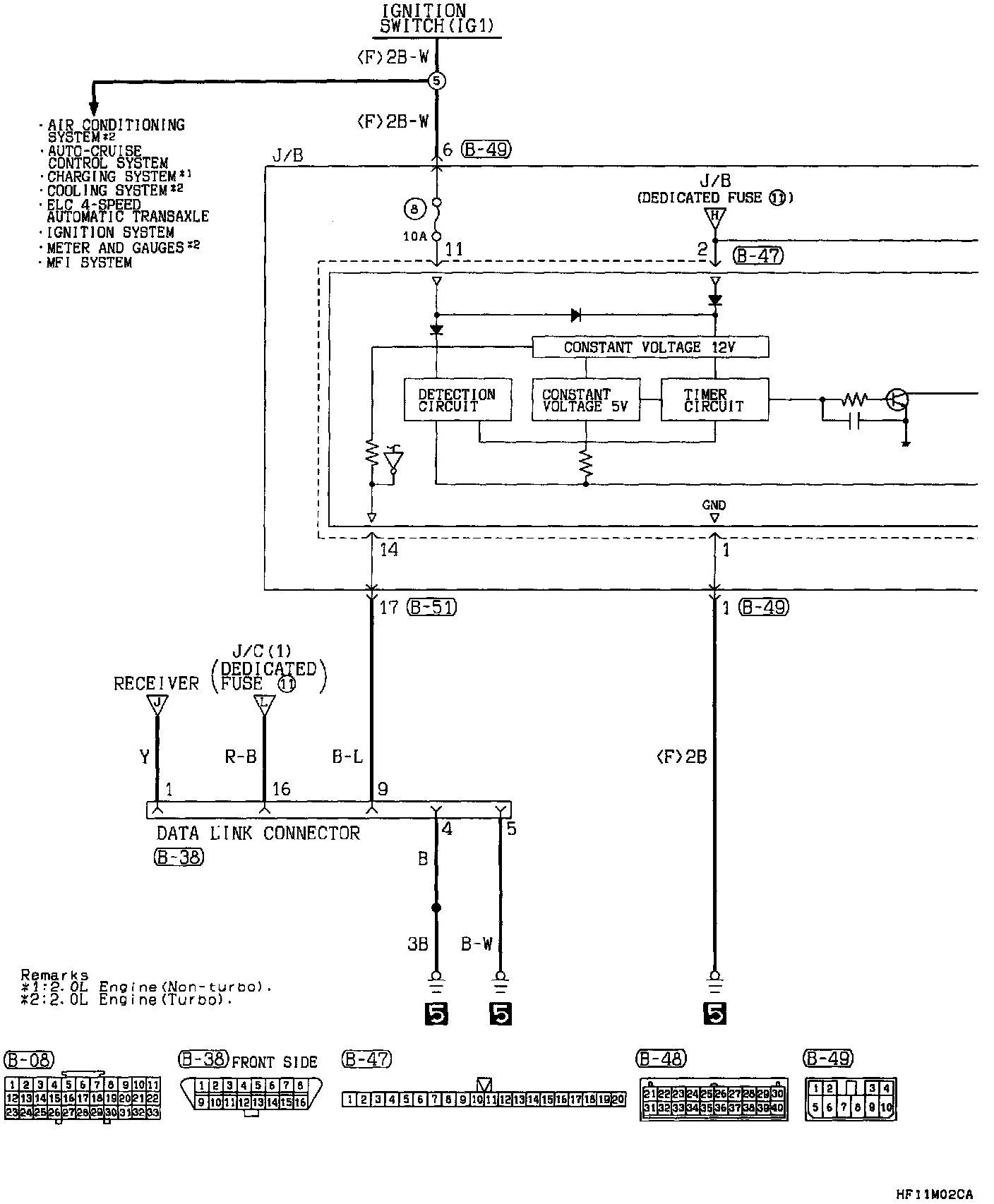

Central Door Locking System (Part 5 Of 6):

Data Link Connector
J/B

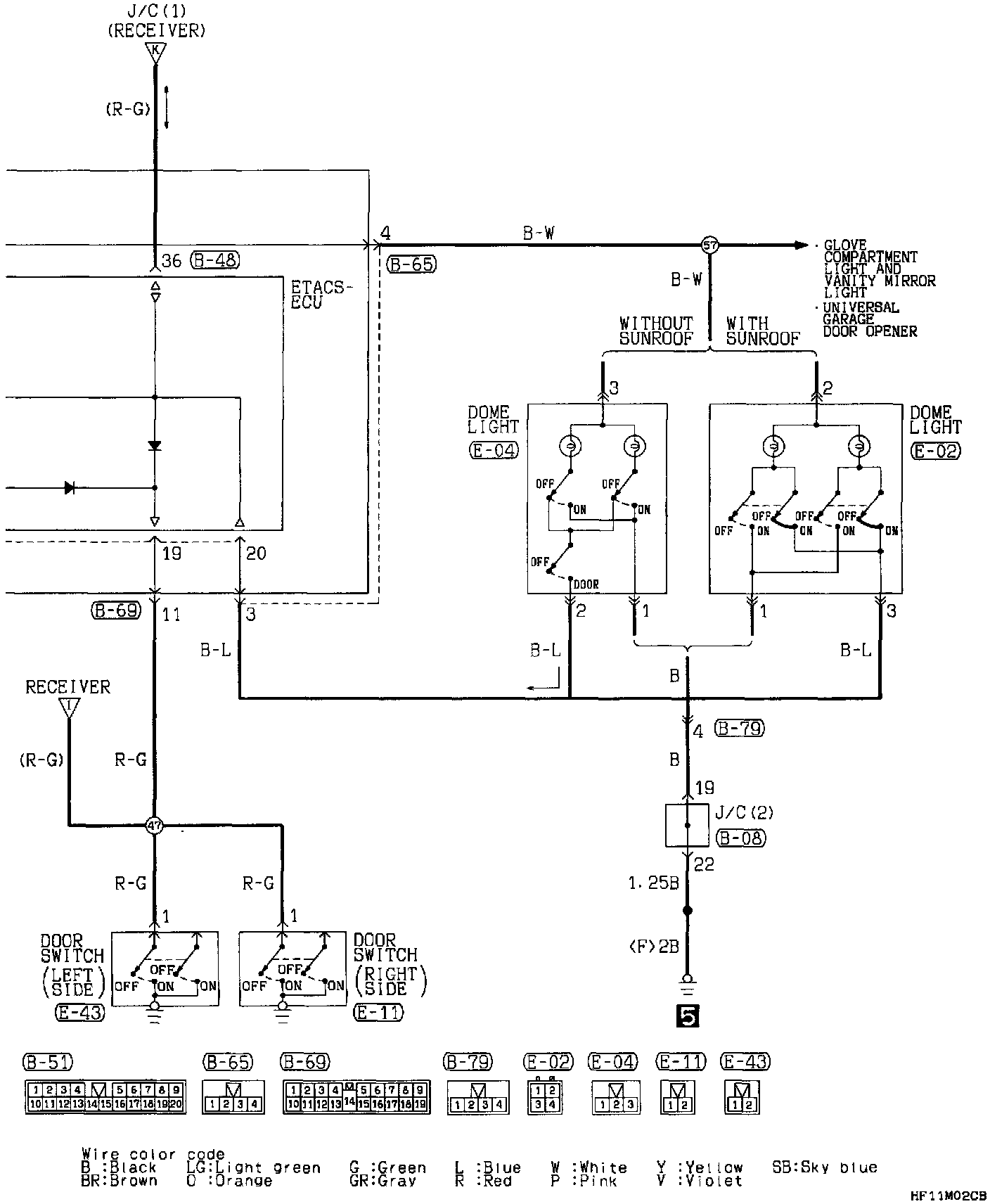

Central Door Locking System (Part 6 Of 6):

Dome Light
Door Switch (Left & Right Side)
J/B
J/C (2)
