Brake Lamp

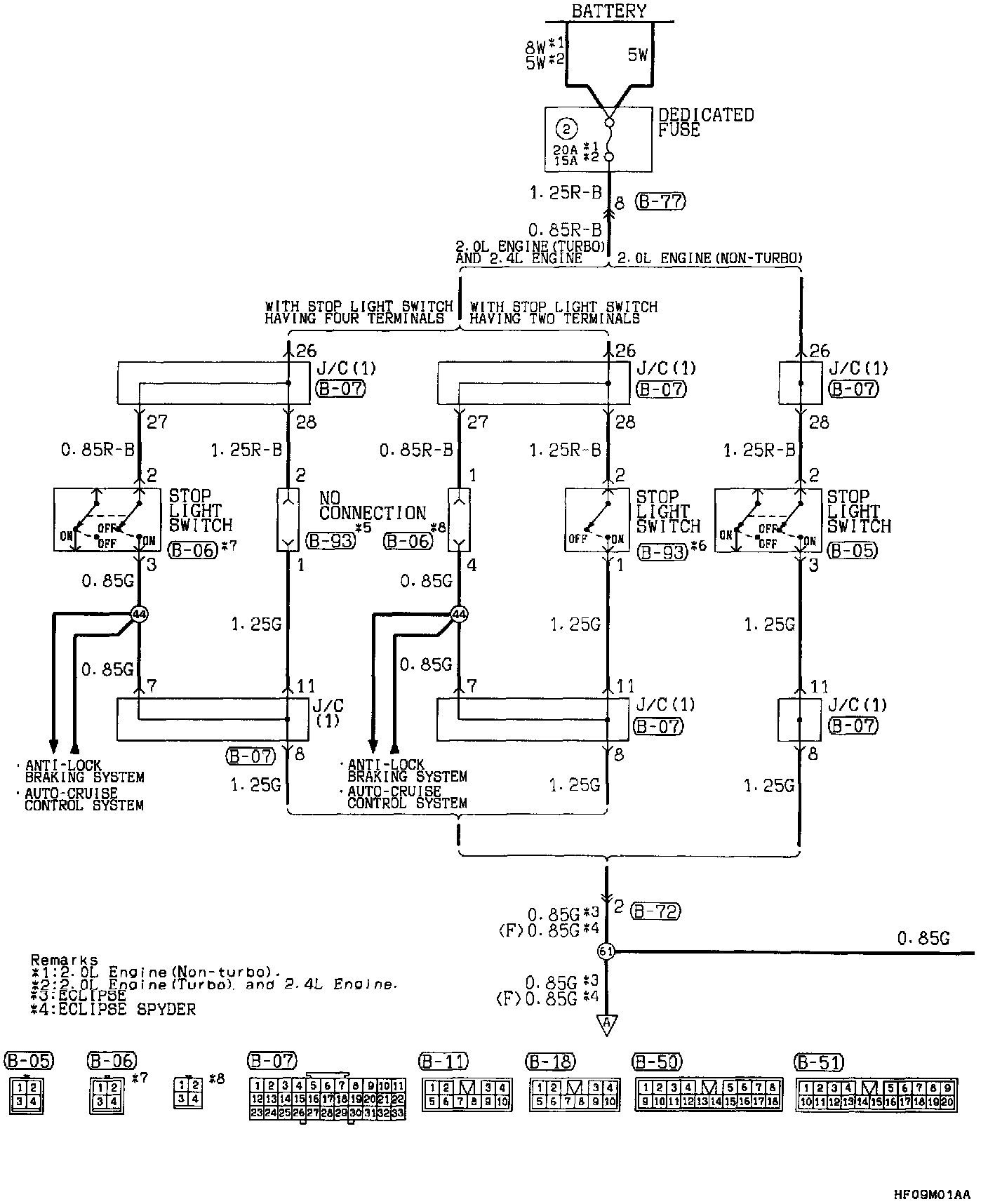

Stop Light Circuit (Part 1 Of 4):

Dedicated Fuse
J/C (1)
Stop Light Switch

Stop Light Circuit (Part 2 Of 4):

Column Switch (Turn-Signal Switch)
J/B
Turn-Signal and Hazard Flasher Unit

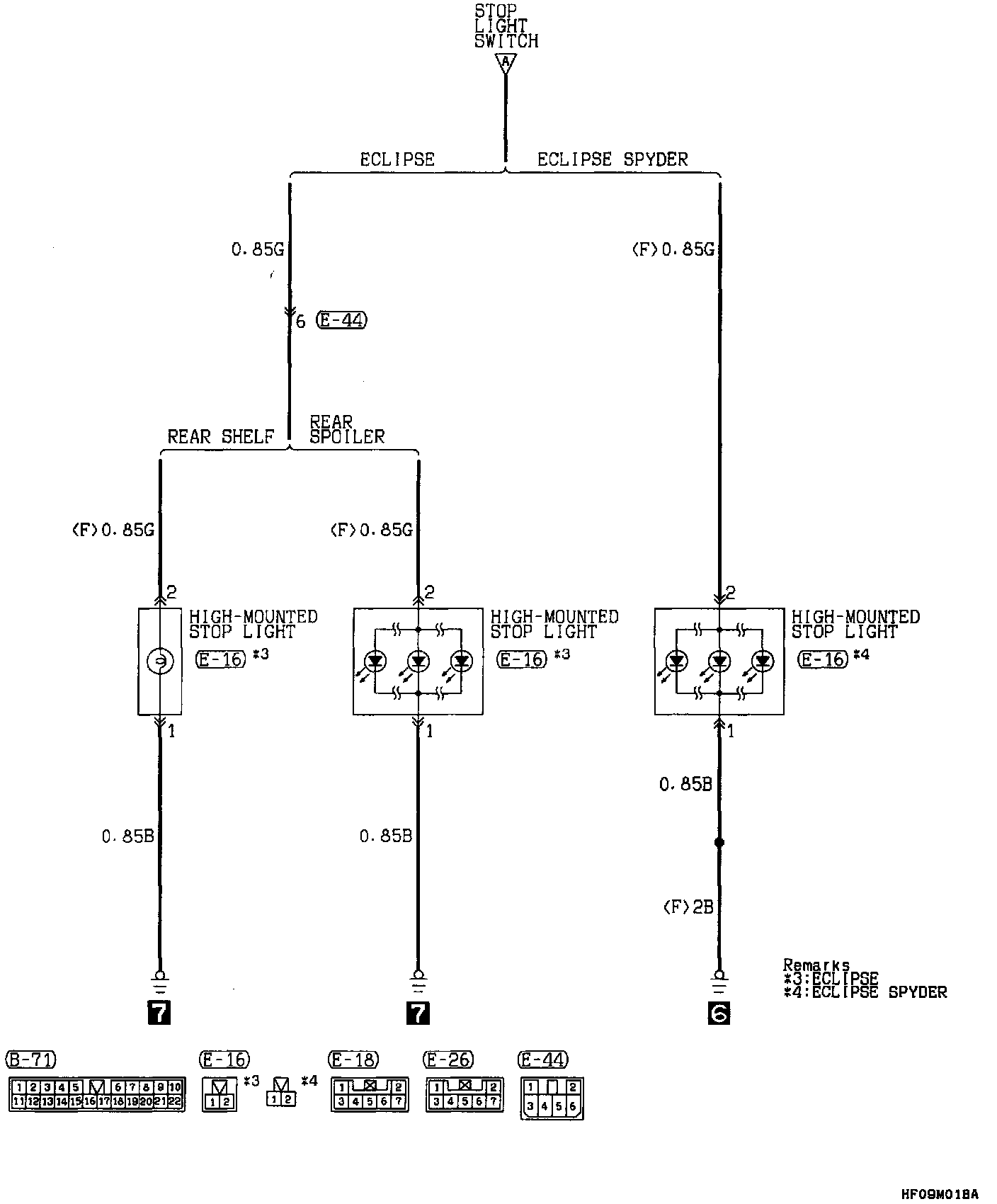

Stop Light Circuit (Part 3 Of 4):

High-Mounted Stop Light

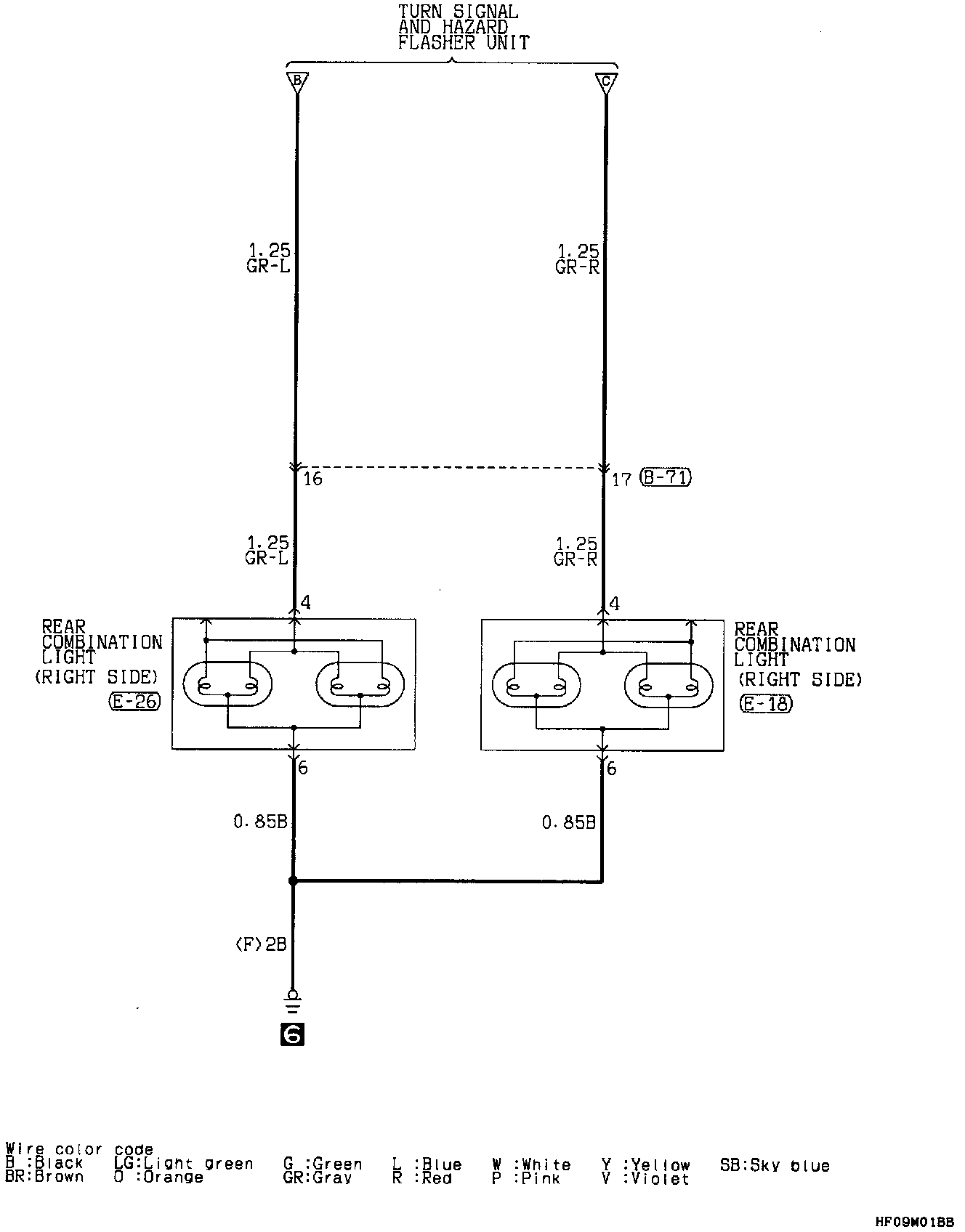

Stop Light Circuit (Part 4 Of 4):

Rear Combination Light (Right Side)
