Schematics

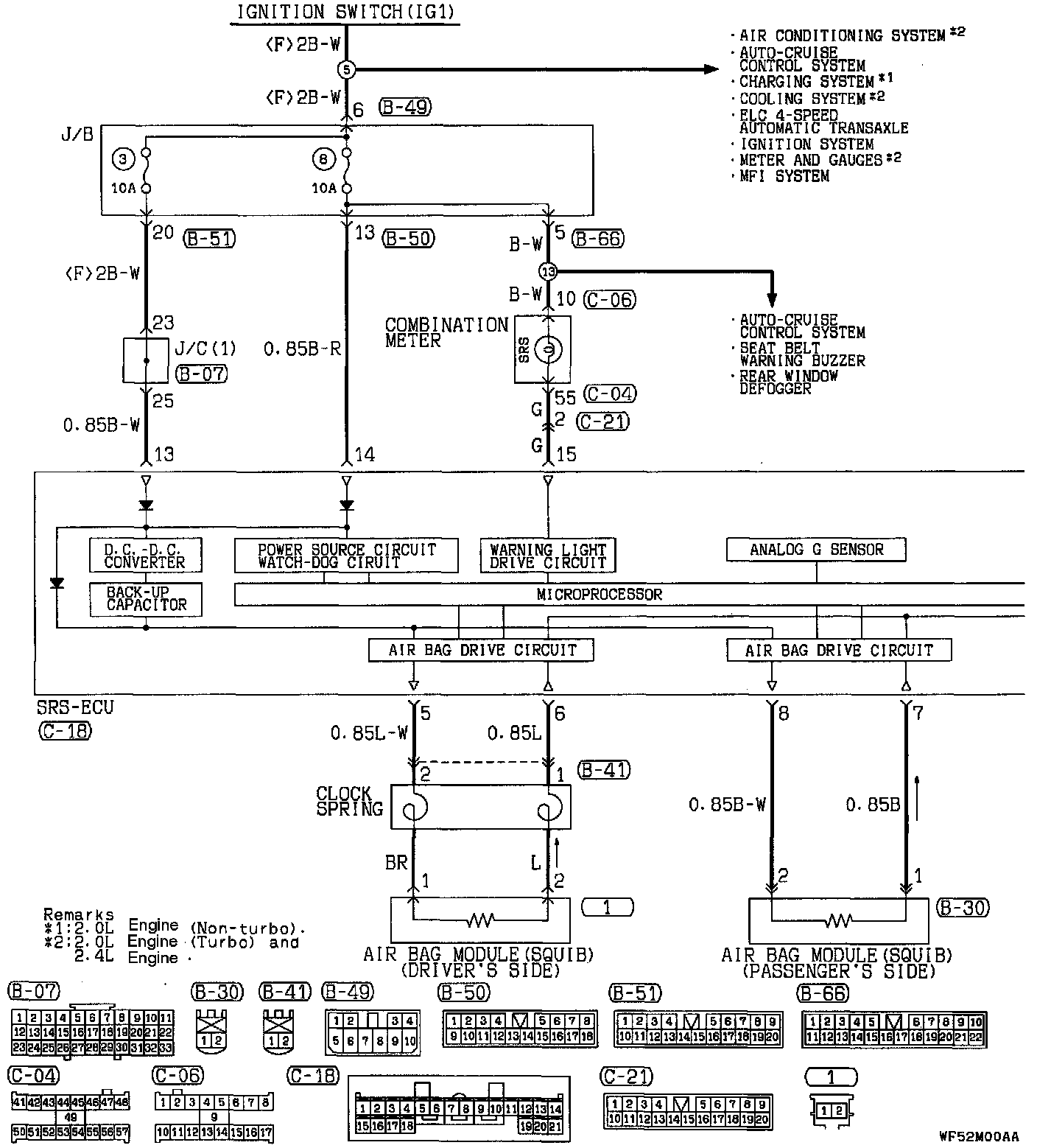

Circuit Diagram:

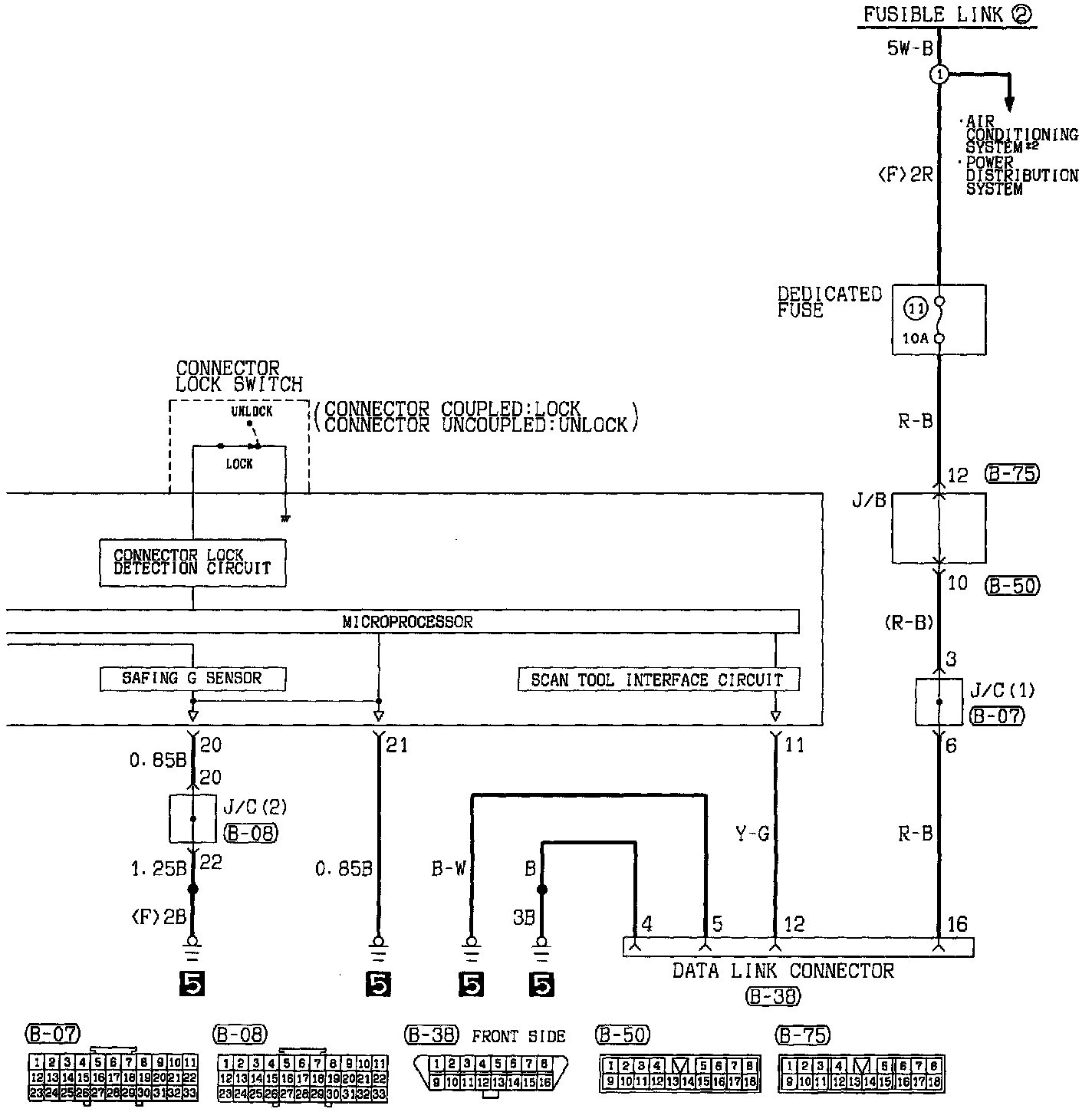

Circuit Diagram:

CAUTION:
1. Do not repair, splice or modify SRS wiring (except for specific repairs to the body wiring harness); replace wiring if necessary, after reading and following all precautions and procedures .
2. Do not use an analog ohmmeter to check SRS wiring or components; use only special tools and digital multi-meter.
