Sensors

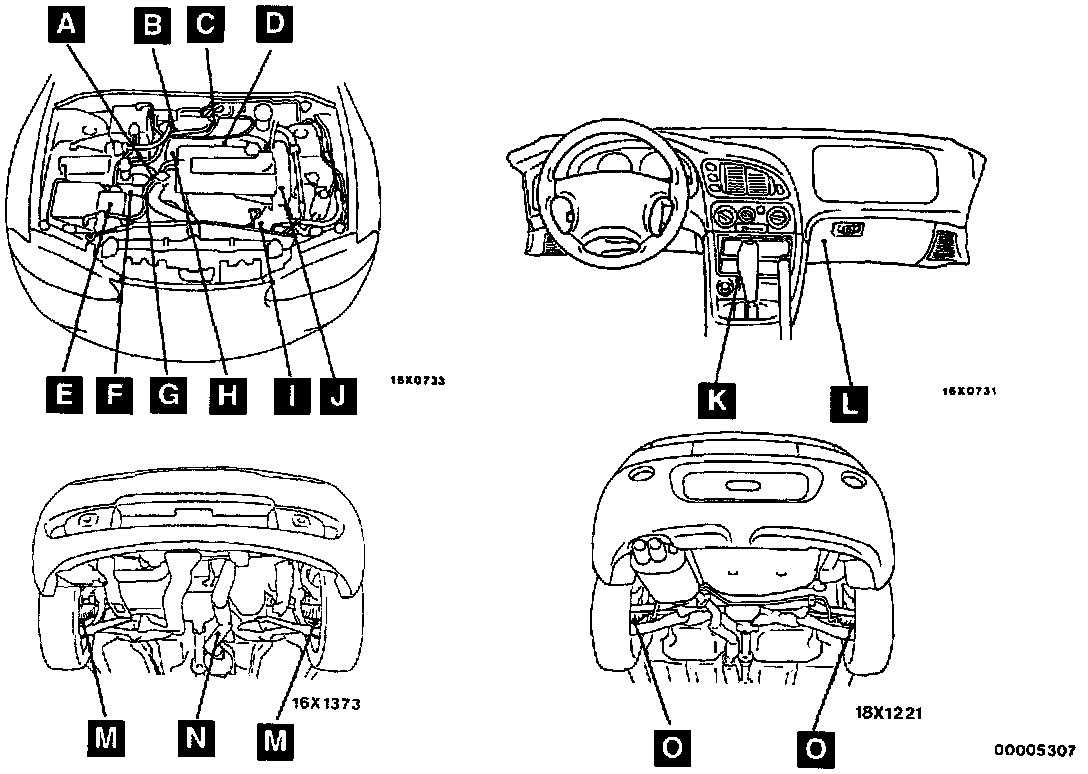

Sensor Location Overviews:

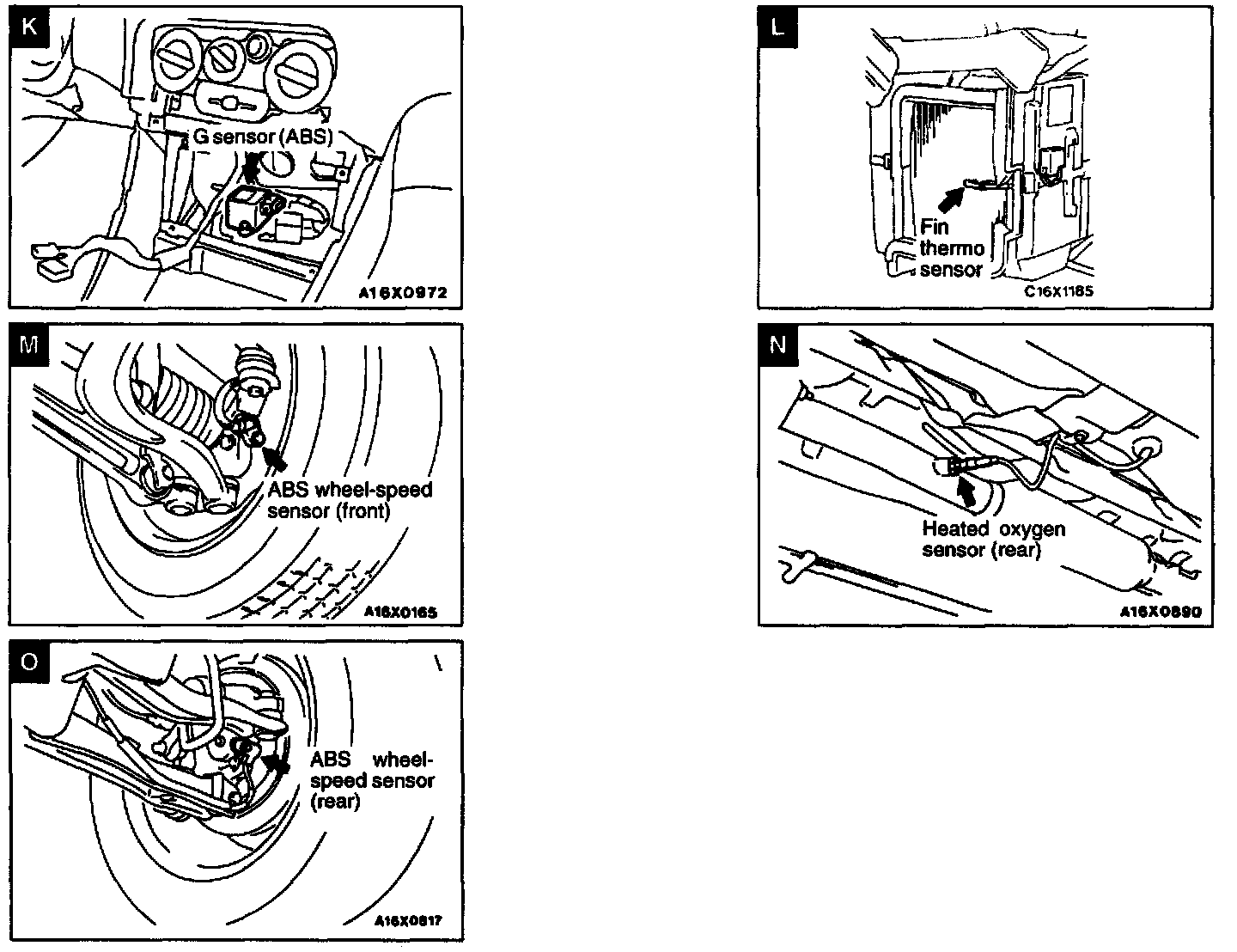

Sensor Location Views A-B:

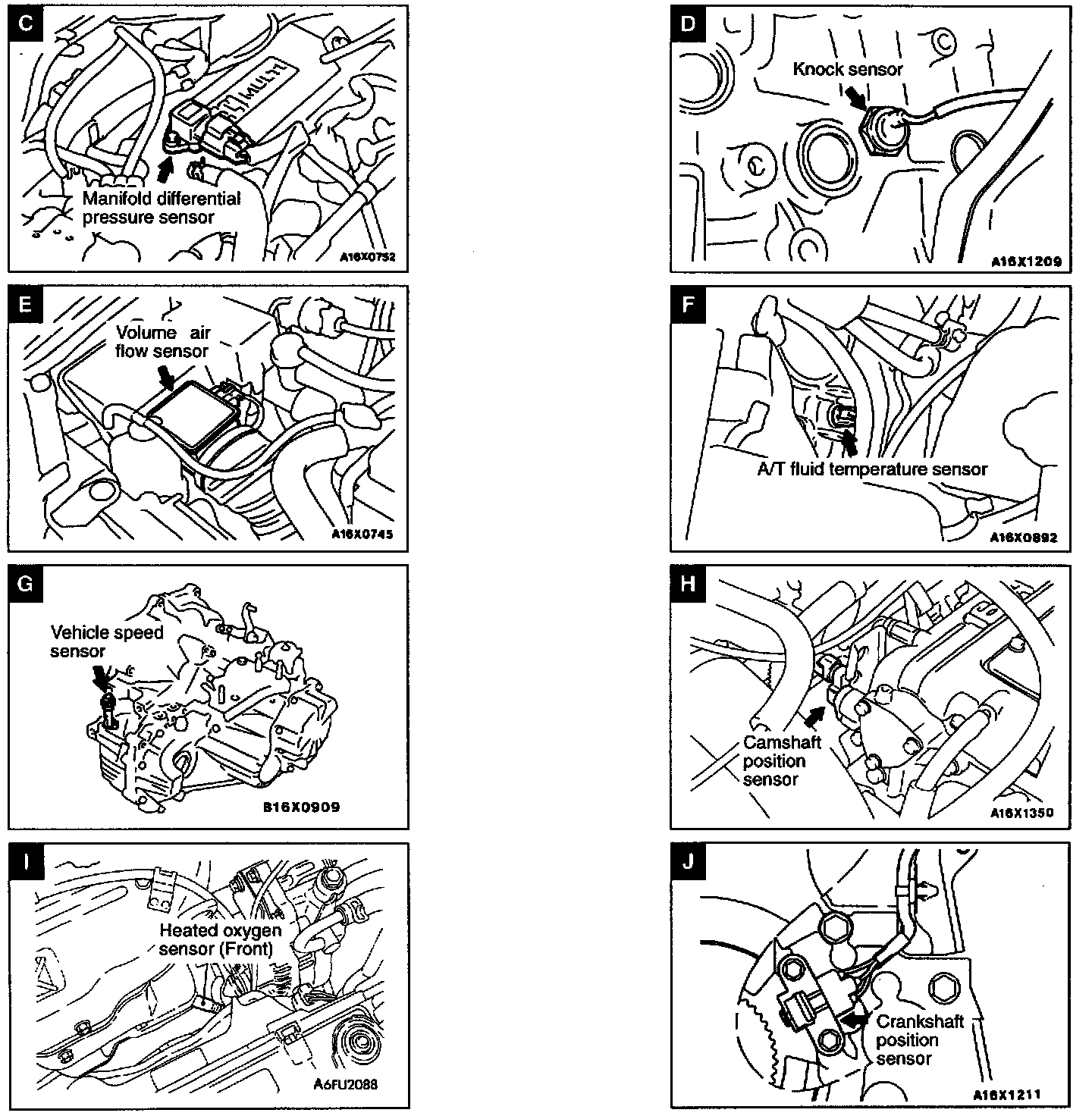

Sensor Location Views C-J:

Sensor Location Views K-O:

SENSOR VIEW

ABS Wheel Speed Sensor(front) M
ABS Wheel Speed Sensor(rear) O
A/T Fluid Temperature Sensor F
Camshaft Position Sensor H
Crankshaft Position Sensor J
Engine Coolant Temperature Sensor A
Fin Thermo Sensor (A/C) L
G Sensor (ABS) K
Heated Oxygen Sensor (front) I
Heated Oxygen Sensor (rear) N
Knock Sensor D
Manifold Differential Pressure Sensor C
Throttle Position Sensor B
Vehicle Speed Sensor (M/T) G
Volume Air Flow Sensor E
