Ground Locations 1 - 13

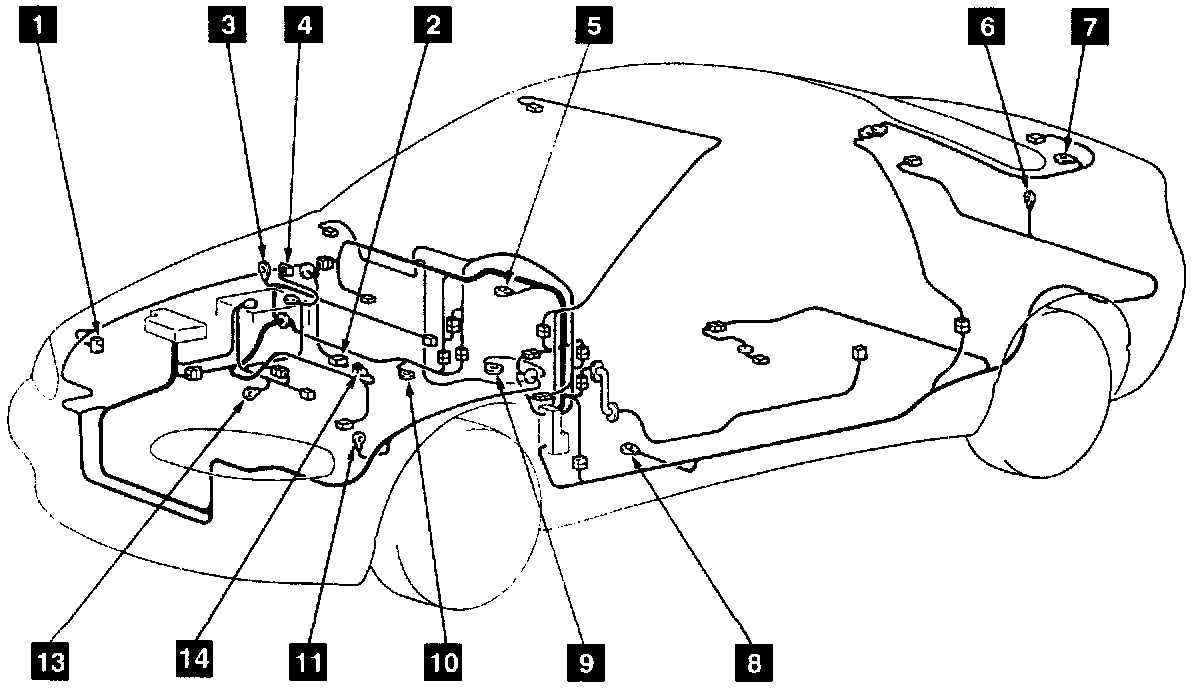

Grounding Locations Overall View:

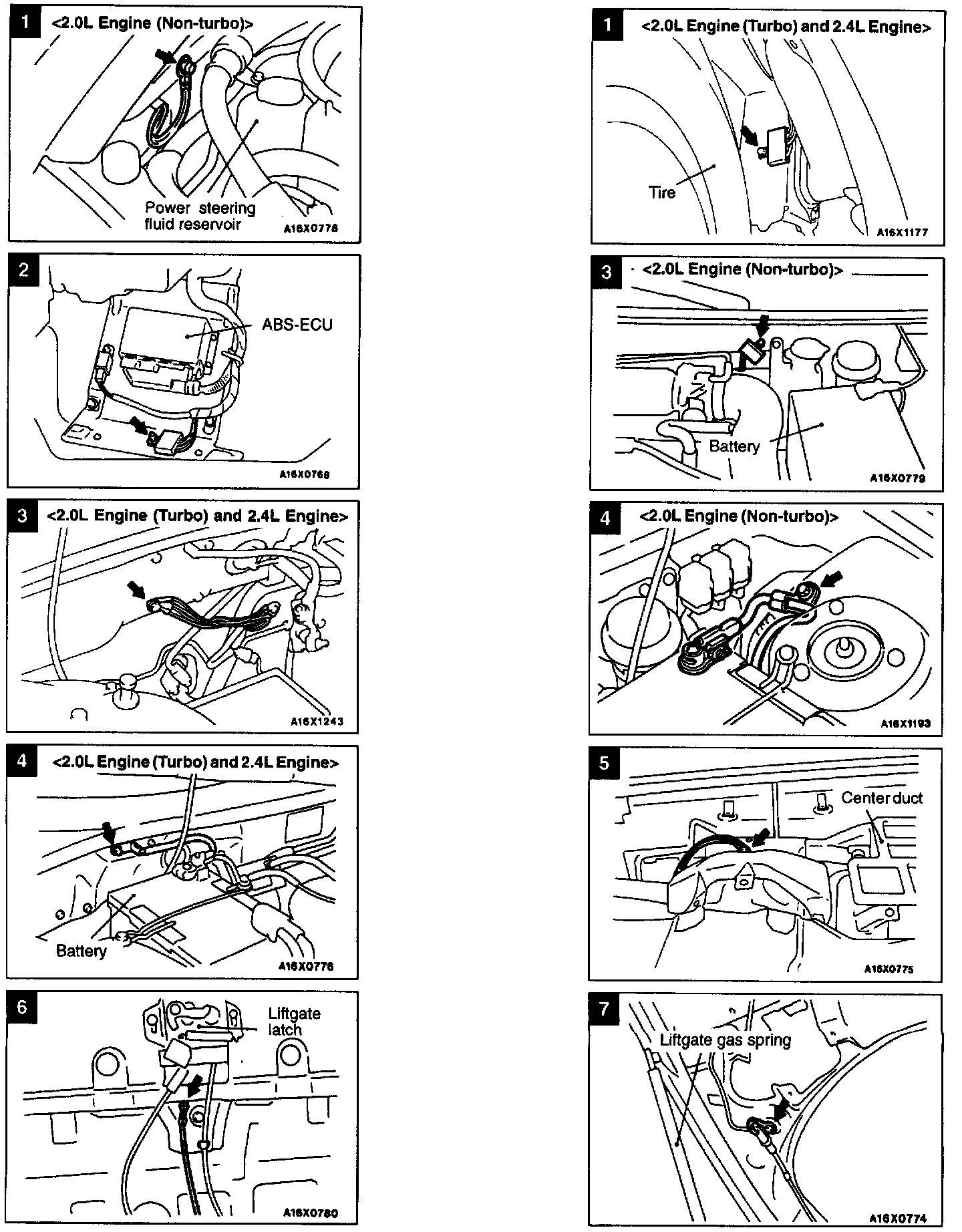

Grounding Locations View 1 - 7:




Grounding Locations View 8 - 14:





NOTE: Same ground numbers are used in the circuit diagrams.
