Control Unit

Solenoid And Solenoid Valve Overview:

Solenoid And Solenoid Valve Views A-J:

Solenoid And Solenoid Valve Views K-N:

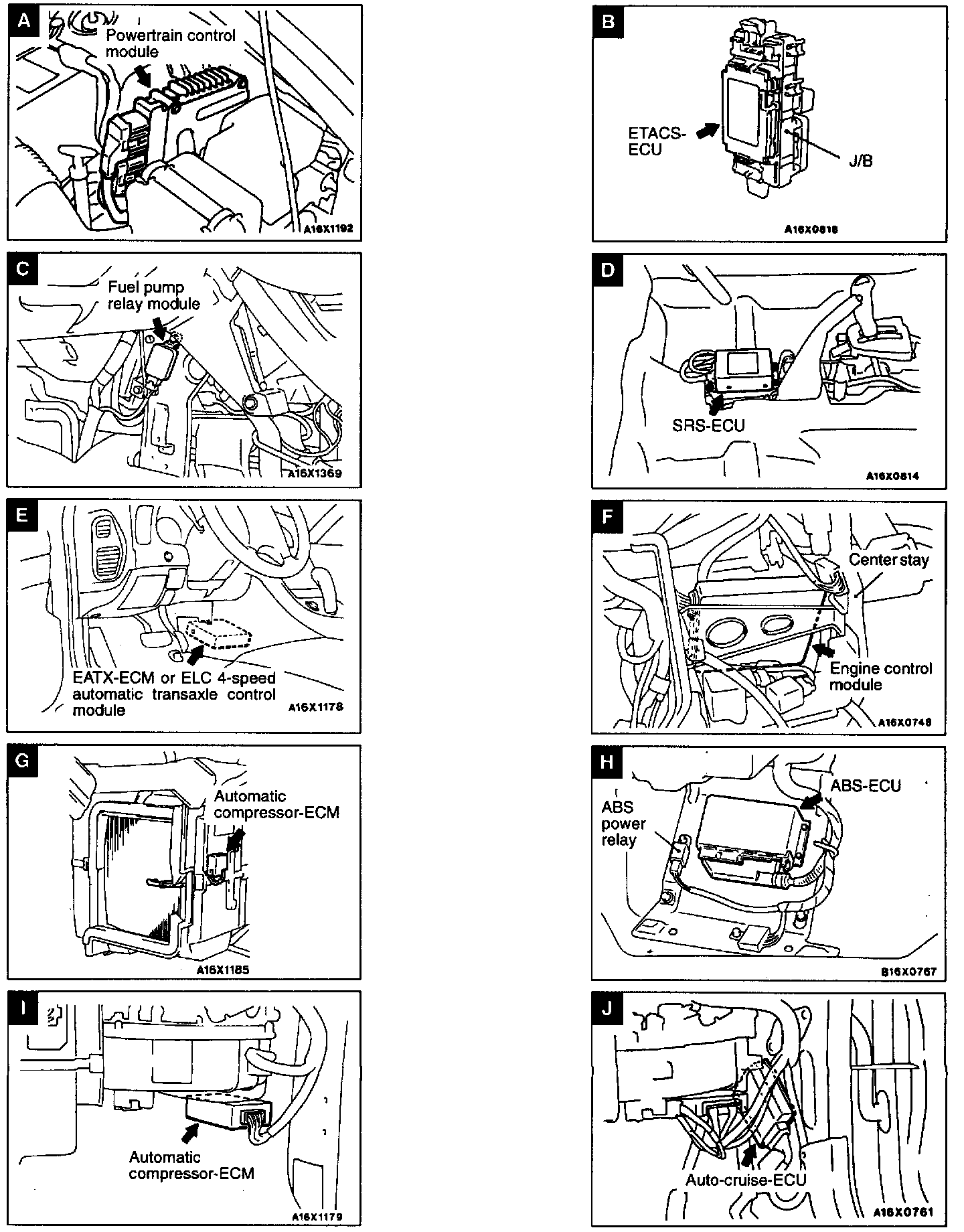

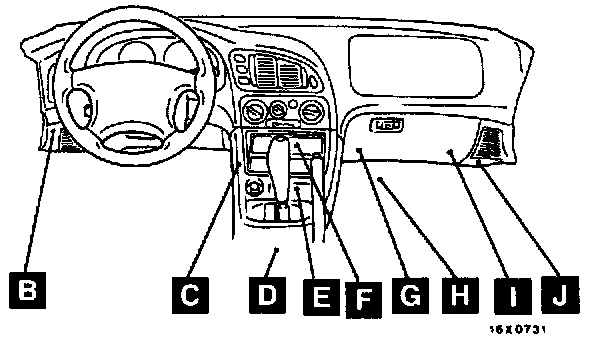

CONTROL UNIT VIEW

ABS-ECU H
Automatic Compressor-ECM I,G
Auto-Cruise ECU J

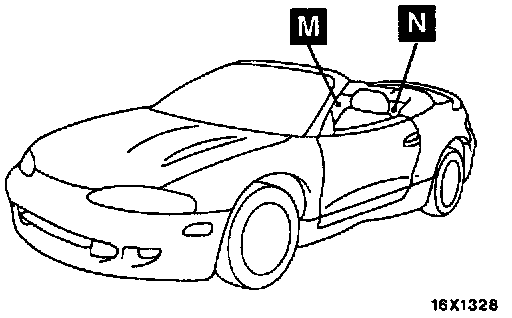

Convertible Top Control Module N
EATX-ECM E
ECL 4-Speed Automatic Transaxle E
Control Module
Engine Control Module F
ETACS-ECU B
Fuel Pump Relay Module C

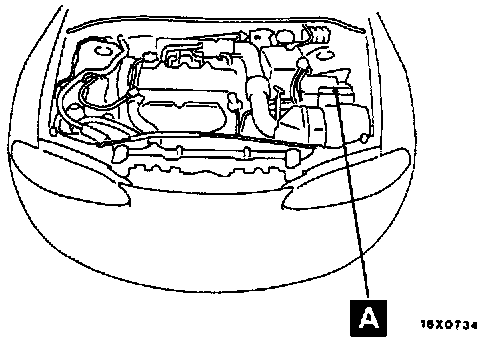

Powertrain Control Module A

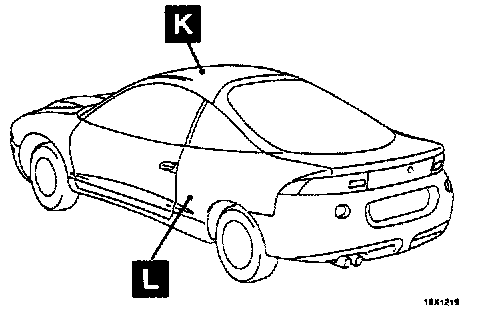

Receiver L,M
SRS-ECU D
Sunroof-ECU K
