Parking Brake Cable: Service and Repair

REMOVAL AND INSTALLATION

Parking Brake Cable Assembly (Drum-In-Disc Brake):

1. Remove the floor console.

CAUTION: SRS When removing and installing the floor console, do not let it bump against the SRS-ECU or other components.

2. Remove the rear brake lining assembly and support the caliper with wire.
3. Remove the parking brake cable.
4. Reverse procedure to install, noting the following:
- Ensuring that the parking brake stroke adjustment is within specifications. Adjustments

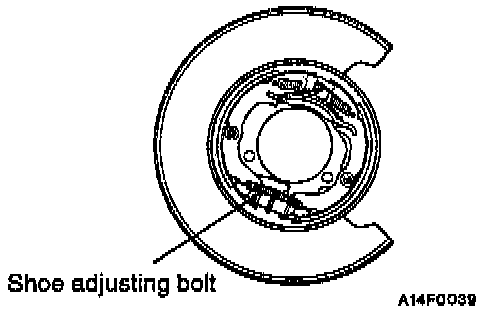

Shoe Adjusting Bolt:

- Install the adjuster so that the shoe adjusting bolt of left hand wheel is attached towards the front of the vehicle, and the shoe adjusting bolt of right hand wheel is towards the rear of the vehicle.

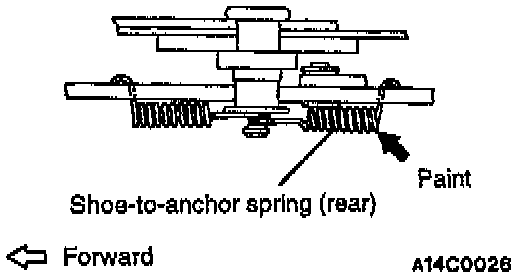

Shoe-To-Anchor Spring (Rear):

- The load on the respective shoe-to-anchor springs is different, so the spring in the figure has been painted.

NOTE: The figure shows the left wheel for the right wheel, the position is symmetrical.
