Without Antilock Brakes

REMOVAL AND INSTALLATION

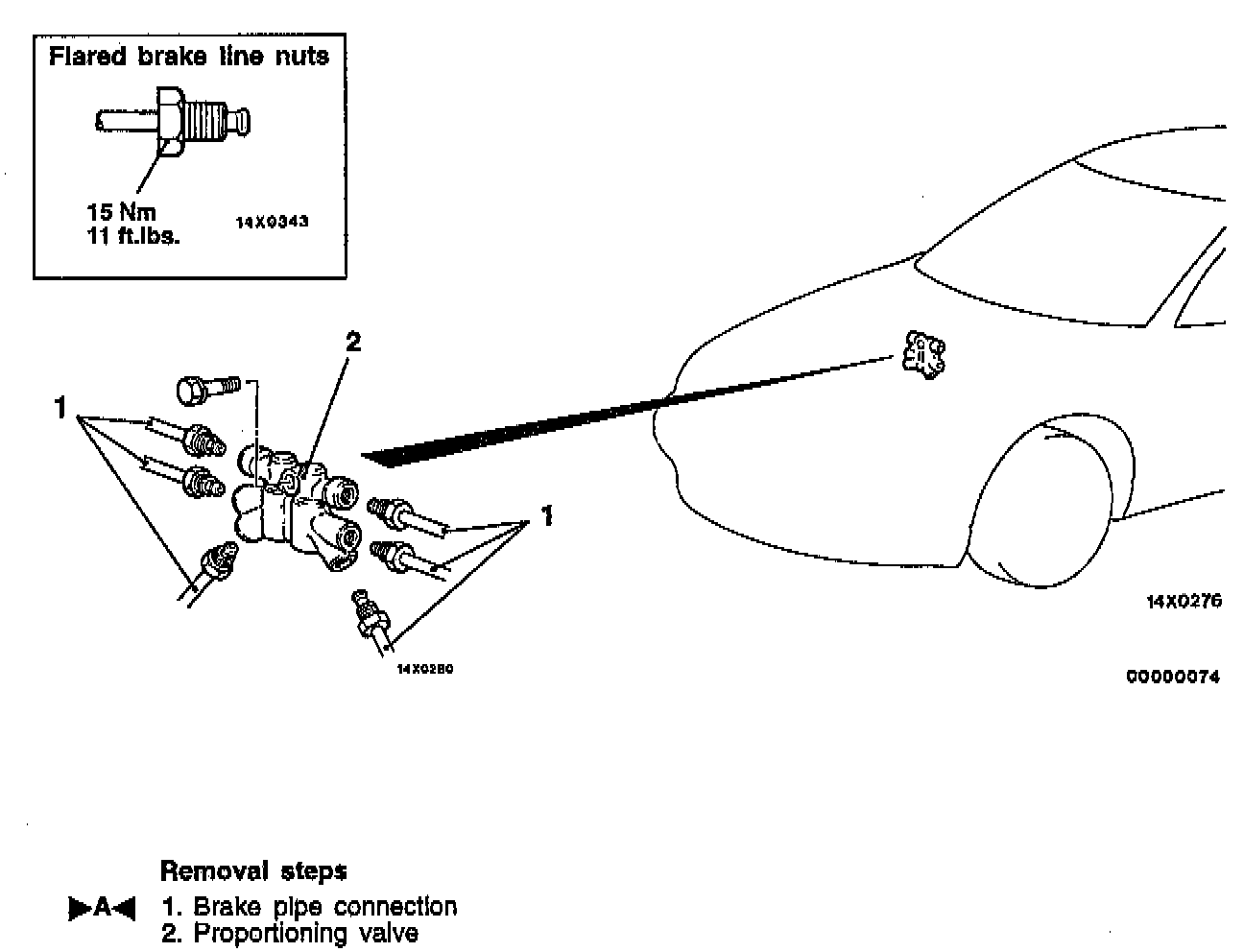

Proportioning Valve Assembly:

1. Drain the brake fluid.
2. Remove the link assembly mounting bolts. Refer to "Cruise Control."
3. Disconnect the brake pipes.
4. Remove the proportioning valve.

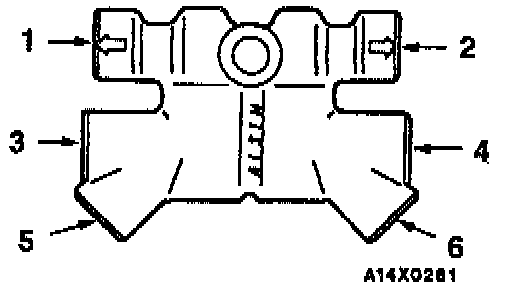

Brake Pipe Connection:

- Reverse procedure to install, noting the following order that the brake pipes should be installed:
1. LH rear
2. RH rear
3. RH front
4. LH front
5. Master cylinder for right front and left rear (secondary.)
6. Master cylinder for left front and right rear (primary.)
- Bleed air from the hydraulic system. Refer to "Brake Bleeding"
