With Antilock Brakes (ABS)

REMOVAL AND INSTALLATION

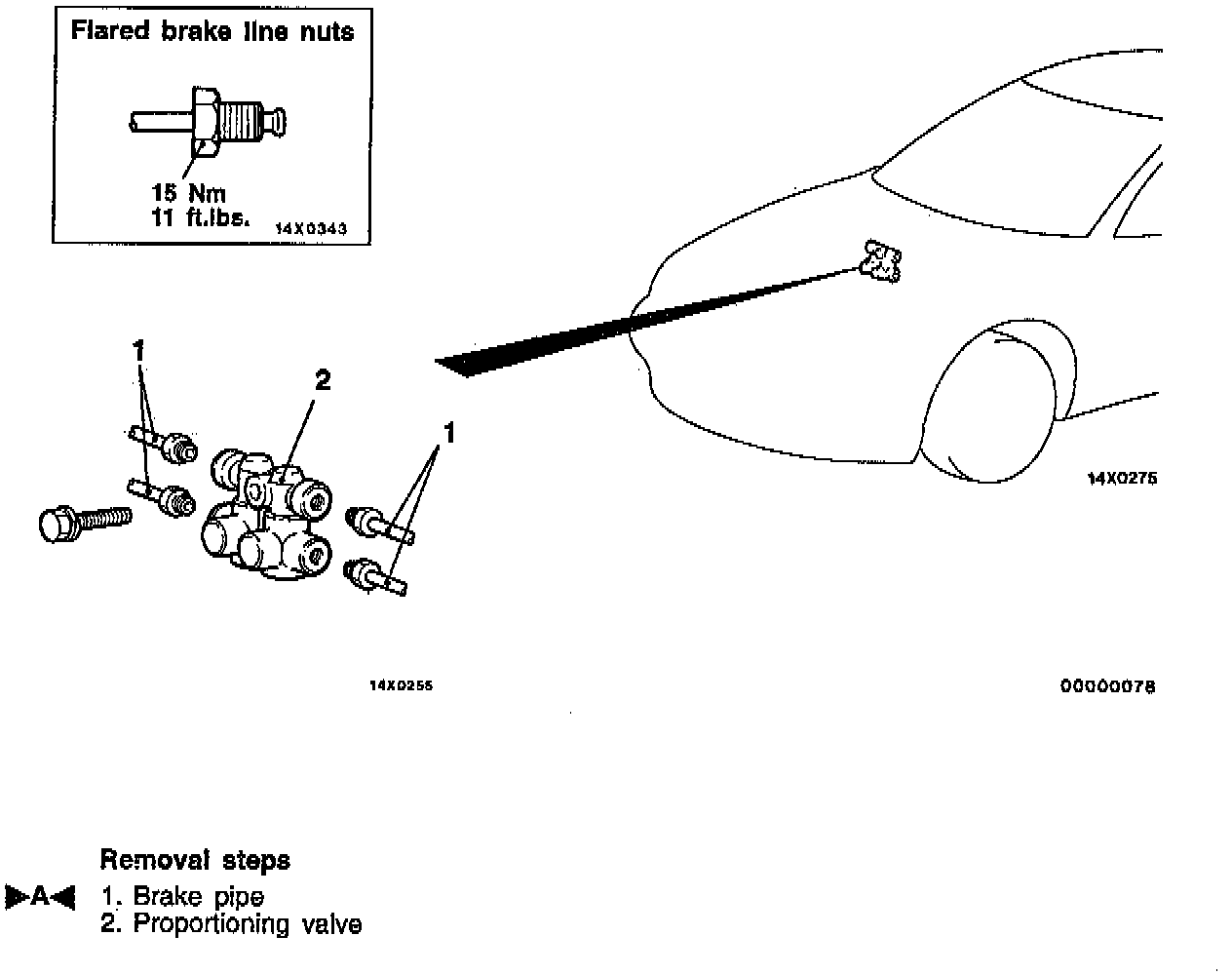

Proportioning Valve Assembly:

1. Drain the brake fluid.
2. Remove the link assembly mounting bolts. Refer to "Cruise Control."
3. Disconnect the brake pipes.
4. Remove the proportioning valve.

Brake Pipe Connection:

- Reverse procedure to install, noting the following order that the brake pipes should be installed:
1. LH rear
2. RH rear
3. Hydraulic unit
4. Hydraulic unit
- Bleed air from the hydraulic system.

Refer to "Brake Bleeding"
Service and Repair
