Initial Inspection and Diagnostic Overview

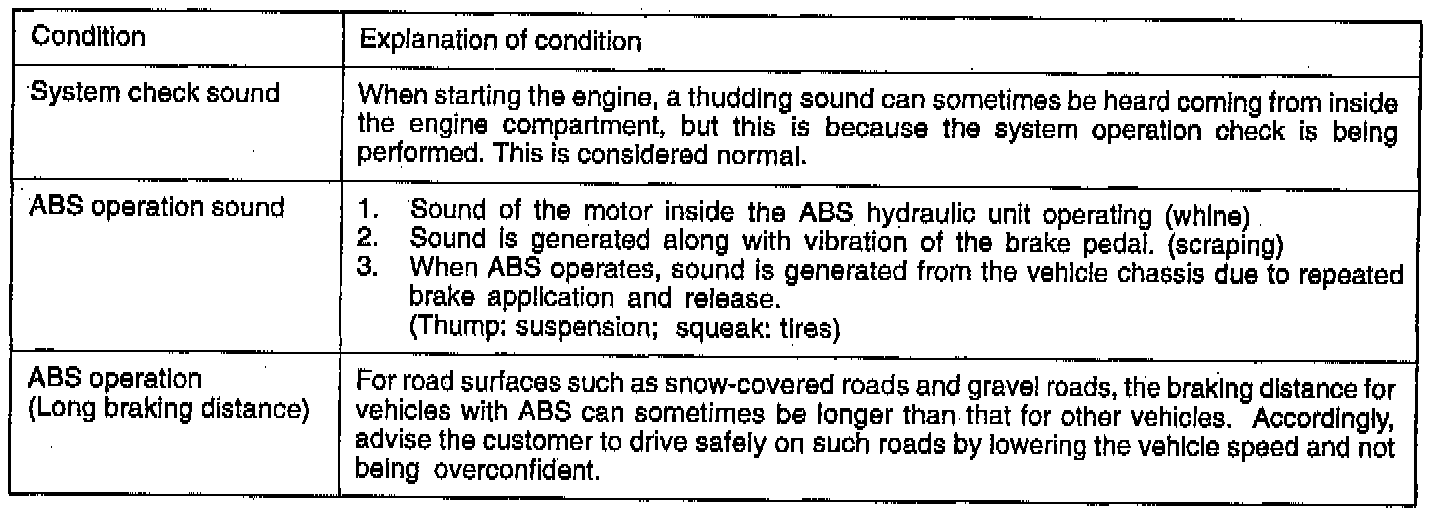

Diagnosis Chart:

The conditions listed in the table are considered normal. Diagnosis detection condition depends on the diagnostic trouble code. Make sure that checking requirements listed in the "COMMENTS" are satisfied when checking the trouble symptom again after the diagnostic trouble code has been erased.
