Motor Relay and Valve Relay Check

Motor Relay and Valve Relay Continuity Check
1. Remove the splash shield.
2. Remove the relay box mounting bolts.
3. Insert the tip of a screwdriver into the space between the hydraulic unit and the relay box cover and use it to open the tab at one place, and then remove the cover.
4. Take out all of the relays from the relay box and check the continuity between the terminals when power is not applied and when power is applied.

- Results should be as shown in the illustrations below.

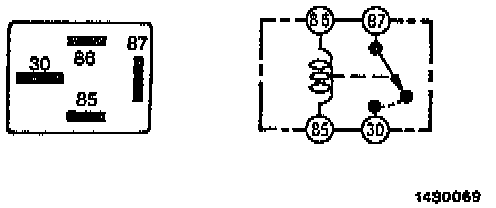

ABS Motor Relay Terminals:

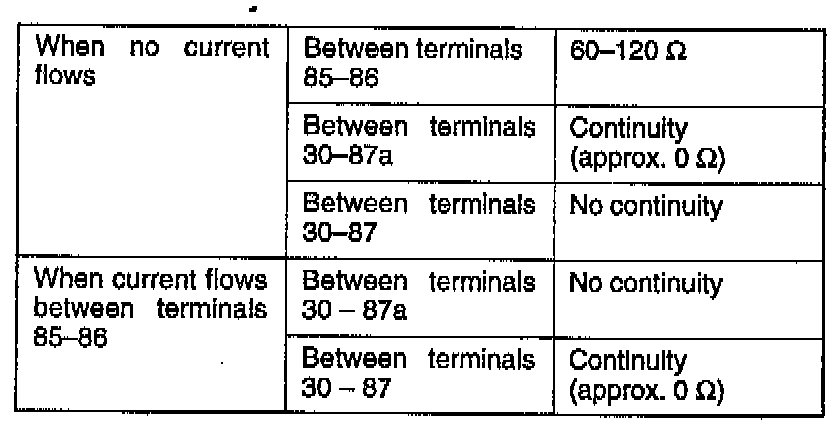

Motor Relay

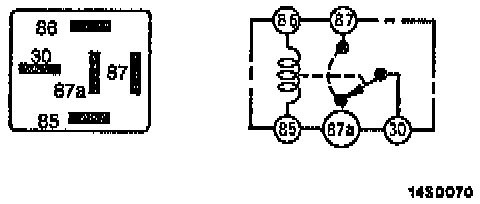

ABS Valve Relay Terminals:

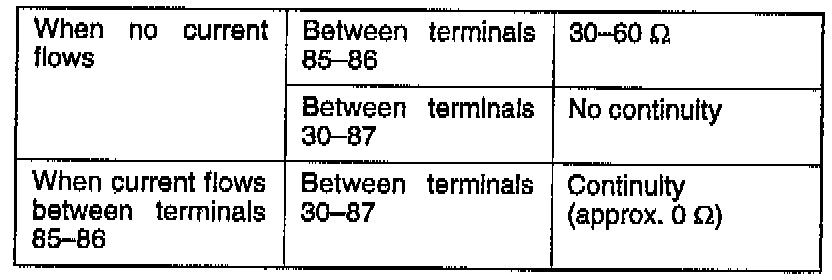

Valve Relay
