Paint: Application and ID

NOTE: This article has been updated by TSB Number 98-51-001, September, 1996, All 1997 Models.






VEHICLE INFORMATION CODE PLATE

Vehicle information code plate is riveted onto the bulkhead in the engine compartment.

The place shows model code, engine model, transaxie model, and body color code.




EXTERIOR COLOR CODES AND APPLICATIONS

PURPOSE
This article contains complete exterior color information on all 1997 Mitsubishi Motors vehicles.

The tables are as follows:

�}�Y:

I. 1997 Exterior Color Codes and Applications.






II. Paint Manufacturers' Stock Numbers for 1997 Exterior Refinishing.






III. Two Tone Color Combinations.
Use these tables when ordering refinishing materials from your local automotive paint dealer.

1997 EXTERIOR COLORS

There are thirty eight colors included in the 1997 model line up. Twenty five colors are carried over from previous years and thirteen colors are new. Also, there are eleven two tone exterior color combinations.

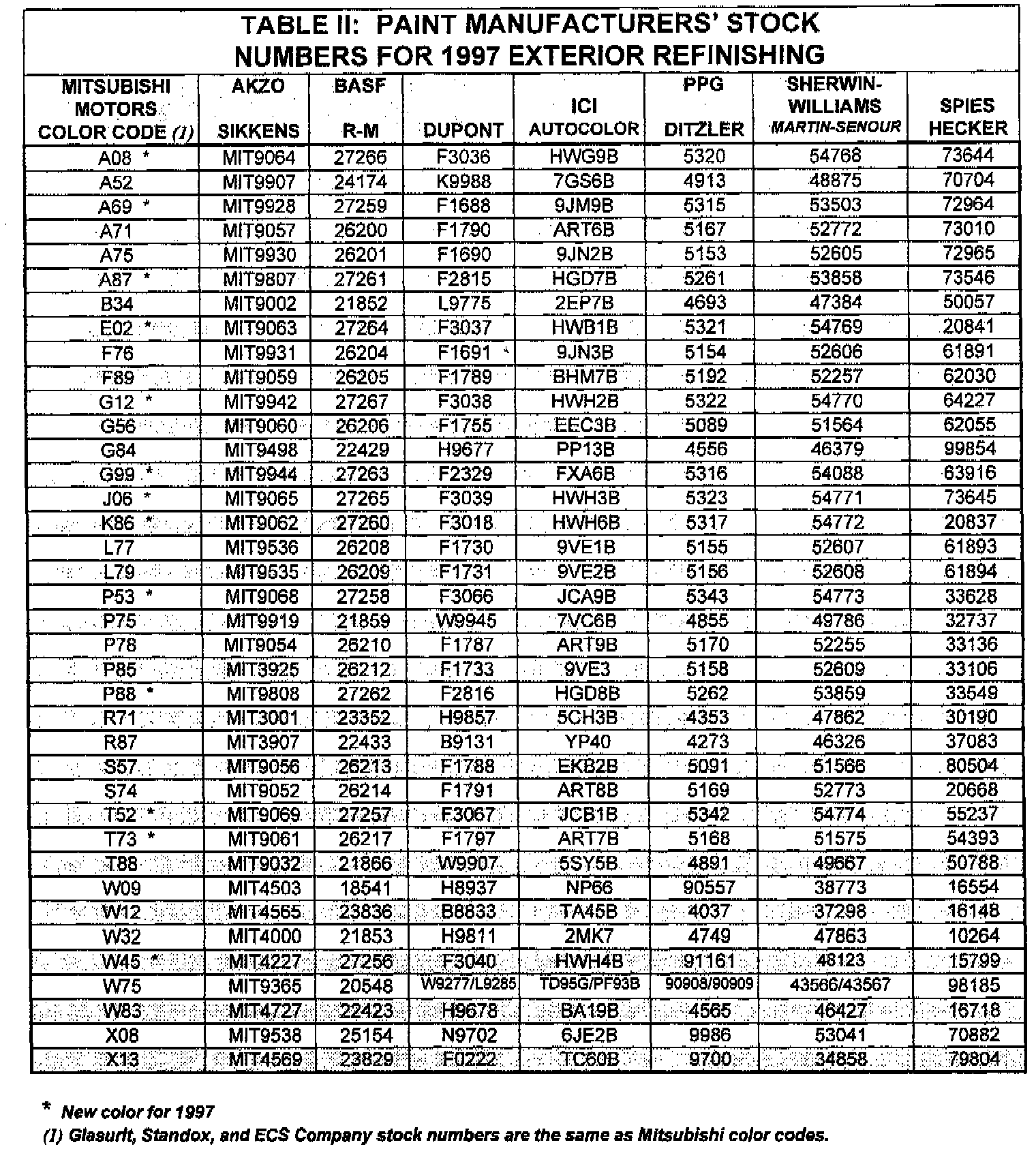

Table II contains the manufacturers' stock numbers from several automotive refinish companies, which correspond with the Color Codes and Applications shown in Table I.

The new colors for 1997 are identified by an asterisk (*)

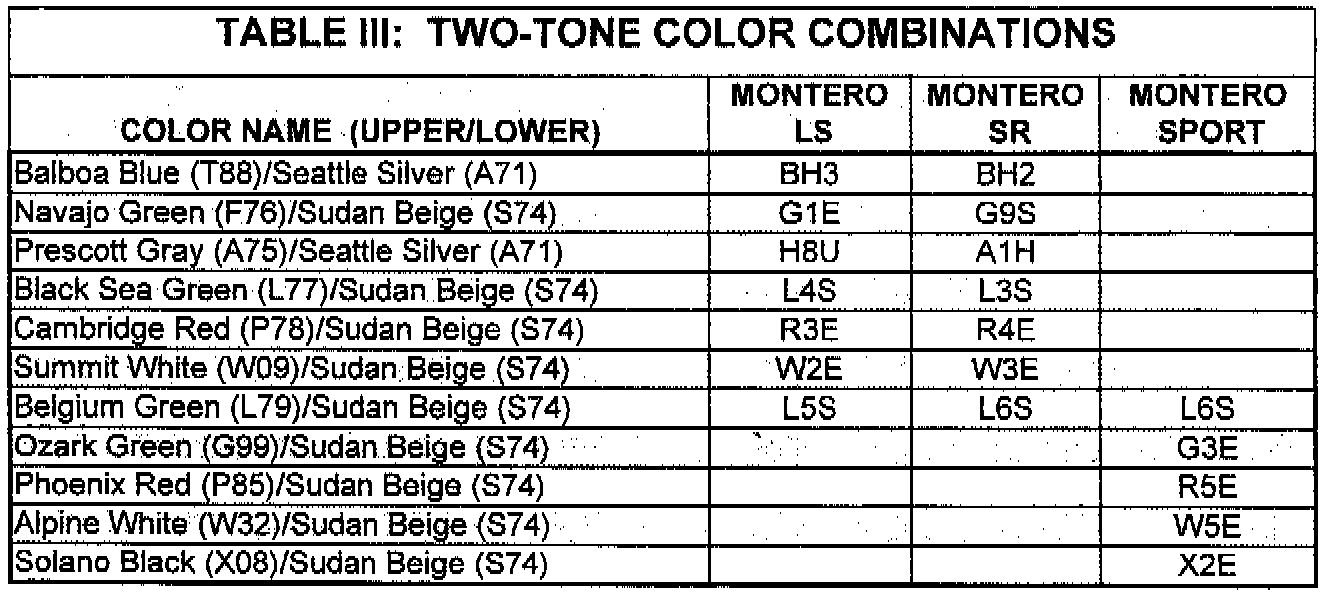

Table III shows the two tone color combinations for 1997 models.
