B-4 Insufficient Sensitivity

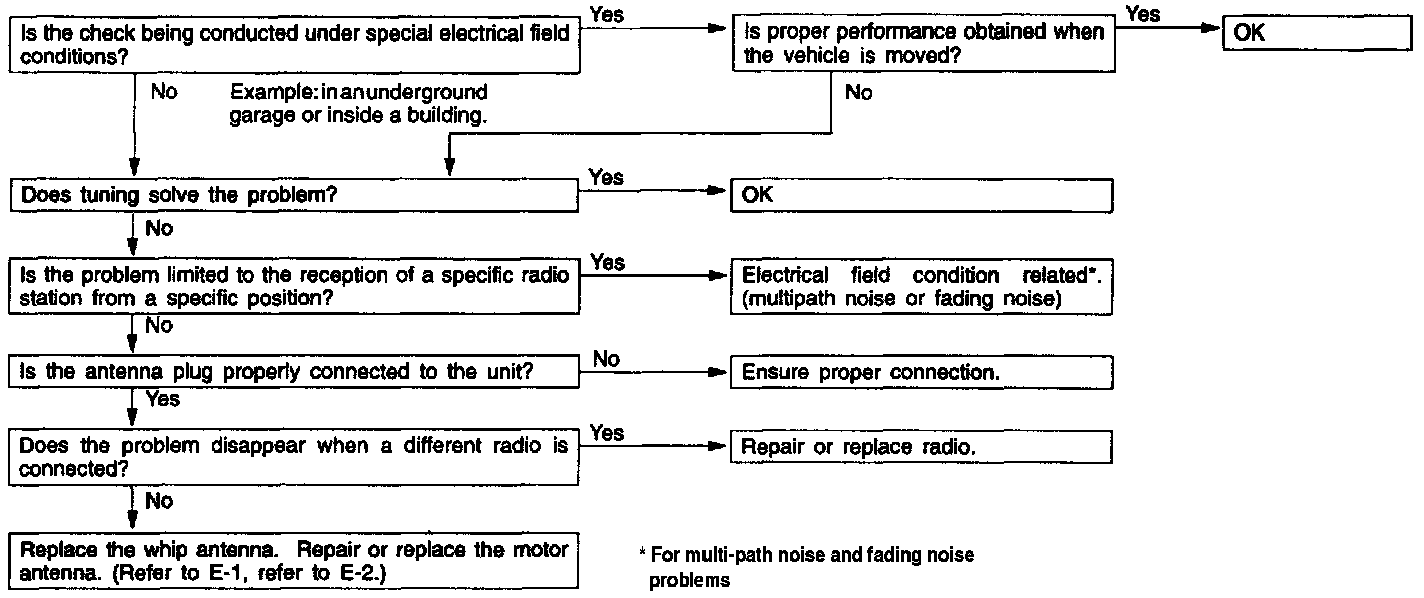

Chart B-4:





Insufficient sensitivity.

* For multipath noise and fading noise problems, refer to Chart A-2 Noise Appears at Certain Places When Travelling (FM).
