Replacement

Radio, Tape Player And CD Player - Removal And Installation:

CAUTION: SRS
When removing and Installing the floor console assembly, do not let It bump against the SRS-ECU.

Removal

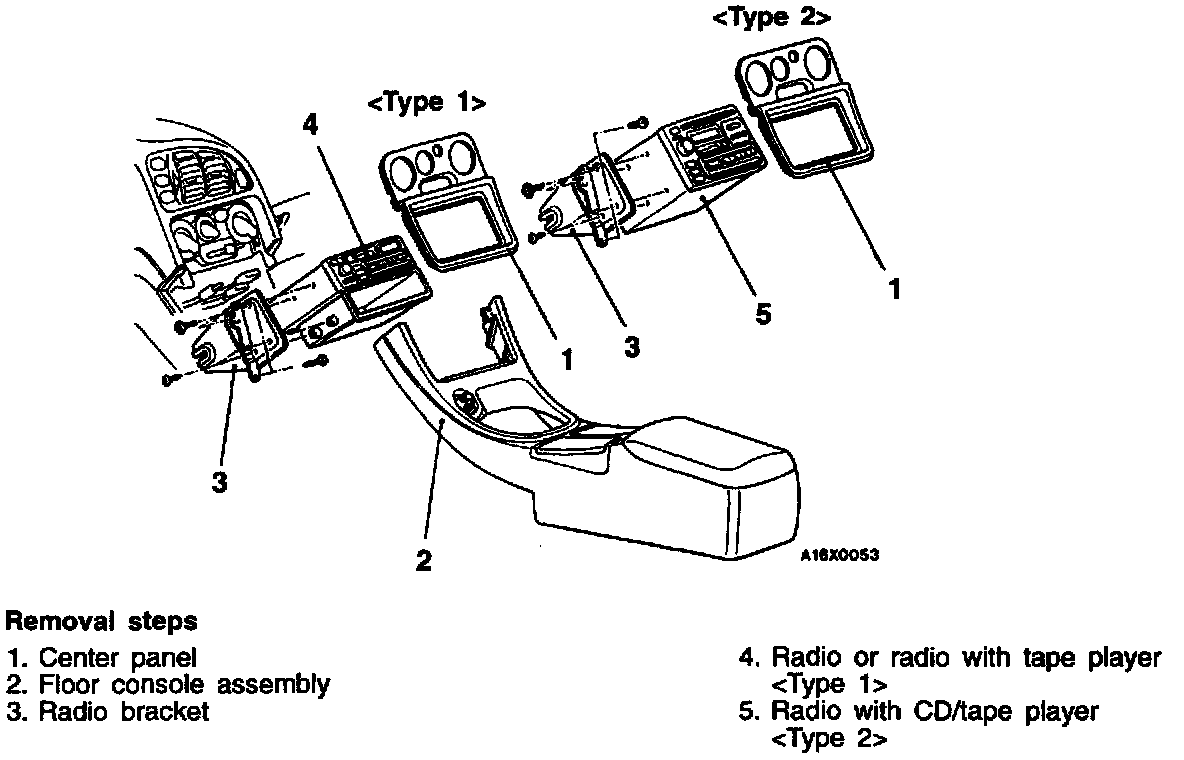

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image.
