Whip Antenna Replacement

Antenna - Removal And Installation:

Removal

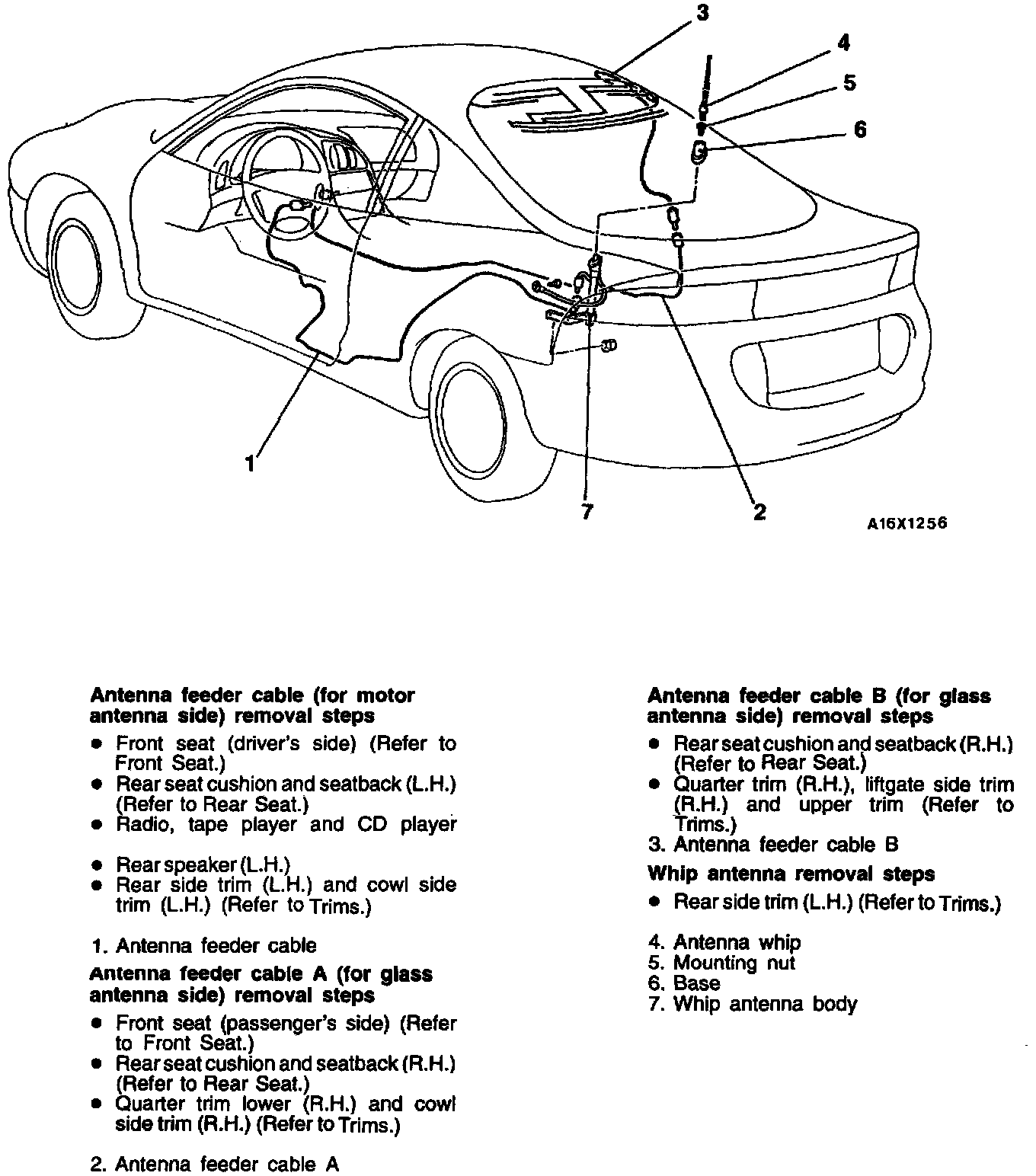

To remove follow the steps listed in the image and note the following:

Antenna Feeder Cable B Removal:

Step 3: Antenna Feeder Cable B Removal

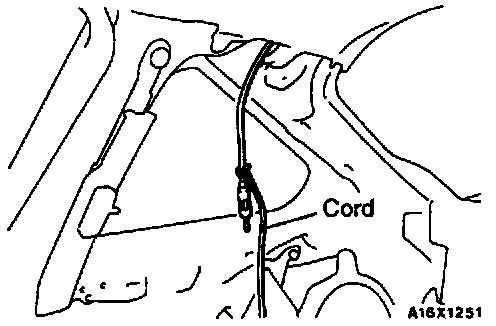

1. Tie a cord to the end of the antenna feeder cable.

Antenna Feeder Cable B Removal:

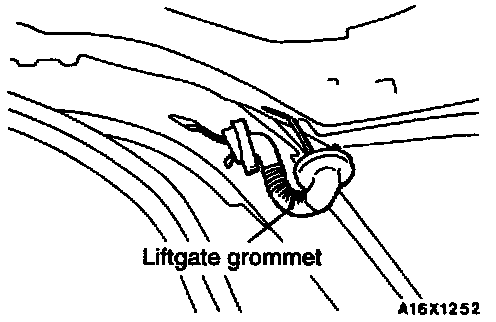

2. Remove the Liftgate grommet.
3. Pull out the antenna feeder cable little by little to remove it.

Installation
To install reverse the steps listed in the image.
