DTC 52

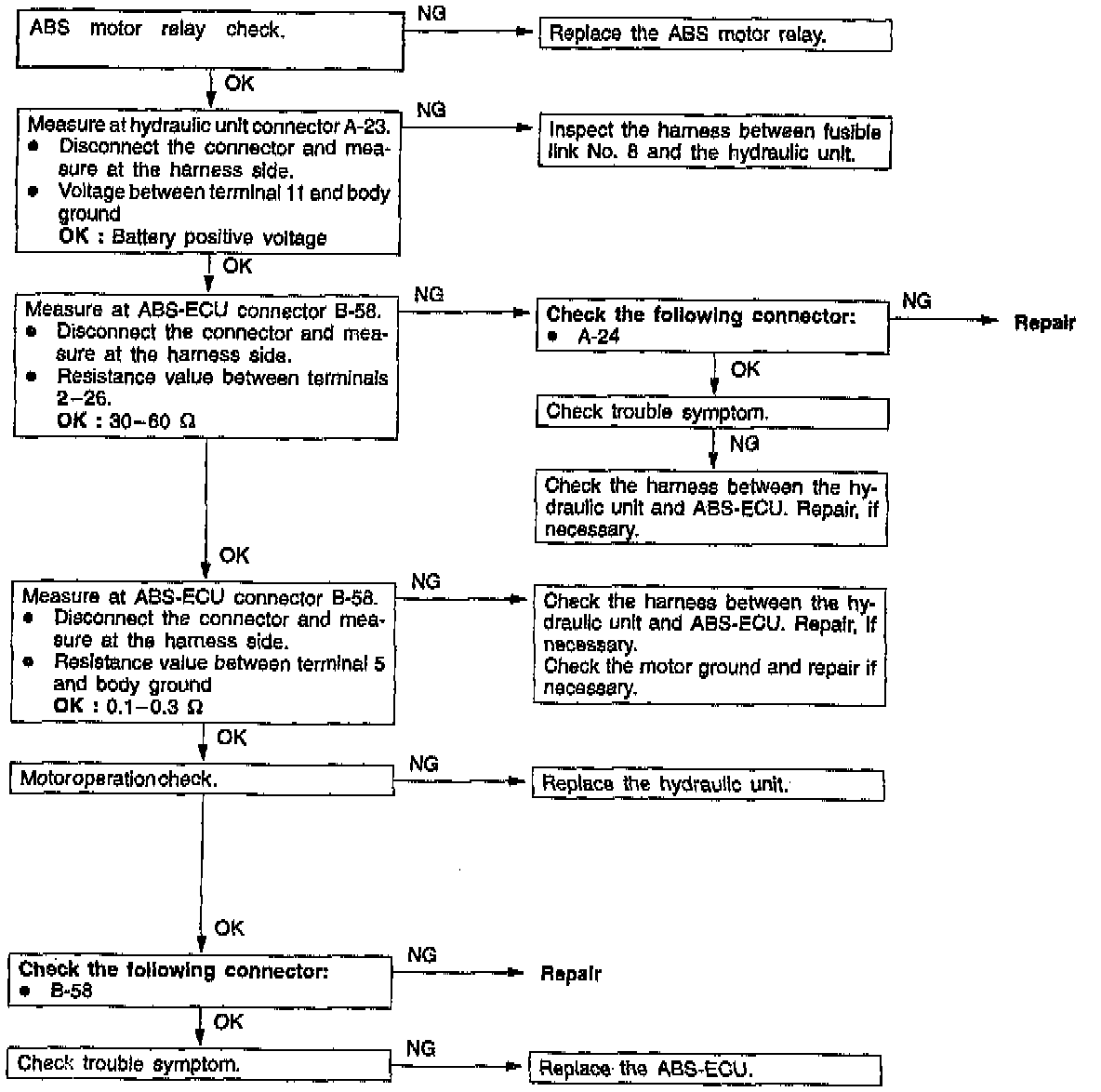

Inspection Procedure: Code No. 52 Motor Relay, Motor System:

COMMENT: This code is output under the following conditions:
- When the motor relay is turned "ON," but no signal is input to the monitor motor line (motor is not operating, etc.).
- When the motor relay is "OFF," but a signal is input to the monitor motor line (motor continues operating, etc.).
- When the motor relay does not operate.

NOTE: The engine should be started and left to run for a while after testing is completed, because force driving of the motor by means of the actuator test will drain the battery.

PROBABLE CAUSE:
- Malfunction of the motor relay.
- Malfunction of the wiring harness.
- Malfunction of the ABS-ECU.
- Malfunction of the hydraulic unit.
