DTC 43
>>
SRS Warning Light Drive Circuit System Fault 1 (Light Does Not Illuminate)
SRS Warning Light Drive Circuit System Fault 1 (Light Does Not Illuminate)

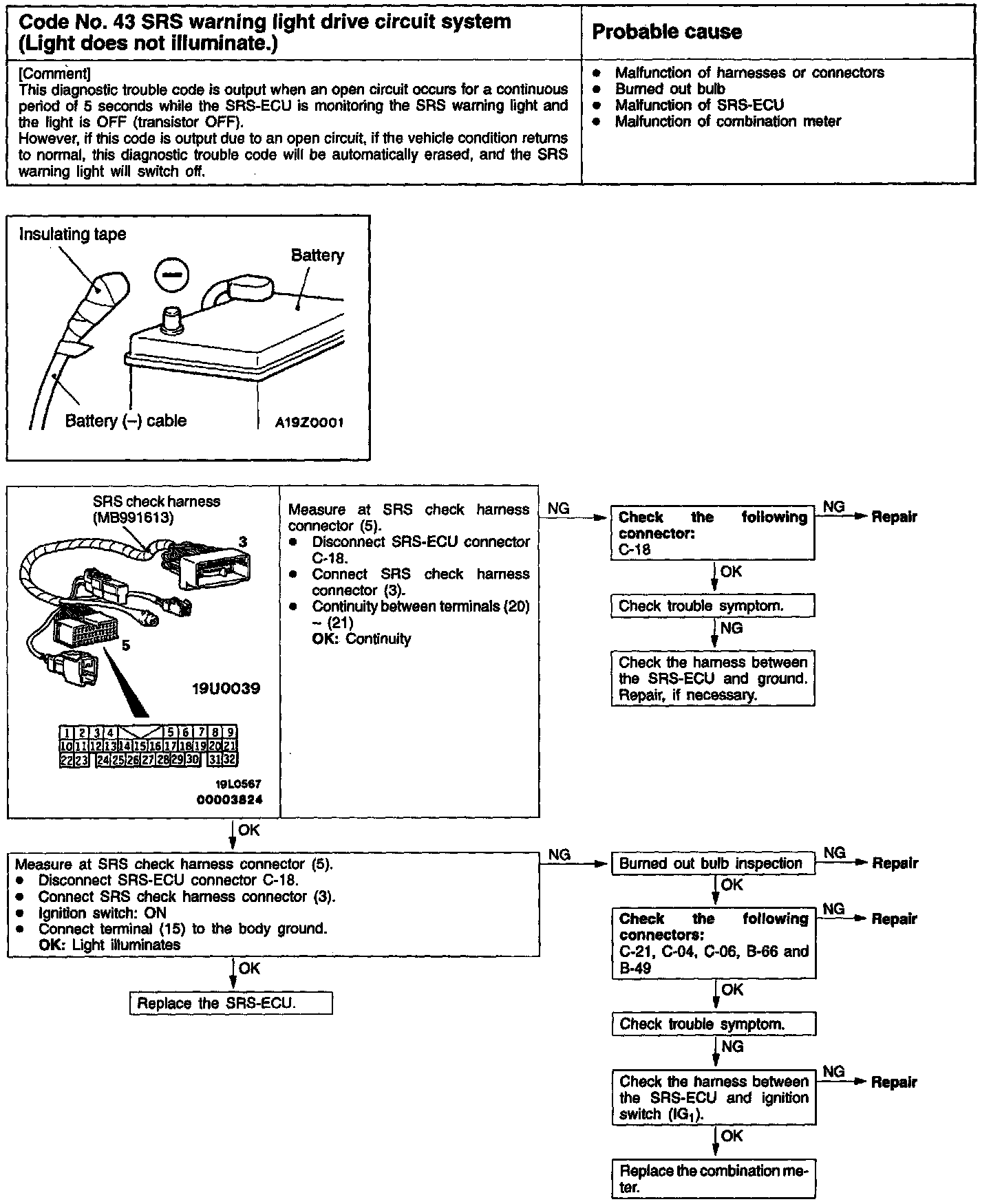

Code No. 43, SRS Warning Light Drive Circuit System (Light Does Not Illuminate):
