Output Shaft: Service and Repair

DISASSEMBLY
Follow disassembly steps outlined in illustration.

NOTE: Disassembly service points as follows:

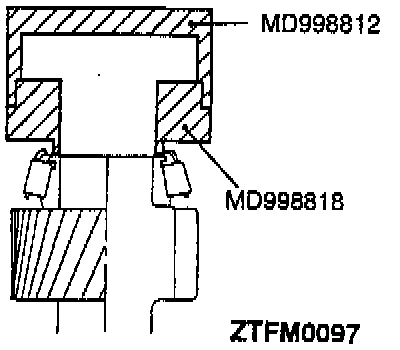

A. Taper roller bearings removal. (1)

CAUTION:
- Do not reuse the bearings removed from the shaft.
- Replace the inner and outer races of the taper roller bearing as a set.

ASSEMBLY
Assembly in reverse order as Disassembly.

NOTE: Assembly service points as follows:

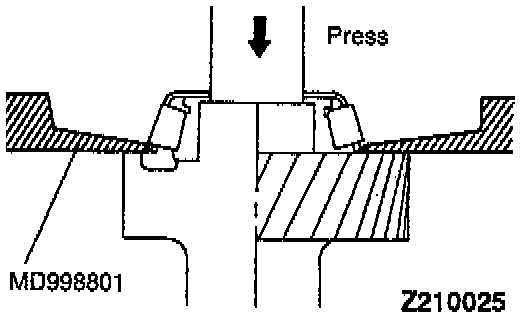

A. Taper roller bearings installation. (1)

CAUTION: When installing the bearing, push the inner race only.
