Control Module: Description and Operation

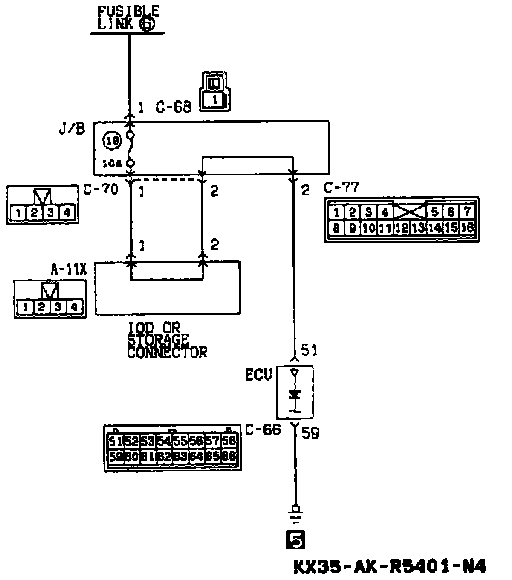

ETACS Power-supply And Ground Circuits:

ETACS Power-supply And Ground Circuits Chart:

The battery supplies a stabilized 5 V power supply to the ECU, via the constant-voltage circuit and terminal 51 (which is directly connected to the battery).

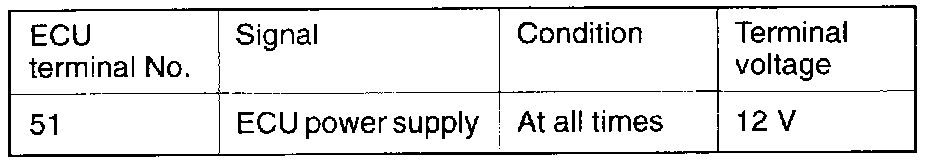

ECU terminal voltage (Connection condition of the ECU connector).
