A/T Technical Data

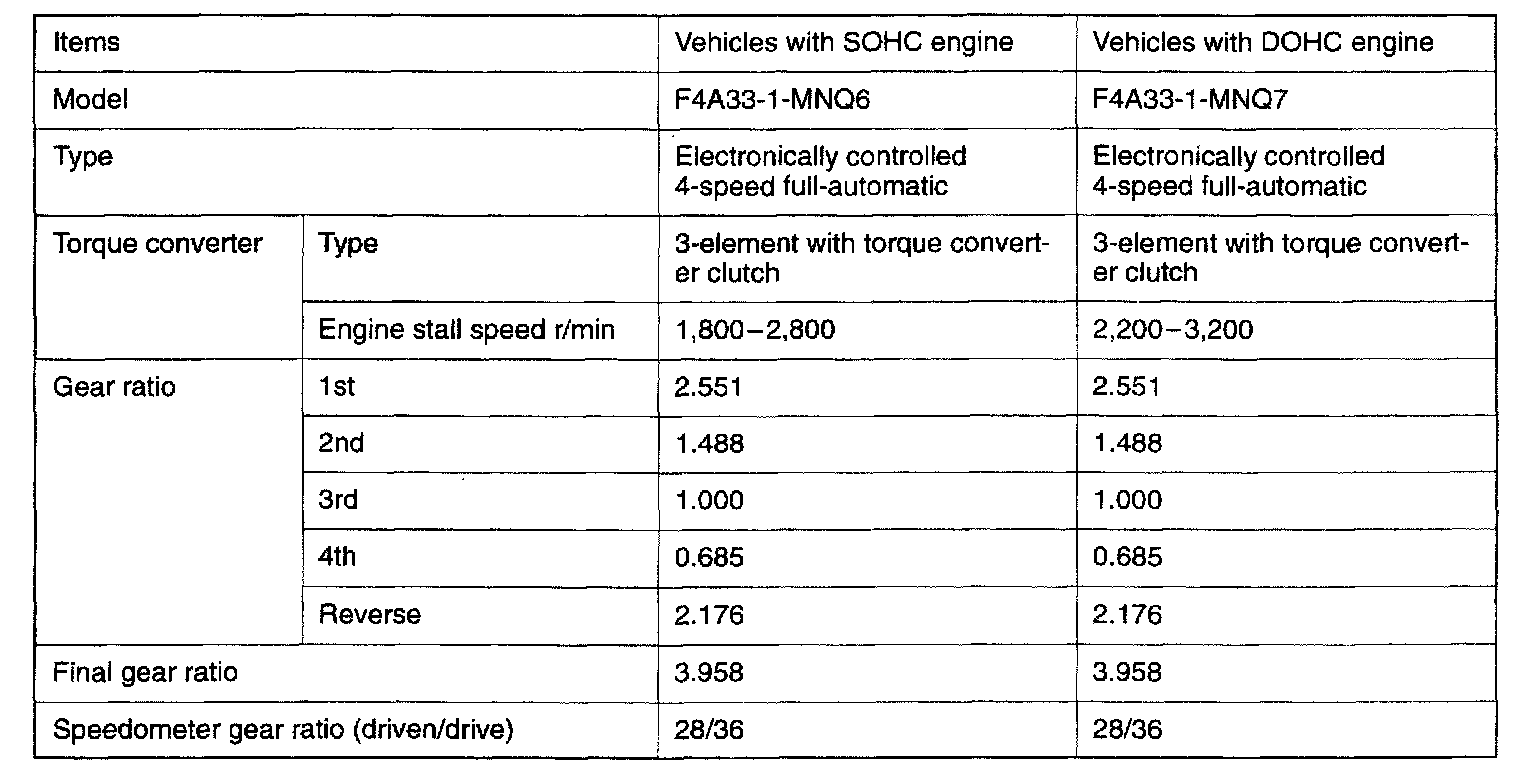

F4A33 4-spd A/T, Gear Ratios:

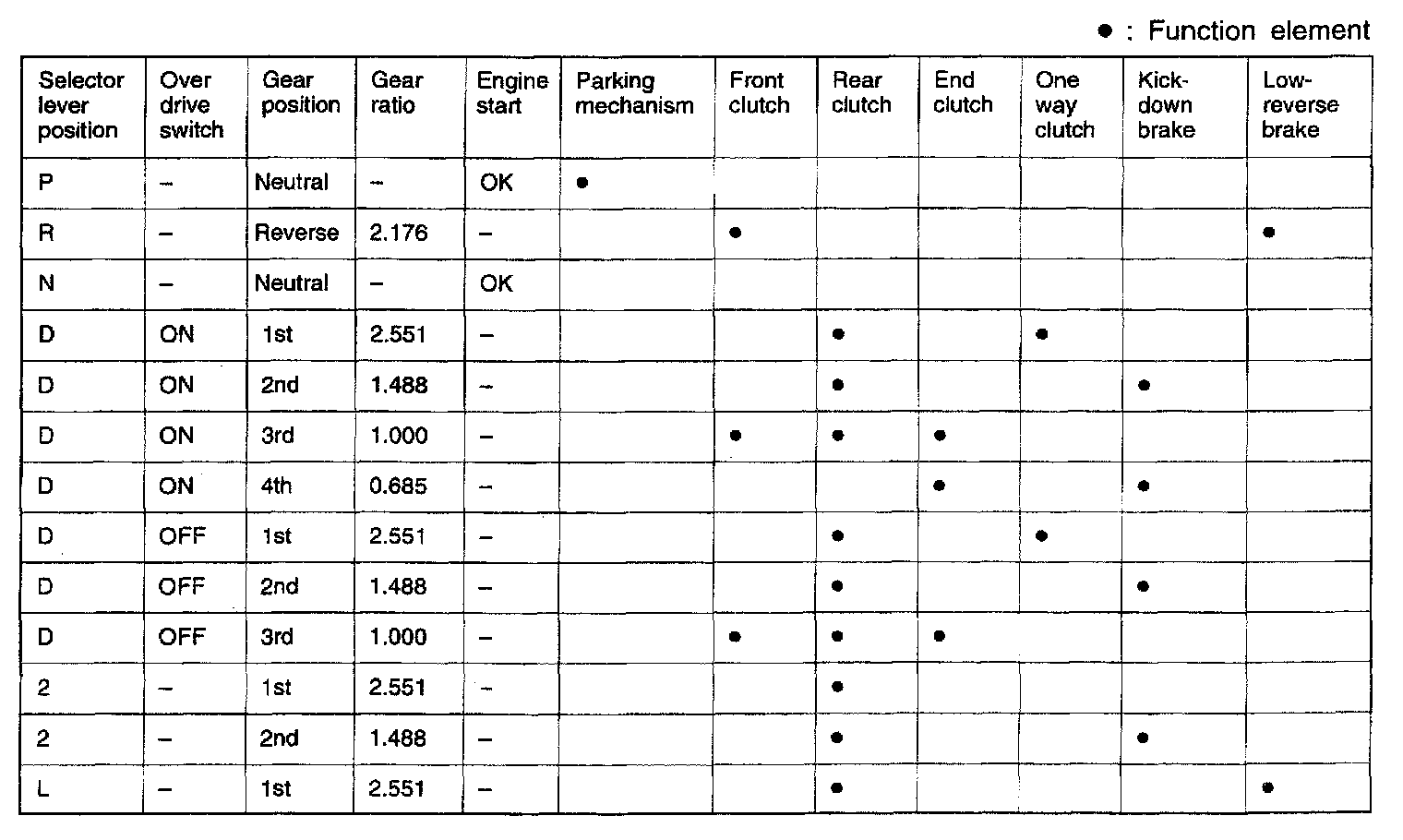

F4A33 4-spd A/T, Function Element Table:

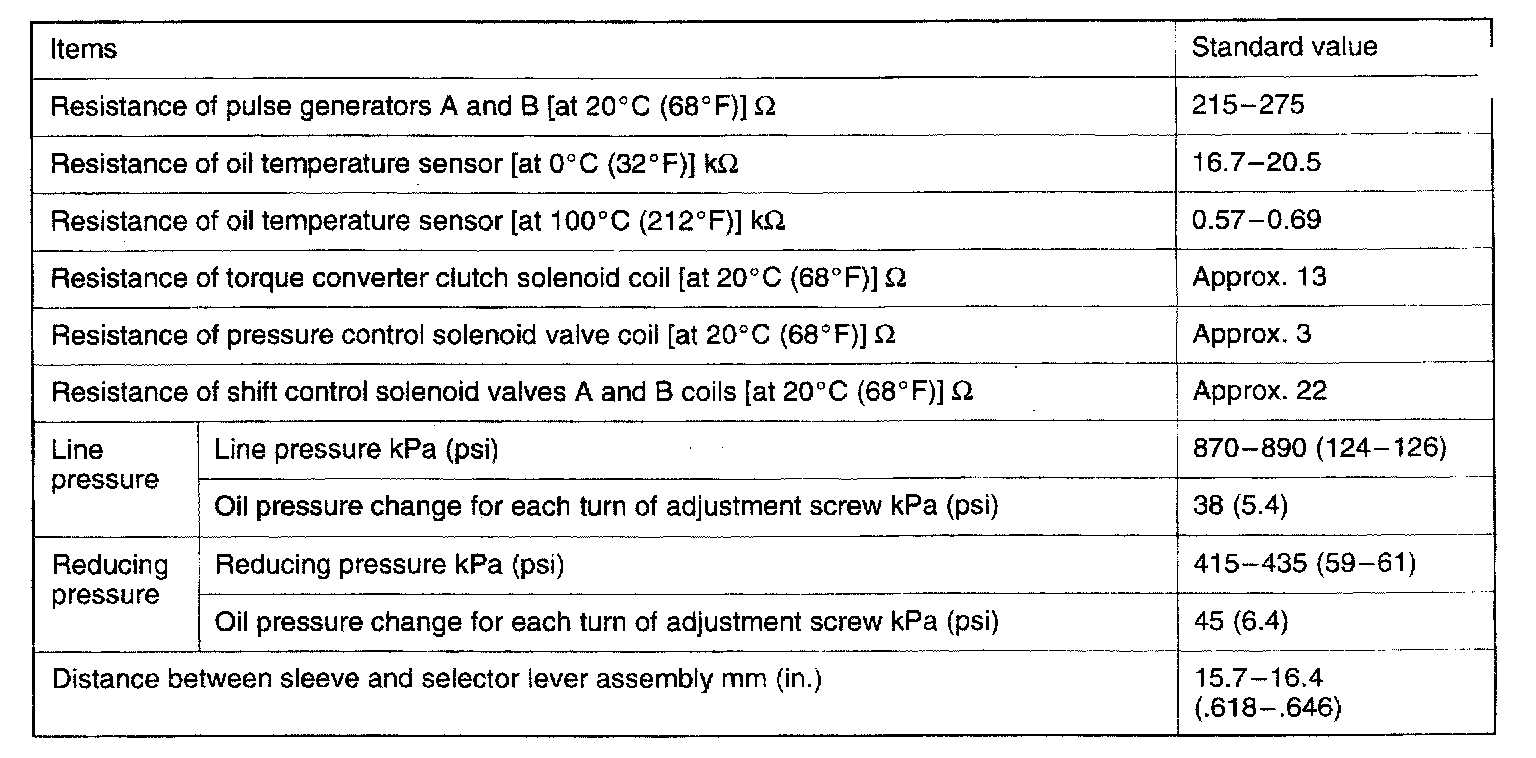

F4A33 4-spd A/T, Standard Values:

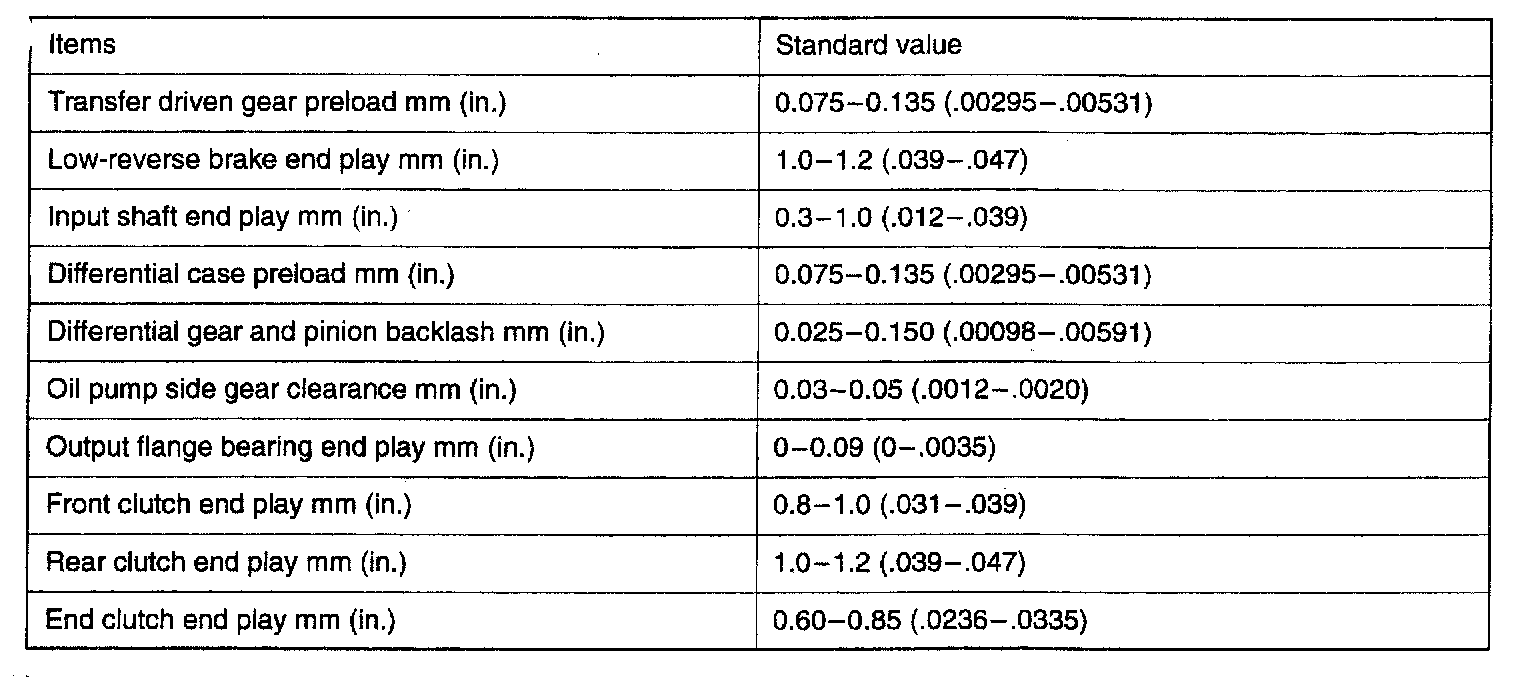

F4A33 4-spd A/T, Standard Values:

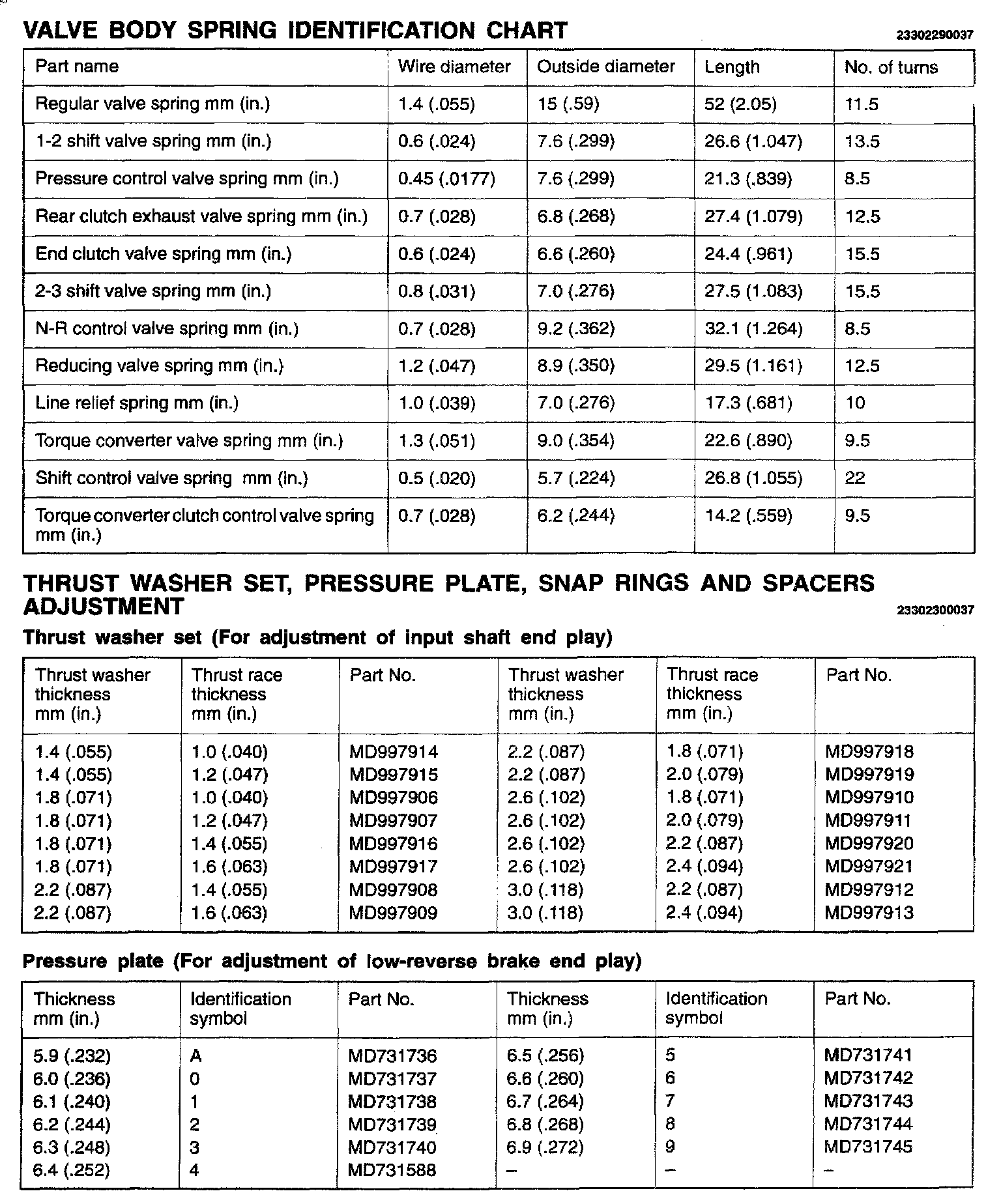

F4A33 4-spd A/T, Springs, Input Shaft & Low-Reverse End Play:

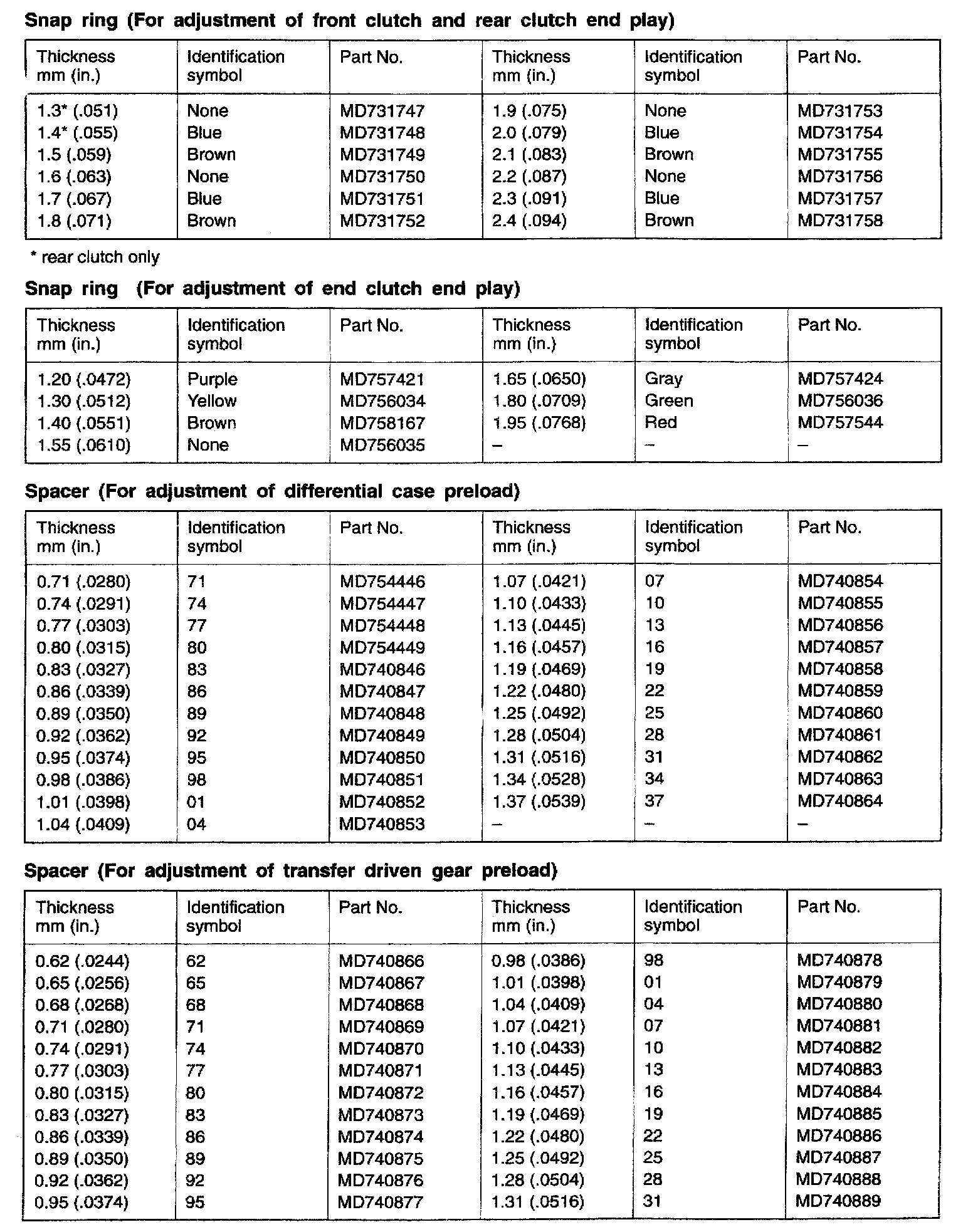

F4A33 4-spd A/T, Clutch End Play, Differential & Transfer Gear Preload:

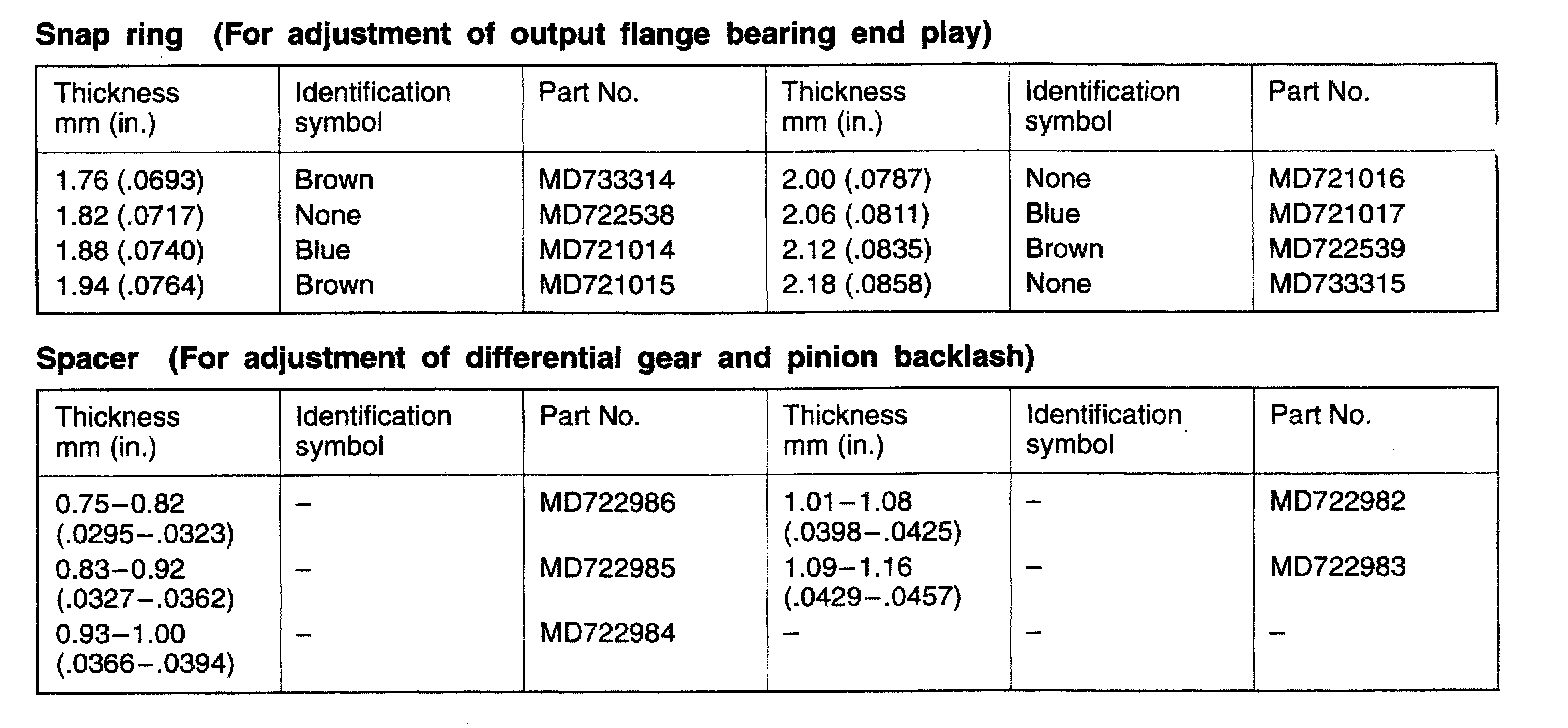

F4A33 4-spd A/T, Output Bearing End Play & Differential Backlash:
