Electronic Brake Control Module: Service and Repair

1. Remove the rear seat cushion.
2. Remove the RH rear seatback.
3. Remove the quarter trim.

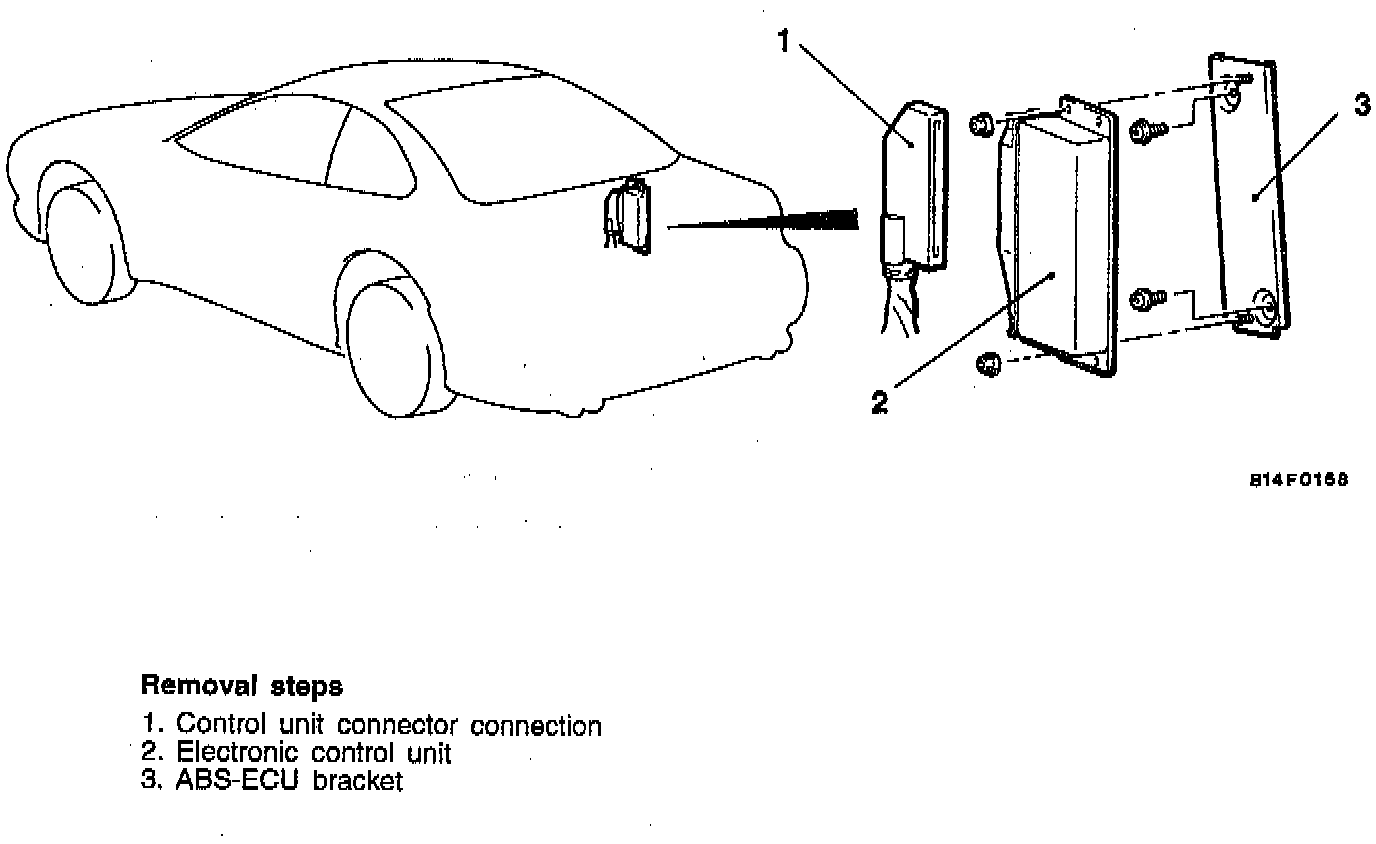

4. Remove the electrical connector.

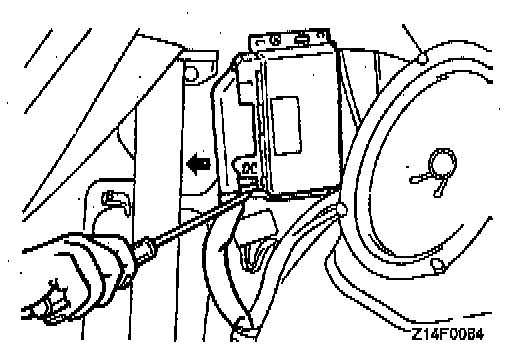

NOTE: Insert a screwdriver into the lock section as illustrated and pull out the connector from below.

5. Remove the Electrical Control Unit (ABS-ECU).
6. Remove the ABS-ECU bracket.
7. Reverse procedure to install.
