Home >> Mitsubishi >> 1997 >> 3000GT V6-3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Relays and Modules - Transmission and Drivetrain >> Relays and Modules - A/T >> Control Module >> Testing and Inspection

Control Module: Testing and Inspection

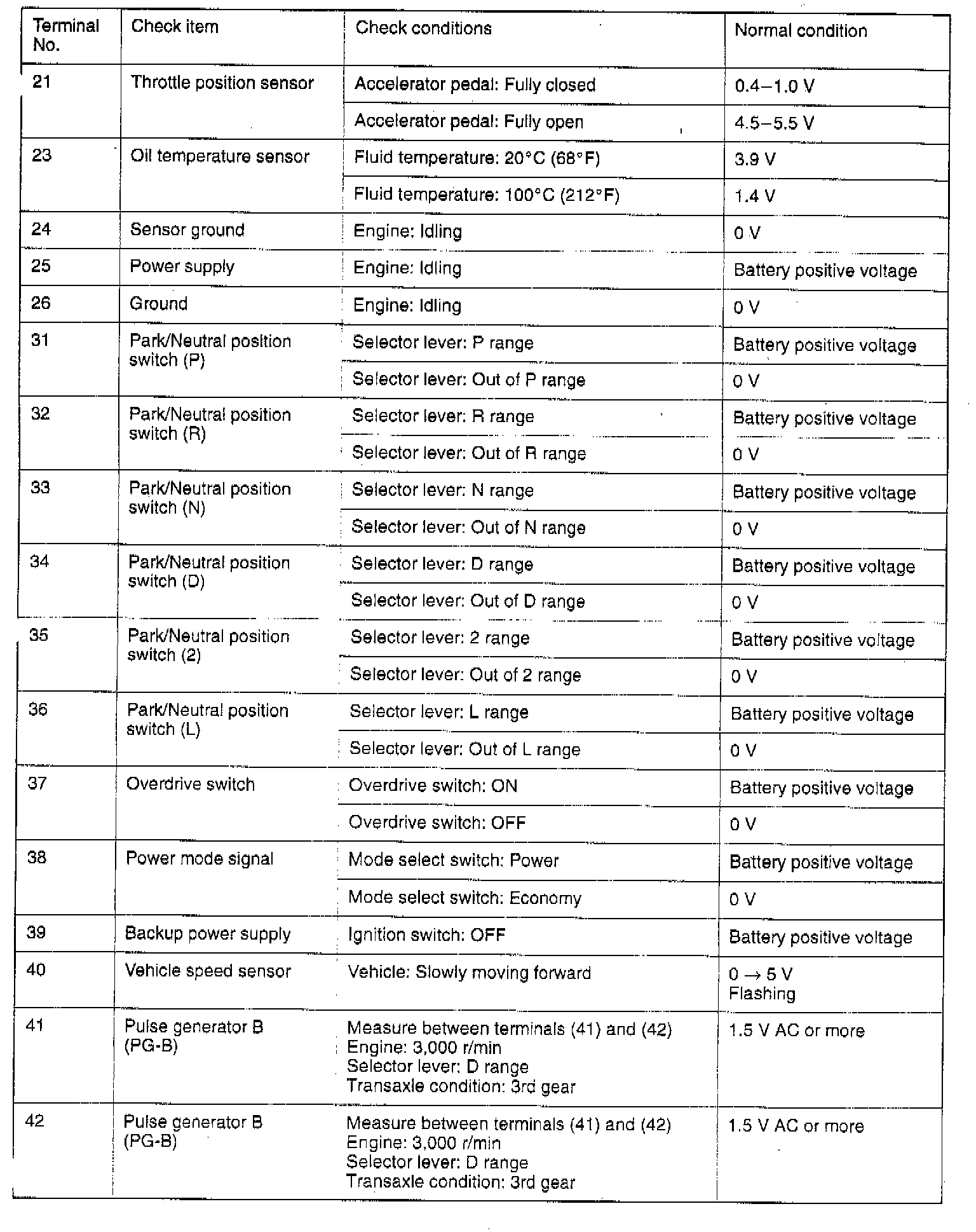

Chart 1 Of 3:

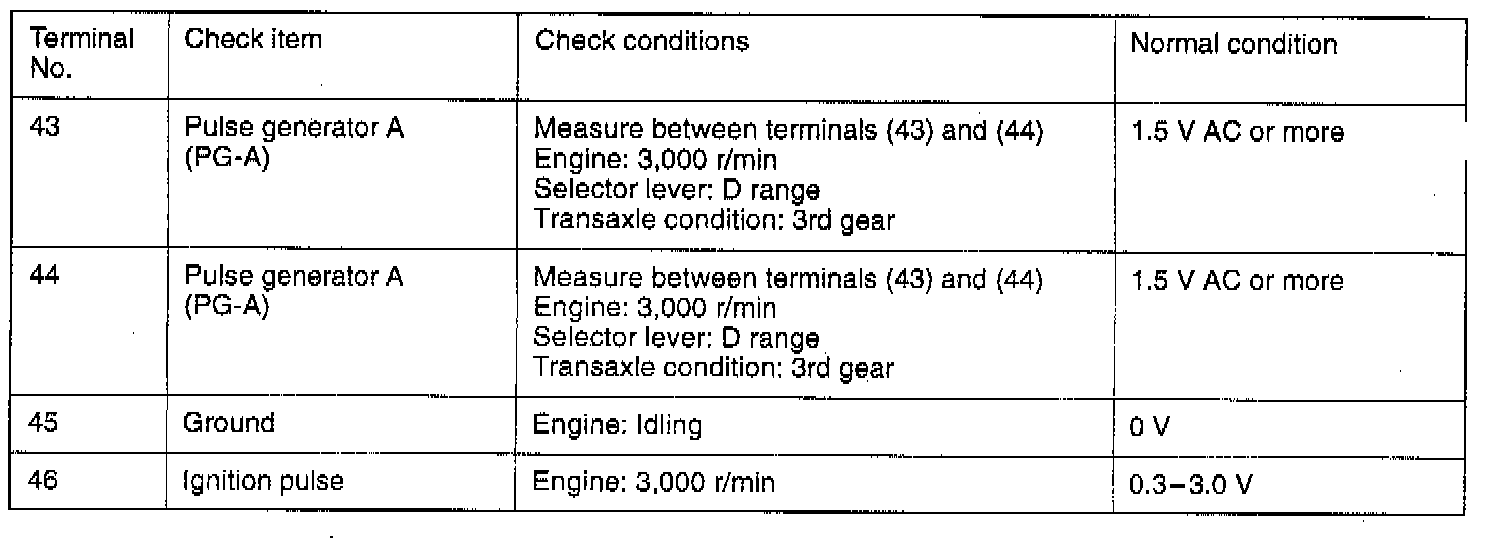

Chart 2 Of 3:

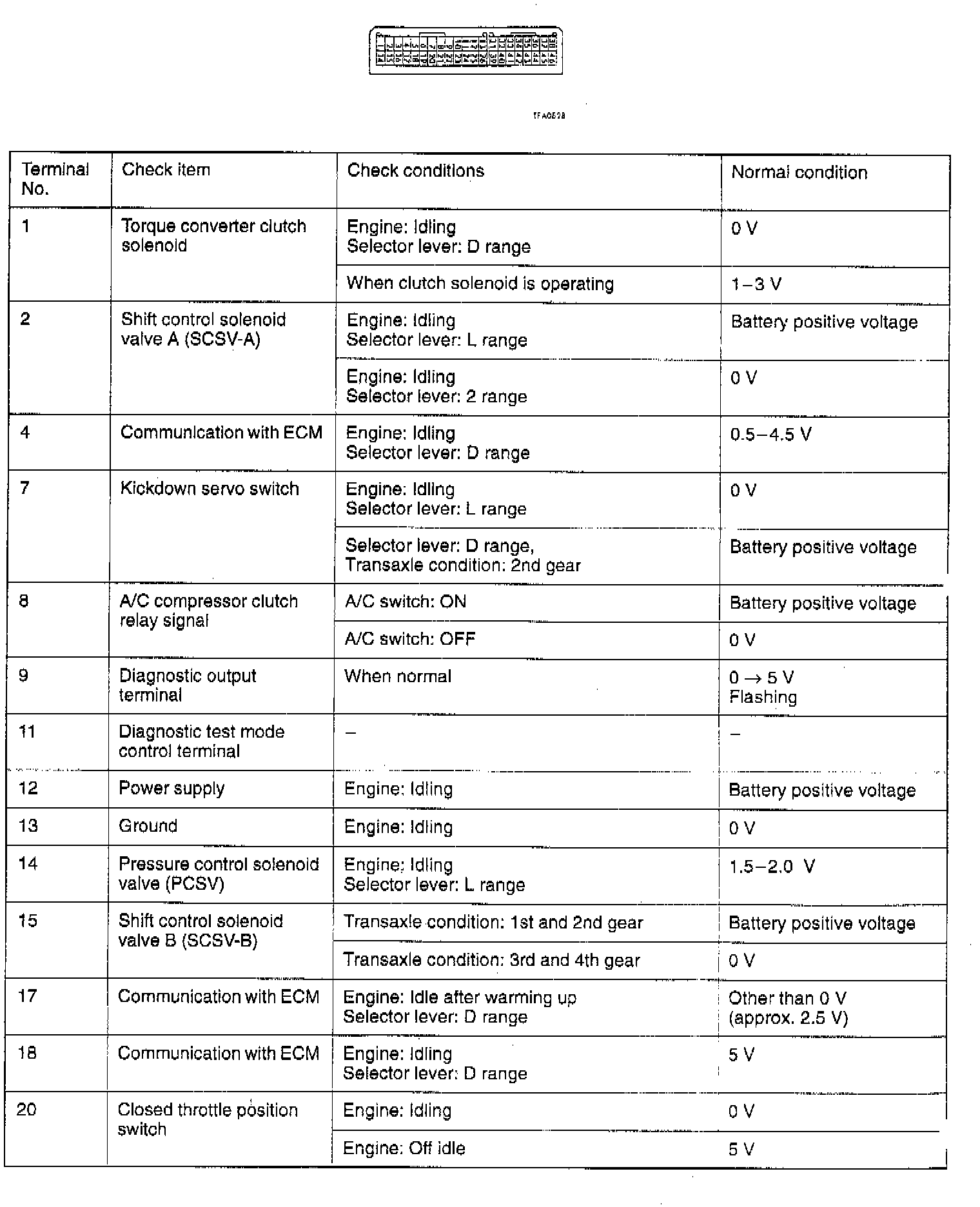

Chart 3 Of 3:
