Component Tests and General Diagnostics







TROUBLESHOOTING HINTS

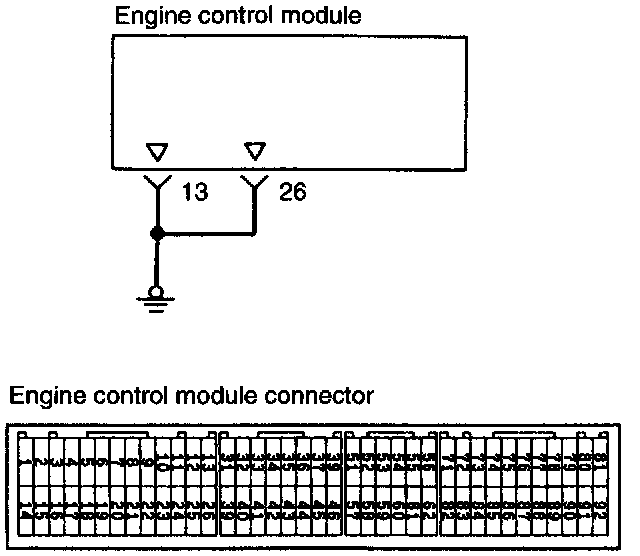

If the ground wire of the engine control module is not connected securely to ground, the module will not operate correctly.




HARNESS INSPECTION

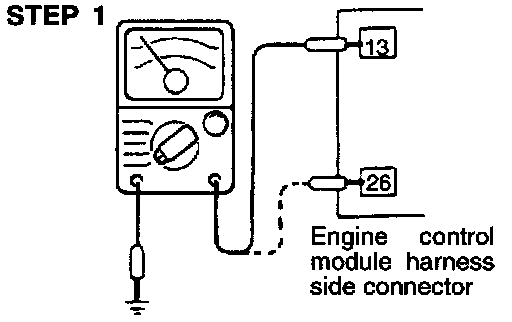

Check for continuity of the ground circuit.
- Engine control module connector: Disconnected
OK: STOP
NG: Repair the harness. (13-Ground) (26-Ground)
