Spark Plug Test

Spark Plug Test:




Spark Plug Test:

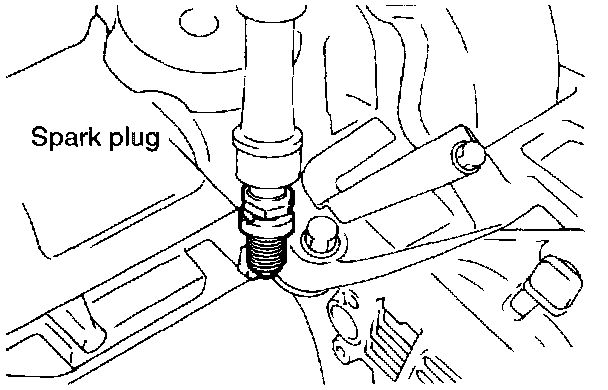

1. Remove the spark plug and connect to the spark plug cable.
2. Ground the spark plug outer electrode (body), and crank the engine.
- Check to be sure that there is an electrical discharge between the electrodes at this time.
