Knock Sensor: Service and Repair

REMOVAL AND INSTALLATION

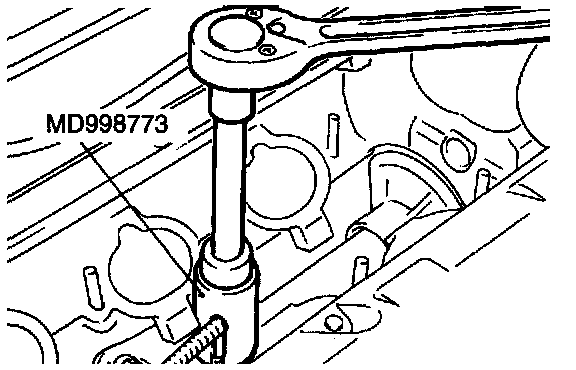

KNOCK SENSOR REMOVAL NOTE:
Remove the knock sensor with special tool.

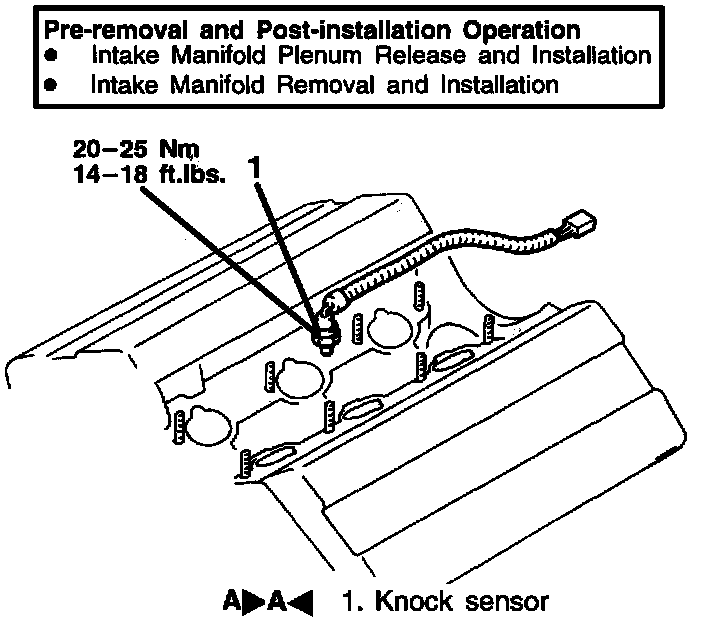

KNOCK SENSOR INSTALLATION NOTE:
When the knock sensor is installed, be sure to tighten it precisely to the specified torque as its installation affects the engine control.

Specified Torque: 20-25 Nm (14-18 ft.lbs.)
