Oscilloscope Patterns and Waveforms

INSPECTION USING OSCILLOSCOPE
1. Run the engine at an idle speed.

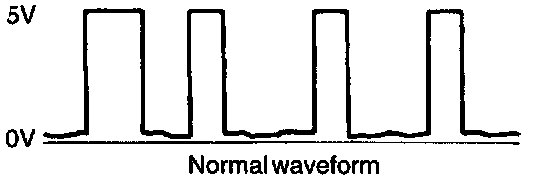

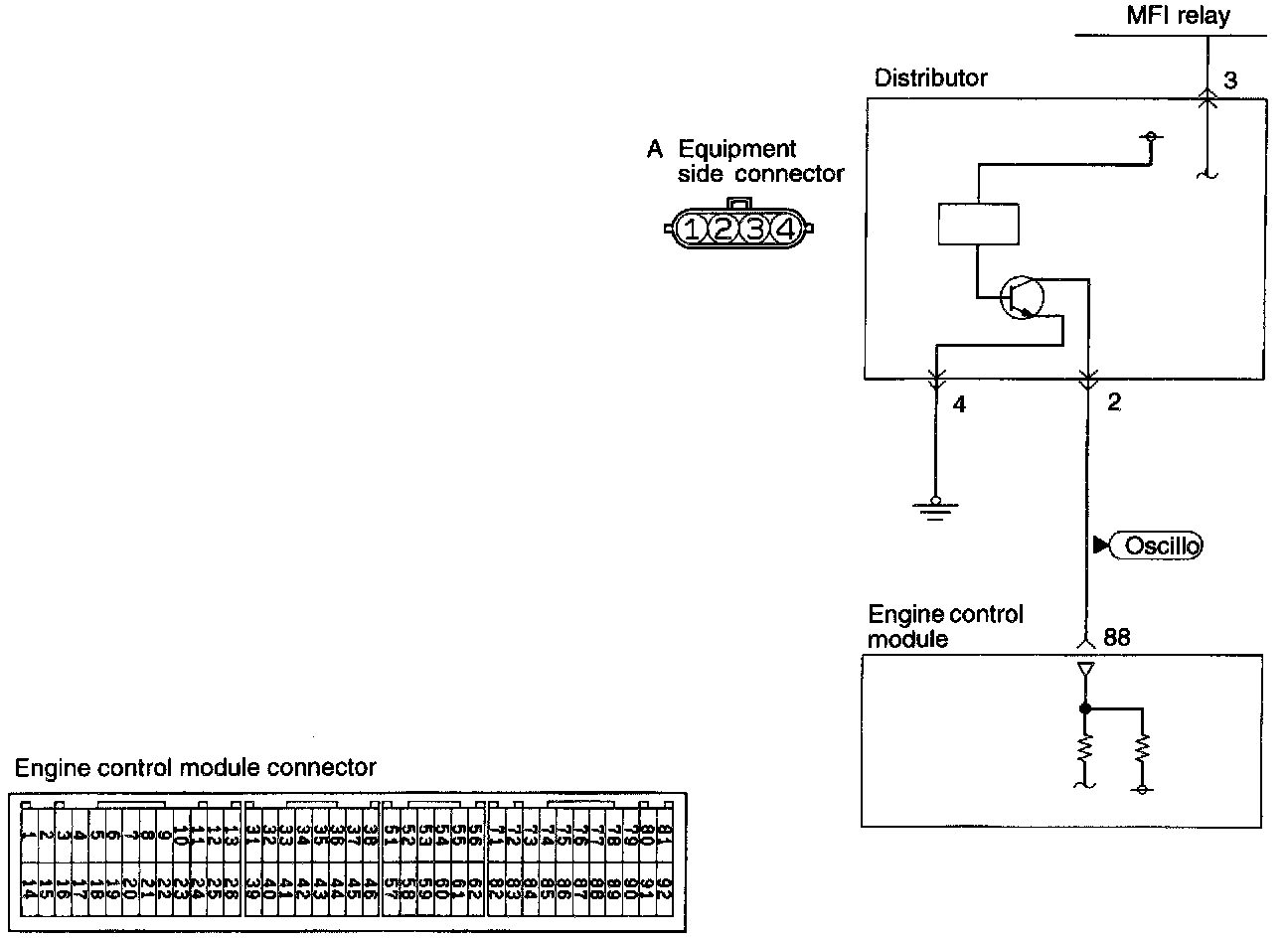

2. Connect the probe to the oscilloscope pick-up point as shown in the circuit diagram, and check the waveform.
