Junction Block

Overall Views Of Relay - Locations:




Views A - J:

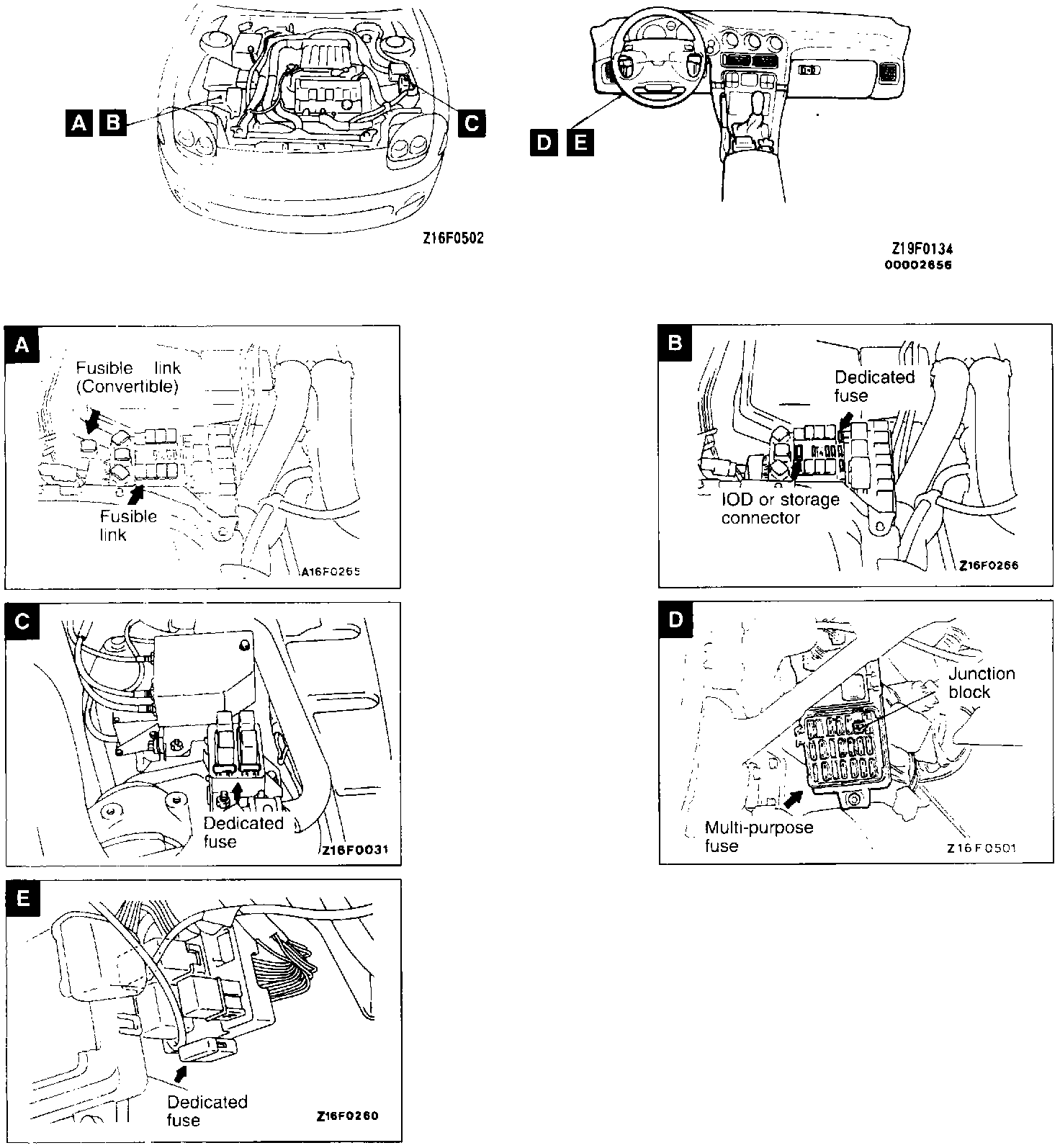

Fusible Link, Fuse And IOD Or Storage Connector:
