Cruise Control: Service and Repair

REMOVAL AND INSTALLATION

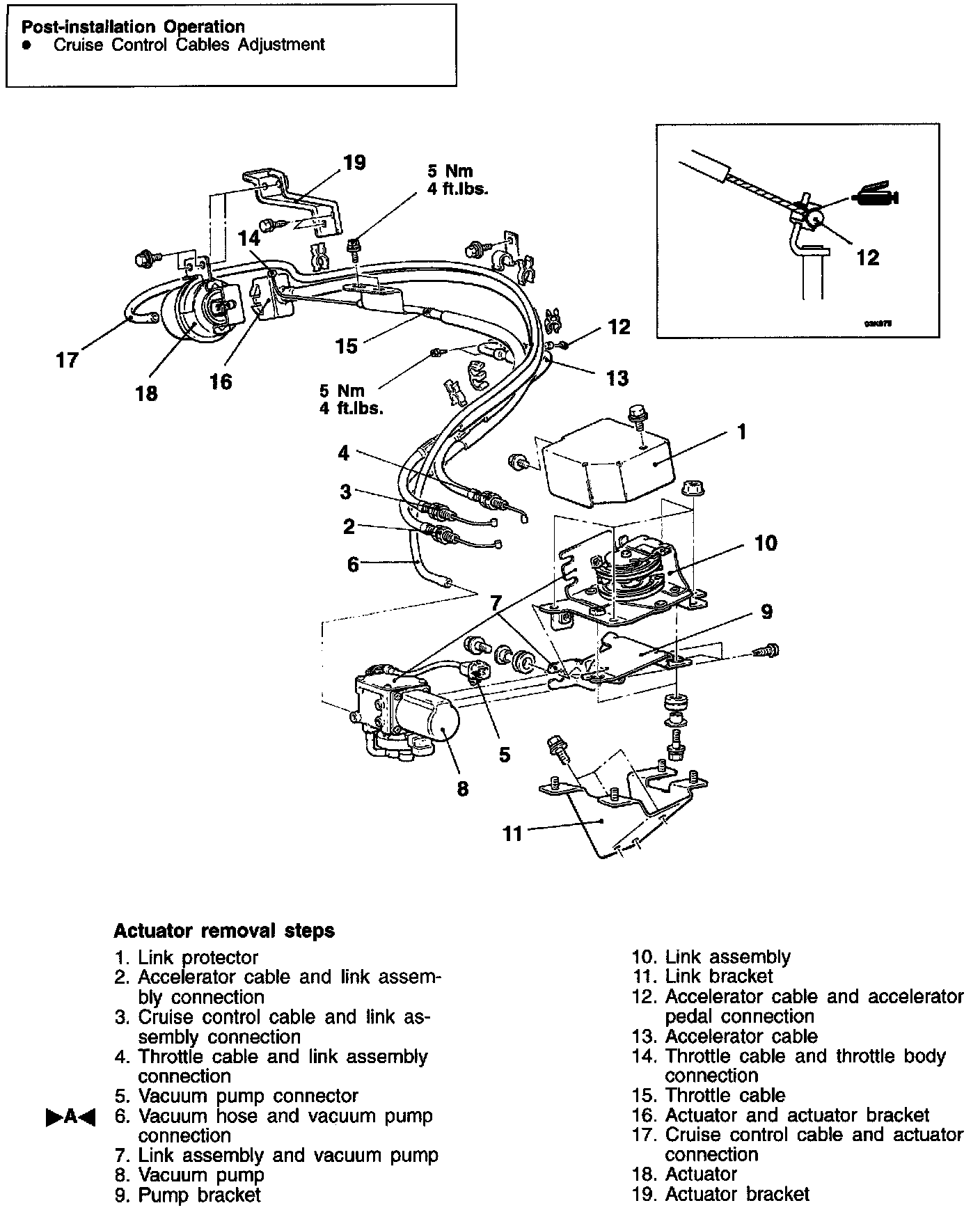

Part 1 of 3
SERVICE POINT (A) VACUUM HOSE TO VACUUM PUMP CONNECTION
Route the vacuum hose over the throttle cable and connect the hose to the vacuum pump so as to prevent the slackened hose from interfering with other parts.

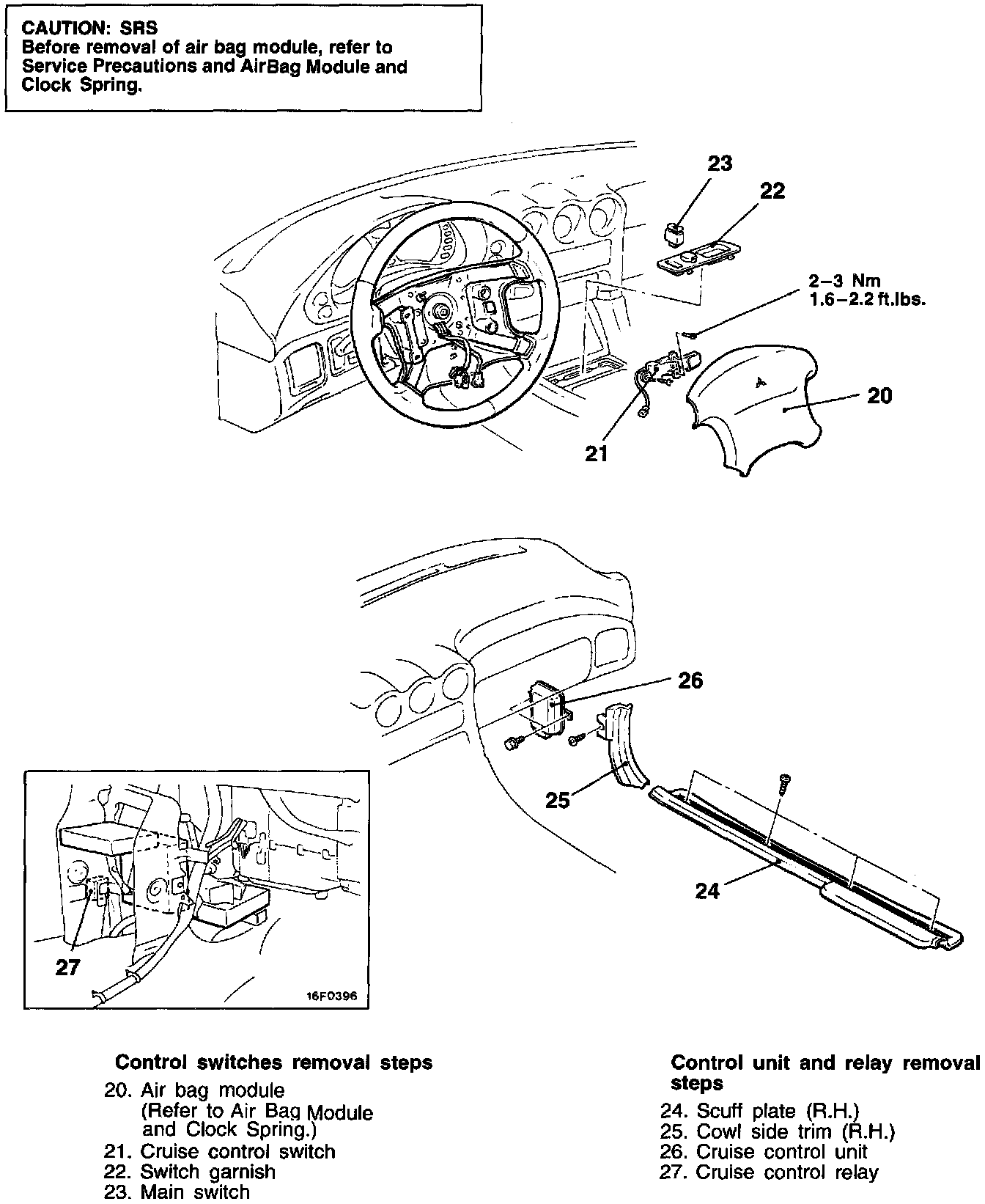

Part 2 of 3

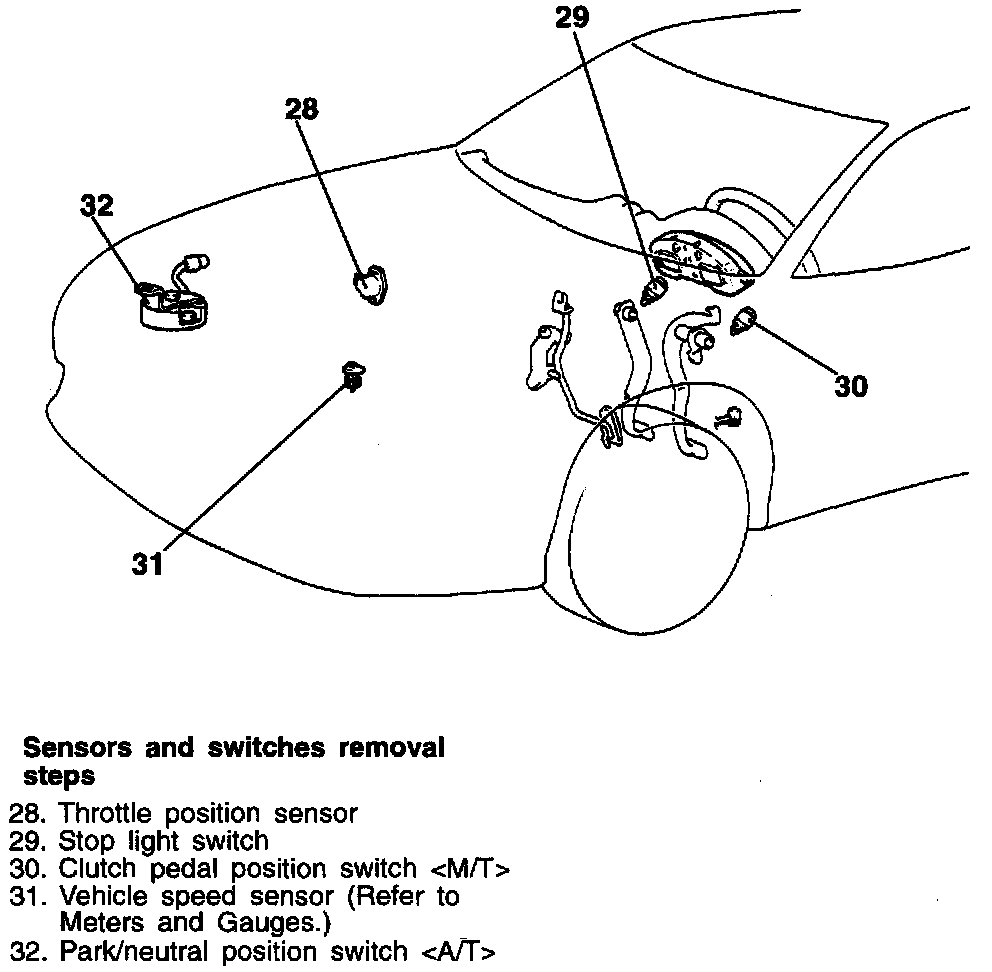

Part 3 of 3
